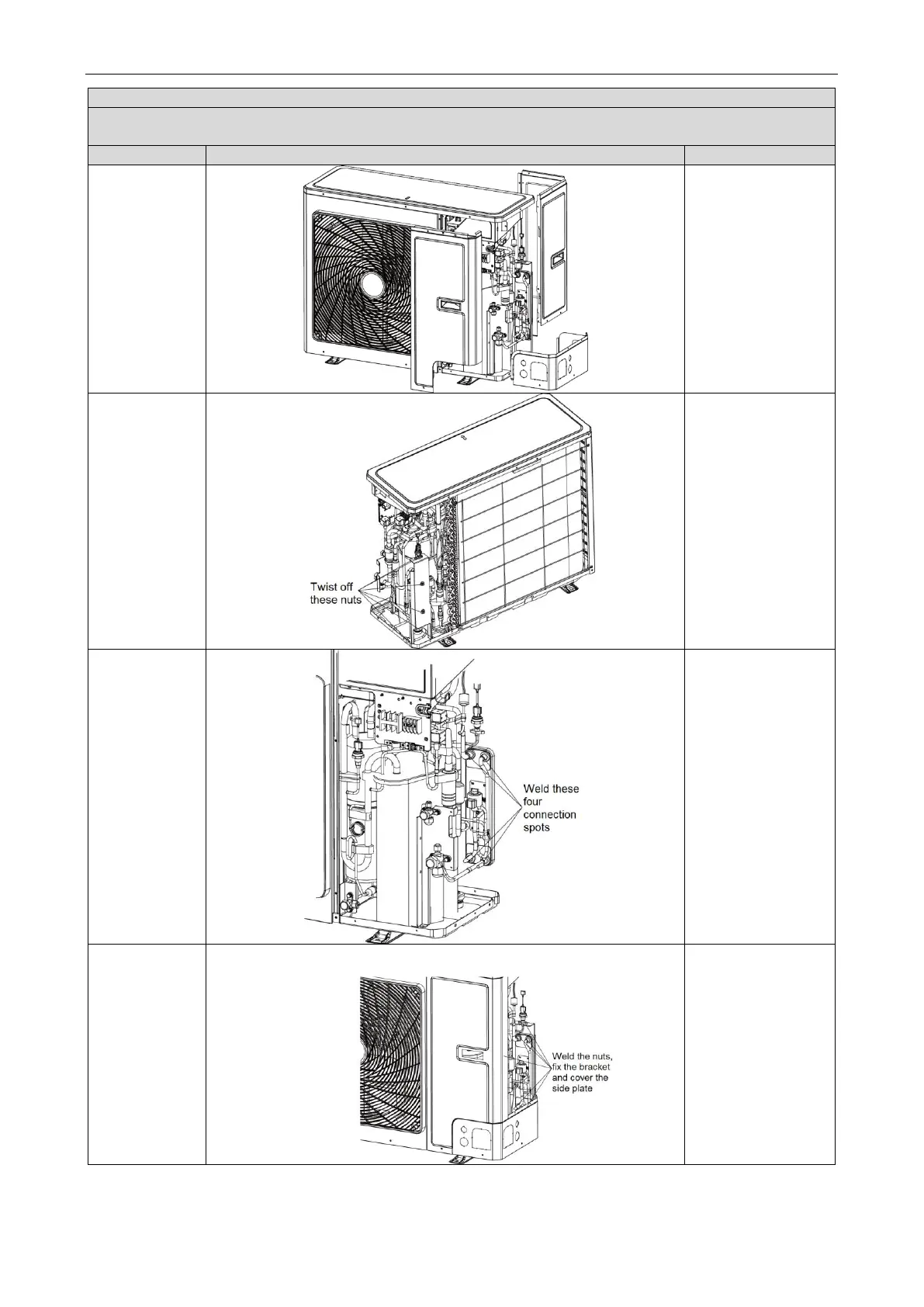

Removal operation for plate heat exchanger
Remark: Before removing the plate heat exchanger, please make sure that there’s no refrigerant inside the pipeline of
system and disconnect the power
Process
Operation Instruction
1. Remove top
cover, back
plate and right
plate
●Twist off the nuts
fixing the plate,
remove front plate
firstly, then remove
right plate, and
remove back plate
finally
2.Remove the
bracket of plate
heat exchanger
● Twist off the nuts
fixing the bracket of
plate heat exchanger
3. Weld those 4
connection
spots on the
plate heat
exchanger, and
then pull out
plate heat
exchanger
●Weld those 4
connection spots on
the plate heat
exchanger, and then
pull out the
connection pipe.
Note: During welding
process, do not let
flame burn out other
parts
4. Replace new
plate heat
exchanger
● Weld the pipe
connected with plate
heat exchanger
Note: During welding
process, do not let
flame burn out other
parts
