Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
136
Pump
Step
Diagram
Operation
Procedure

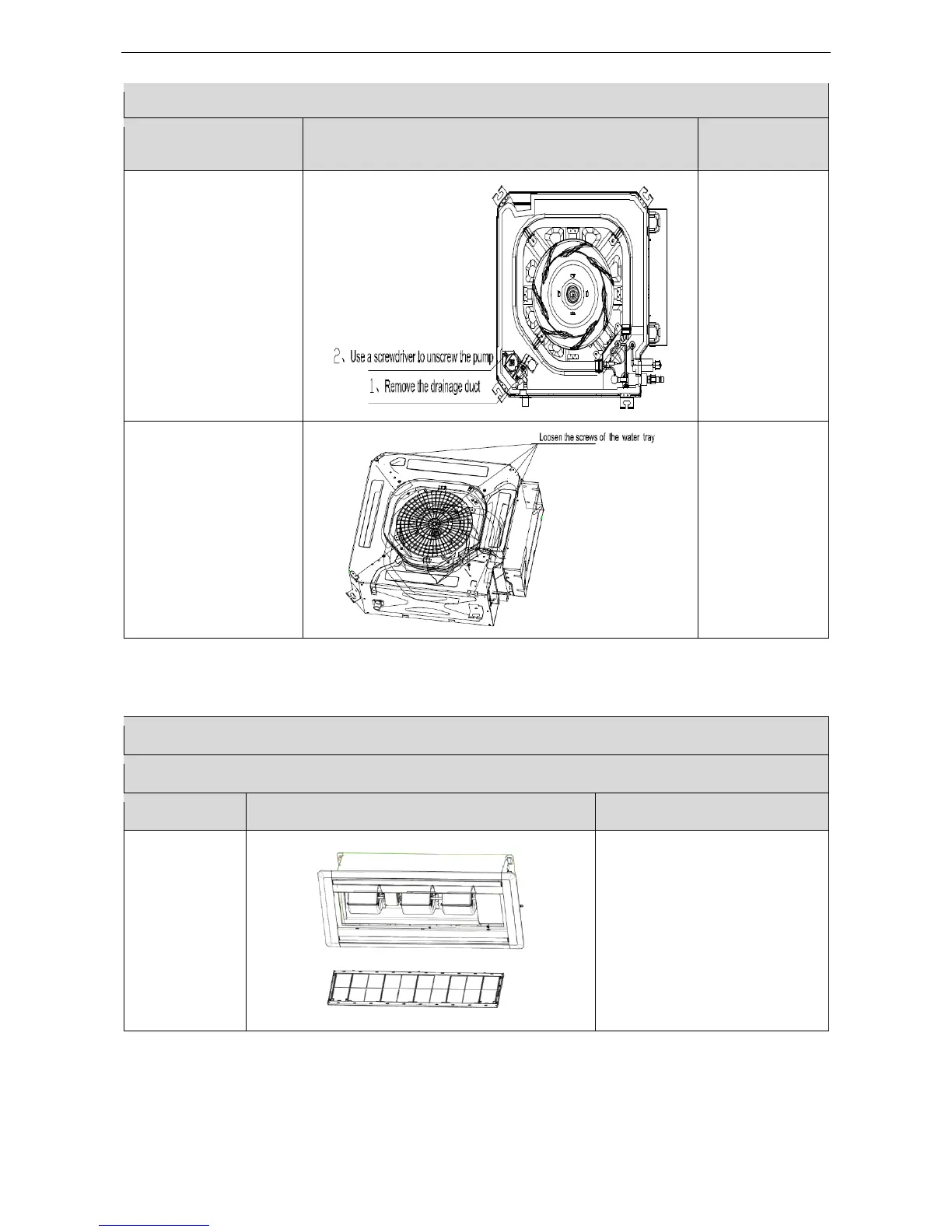

5. Connect the
drainage duct and
screw the new pump.
●Connect the
drainage duct
and use a
screwdriver to
screw the new
pump.
6. Install and screw the
water tray.
●Use a
screwdriver to
screw the water
tray.
4.6 2-way Cassette Type
Note: The following steps are specific for GMV-ND50TS/A-T units. For other units, the assembly and
disassembly procedure is similar except the numbers of centrifugal fans and motors.
Removal of Fan Motor
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
1．Remove
the grille
●Slip the fasteners on the
panel, open the grille, remove it
