5.9 Fresh air Processing Unit

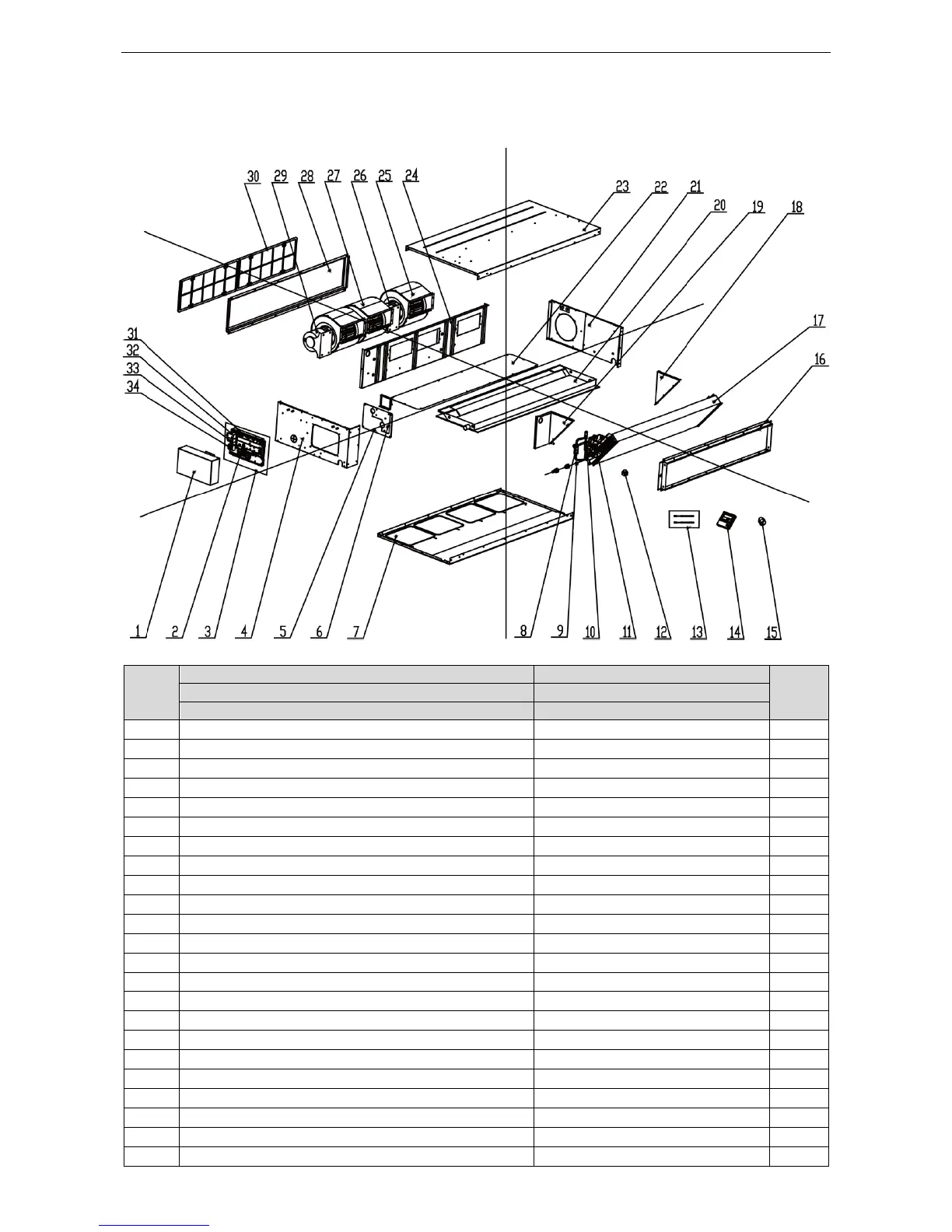

Exploded View of GMV-NX140P/A(X1.2)-K：
NO.
Model
GMV-NX140P/A(X1.2)-K
Qty.
Product Code
CM800N3610
Part Name
Part Code
1
Electric Box Cover
01424100071
1
2
Terminal Board
42011106
1
3
Electric Box Assy
01394100199
1
4
Left Side Plate Assy
01314100058
1
5
Seal Of Left Side Plate Sub-Assy
01495212
1
6
Seal Of Connection Pipe
01495213
1
7
Bottom Cover Plate Assy
0125860301
1
8
Strainer
0741410000601
1
9
Filter Sub-Assy
07210028
1
10
Electronic Expansion Valve
07334412
1
11
Filter
07415210
1
12
Electric Expand Valve Fitting
4304413219
1
13
Sensor sub-assy
39004167G
1
14
Display Board
30296106
1
15
Choke Plug of Water Pipe
76712454
1
16
Border Plate of Air Outlet Sub-Assy
01374100036
1
17
Evaporator Assy
01024100061
1
18
Evaporator
01805221
1
19
Left Evaporator Support
01804100006
1
20
Water Tray Assy
01285229
1
21
Right Side Plate Assy
01308679
1
22
Cover Of Air-In
01258602
1
23
Top Cover Board Assy
01264625
1
