Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
153
NO
Model
GMV-ND100L/A-T
GMV-ND140L/A-T
Qty
Product Code
CM300N0060
CM300N0070
Part Name
Part Code
Part Code
16
Air Guard Assy
01354100012
01354100012
1
17
Cover of Pass Wire slot
01744109
01744109
1
18
Pass Wire slot
02164010
02164010
19
Protective Covering
01474027
01474027
1
20
Propeller Housing
12104057
12104057
1
21
Chassis
22224020
22224020
1
22
Centrifugal Fan
10314401
10314401
1
23
Fan Motor
1501442502
1501442502
1
24
Evaporator Sub-Assy
01034024
01034054
1
25
Electronic Expansion Valve
07334468
07334468
1
26
Filter Sub-Assy
07210028
07210028
2
27
Strainer
07213050
07213050
28
Right Side Plate Sub-Assy
0130451801
0130451801
1
29
Rear Cover
2224422101
2224422101
3
30
Baffle Plate
2611408801
2611408801
3
31
Rear Plate Sub-Assy
01304500
01304500
1
32
Right Air Guard
01364507
01364507
1
33
Electronic Expansion Valve Fitting
4304413219
4304413219
1
34
Left Air Guard
01364506
01364506
35
Top Cover Sub-Assy
01364506
01364506
1
36
Breakwater Sub-Assy
01364154P
01364154P
1
37
Water Tray Sub-Assy
12314811
12314811
1
38
Left Side Plate Sub-Assy
0130451901
0130451901
39
Sensor Sub-Assy
39008000115G
39008000115G
1
40
Temp Sensor
34030048
34030048
1
41
Remote Controller
30510589
30510589
1
Above data is subject to change without notice,pls reference the SP in global service website.

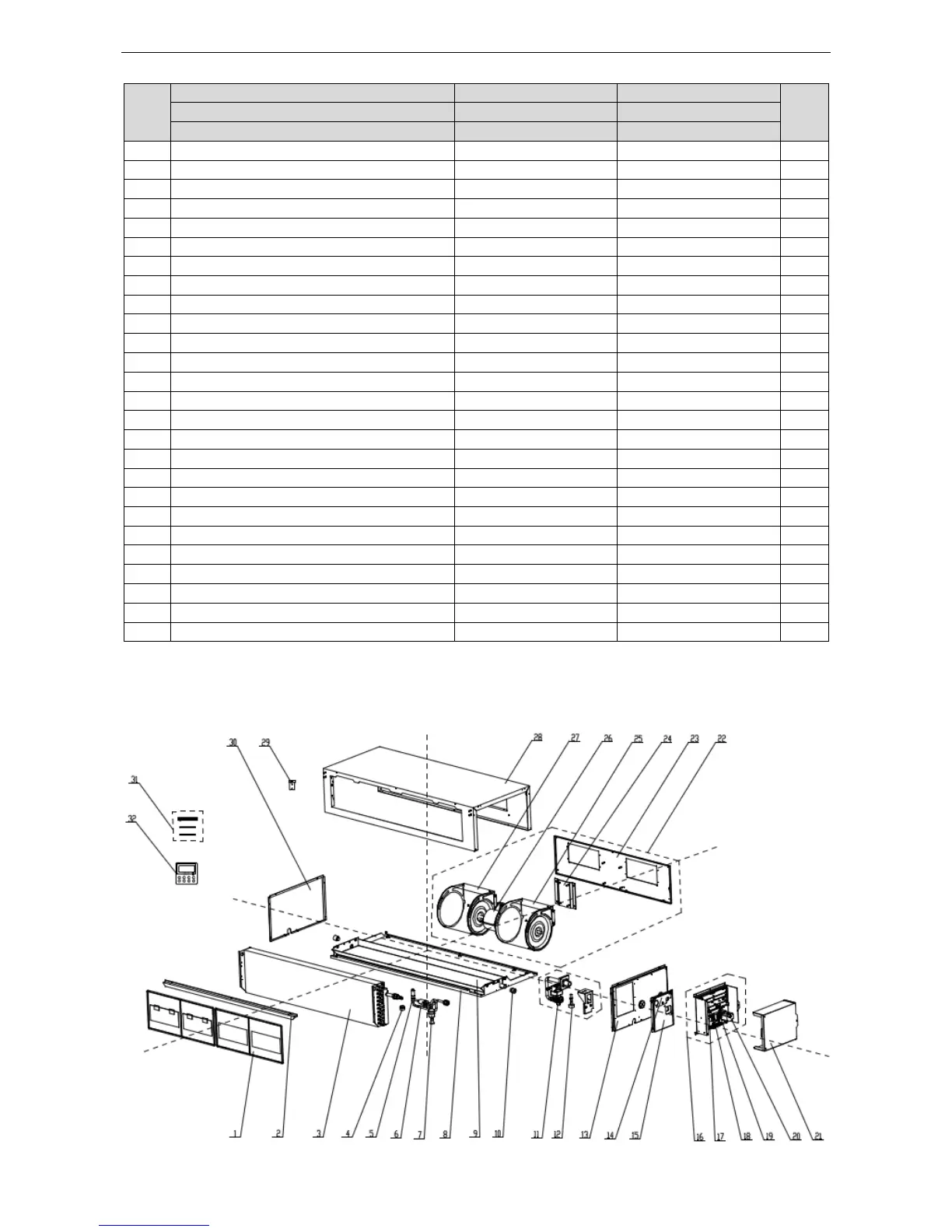

5.2 High Static Pressure Duct Type
Exploded View of GMV-ND56PHS/A-T、GMV-ND63PHS/A-T、GMV-ND71PHS/A-T、GMV-ND80PHS/A-T：
