5 Exploded Views And Part List
5.1 Floor Standing Type

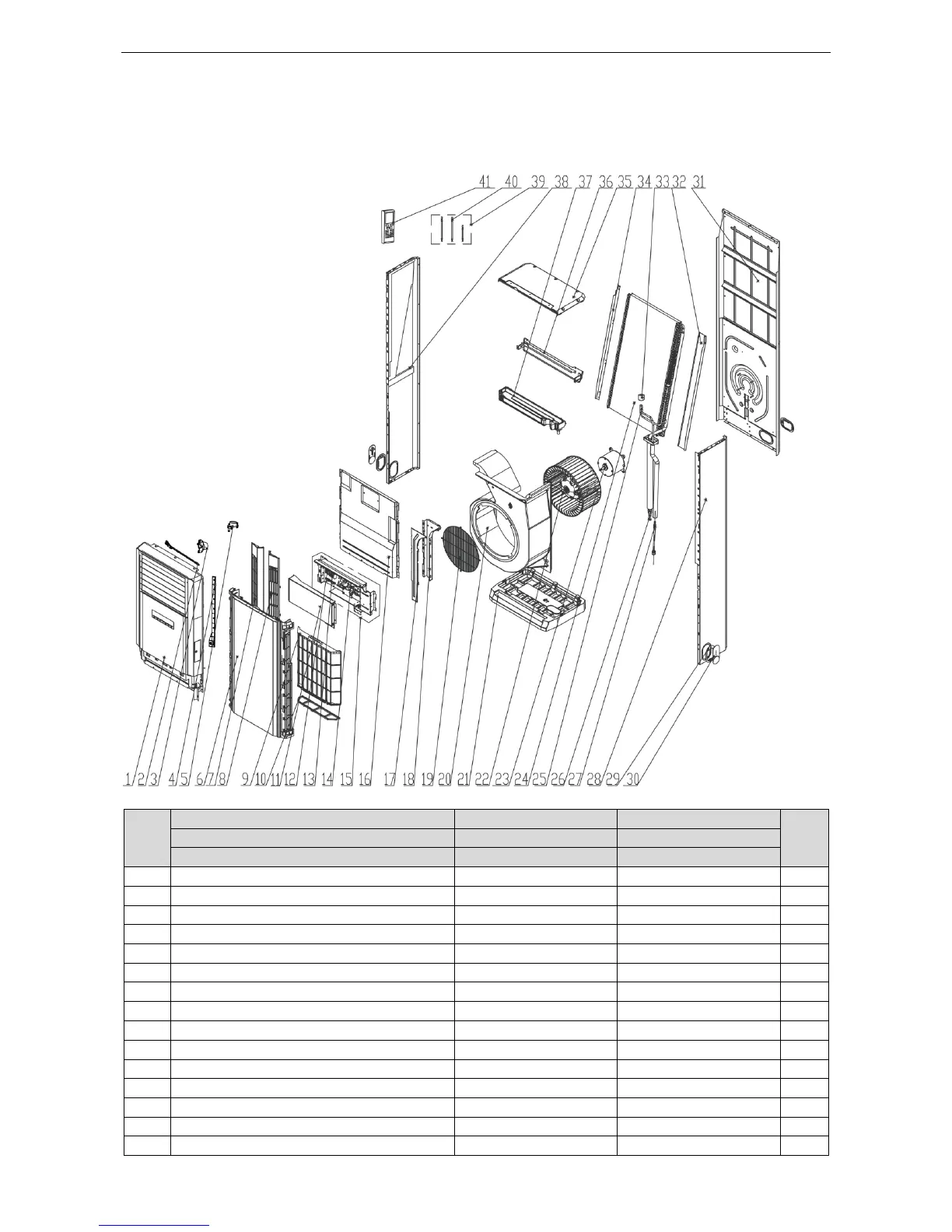

Exploded View of GMV-ND100L/A-T, GMV-ND140L/A-T
NO
Model
GMV-ND100L/A-T
GMV-ND140L/A-T
Qty
Product Code
CM300N0060
CM300N0070
Part Name
Part Code
Part Code
1
Air Outlet Panel Assy
20004505
20004505
1
2
Swing Lever
10584218
10584218
1
3
Stepping Motor
15214005
15214005
1
4
Guide blade Lever
10584089
10584089
1
5
Stepping Motor
1521400803
1521400803
1
6
Air Intake Panel Assy
20004536
20004536
1
7
Left Side board
0130451901
0130430401
1
8
Right Side Plate of Air Inlet
0130451801
0130430301
1
9
Filter Sub-Assy(Upper )
11124100
11124100
1
10
Filter(Lower)
11124012
11124012
2
11
Electric Box Cover Sub-Assy
01404388
01404388
1
12
Terminal Board
42010259
42010259
1
13
Terminal Board
4201800002601
4201800002601
1
14
Main Board
30226000004
30226000004
1
15
Electric Box Assy
02404122
02404122
1
