MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)

150

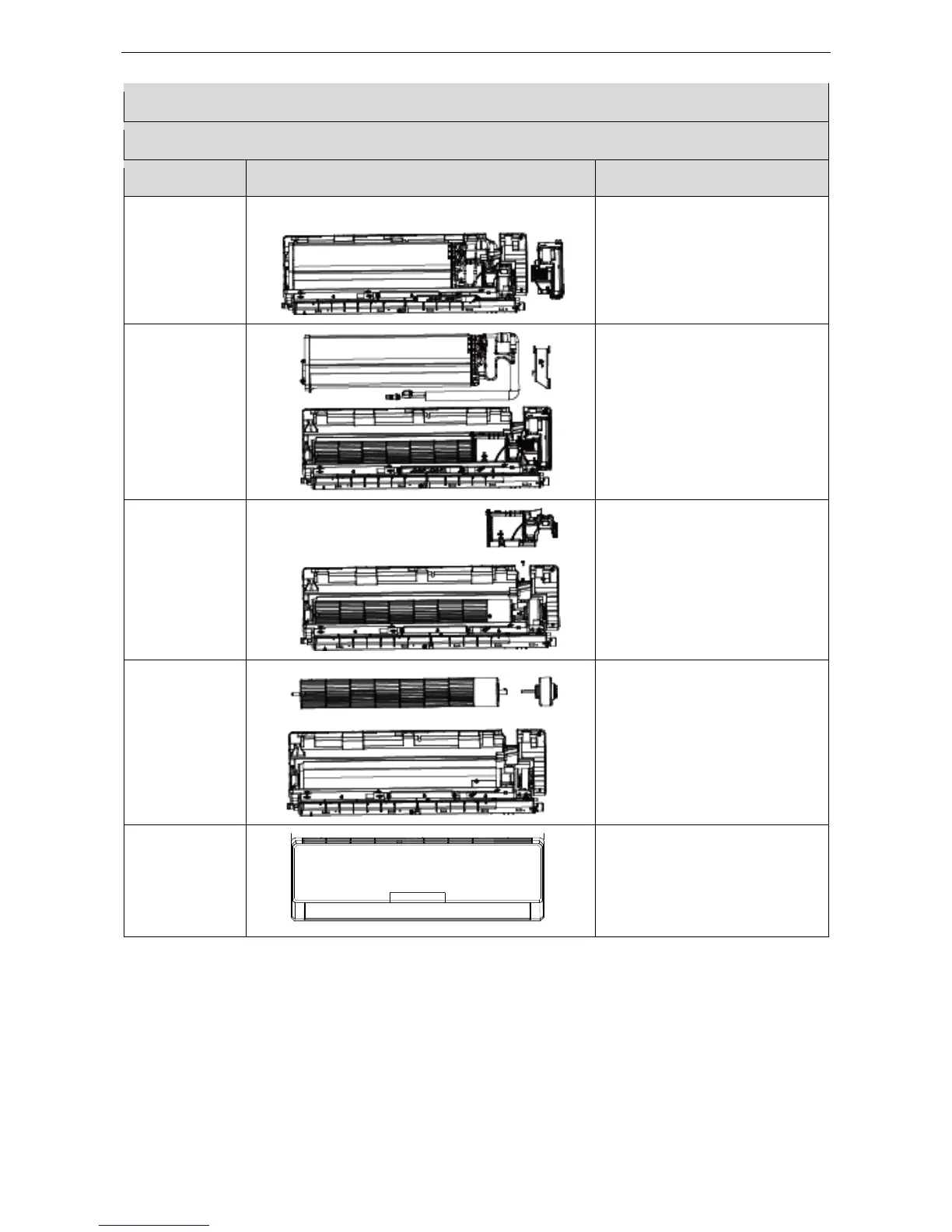

Removal of Fan Motor

Remark: before removing, making sure power is disconnected.

Step

Diagram

Operation Procedure

7. Remove the

electrical box

●Unscrew the screws fixing the

electrical box with a screwdriver.

●Remove the electrical box.

8. Remove the

evaporator

●Use a screwdriver to unscrew the

screws fixing the press plate of

connection pipe on the back of the

unit and take off the press plate.

●Unscrew the screws of evaporator

with a screwdriver and then remove

the evaporator.

9.Remove

motor’s pressing

plate

●Unscrew the fixing screws of the

pressing plate with a screwdriver and

then remove it.

10. Remove the

motor and fan

●Take off the motor and fan directly.

●Use a screwdriver to unscrew the

screws connecting the motor and the

fan.

11. Install a new

motor.

●Assemble units based on the

reverse order of this procedure and

power on the units for test.
