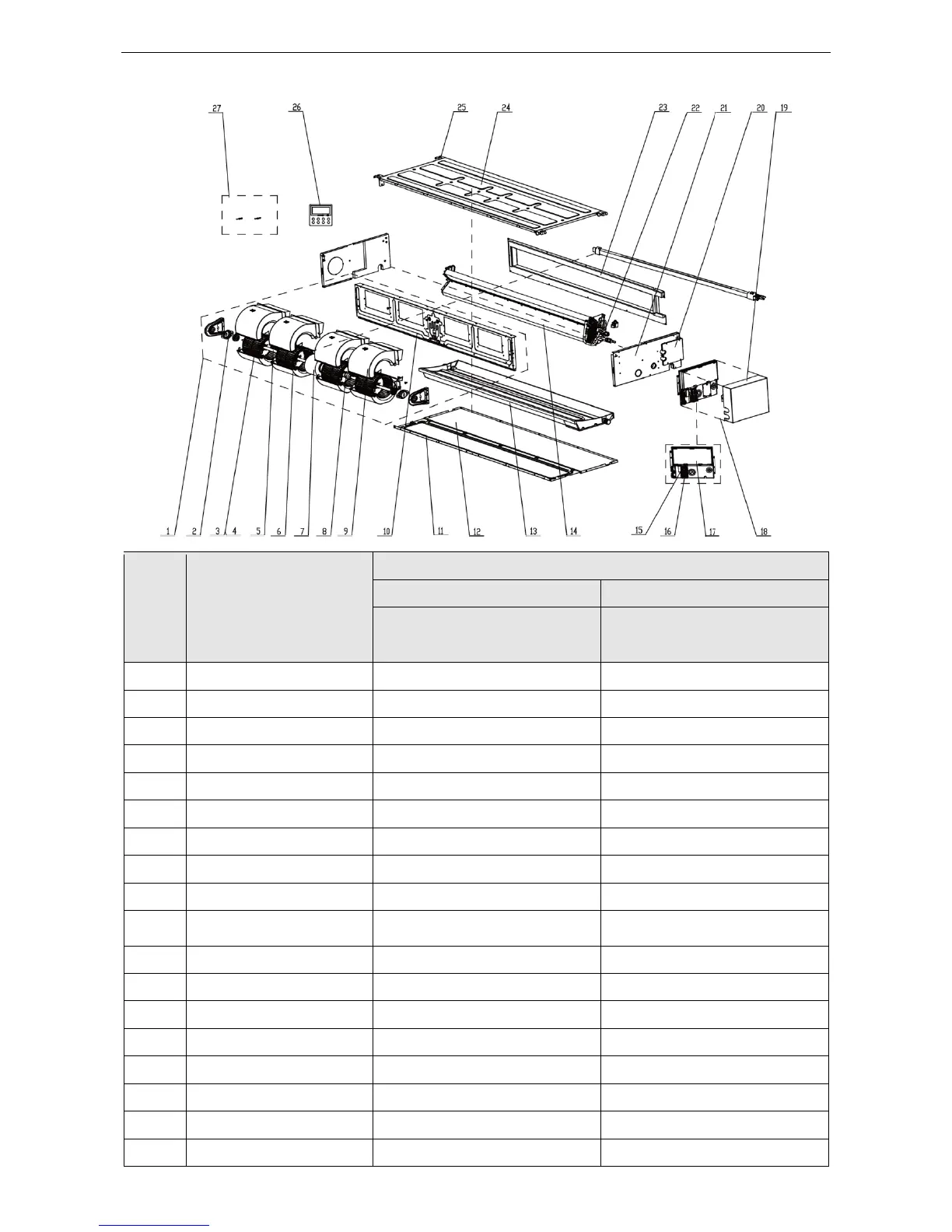

Exploded View of GMV-ND72PL/B-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND72PL/B-T
CM800N3600
Part code
Quantity
1
Centrifugal fan assy
` 15404100032
1
2
Bearing Holder Sub-assy
` 26151139
2
3
Centrifugal Fan
` 10425200003
4
4
Fan Bearing
` 76512210
1
5
Rotary Axis Sub-Assy
` 73018761
2
6
Propeller Housing(Lower)
` 26905200019
4
7
DC brushless motor
` 15704100001
1
8
Joint Slack
` 73018731
2
9
Propeller Housing(Upper)
` 26905200018
4
10
Blower Mounting Plate Sub-
Assy
` 01325200053
1
11
Cover Of Air-in
` 01265200085
1
12
Bottom Cover Plate Assy
` 01265200093
1
13
Water Tray Assy
` 01285200029
1
14
Evaporator Assy
` 01024100076
1
15
Terminal Board
` 42011106
1
16
Terminal Board
' 4201800002601
1
17
Main Board
` 30226000029
1
18
Electric Box Assy
` 01394100241
1
