6.4 Product variants and components overview
There are several product variants with different additional
hydraulic components:

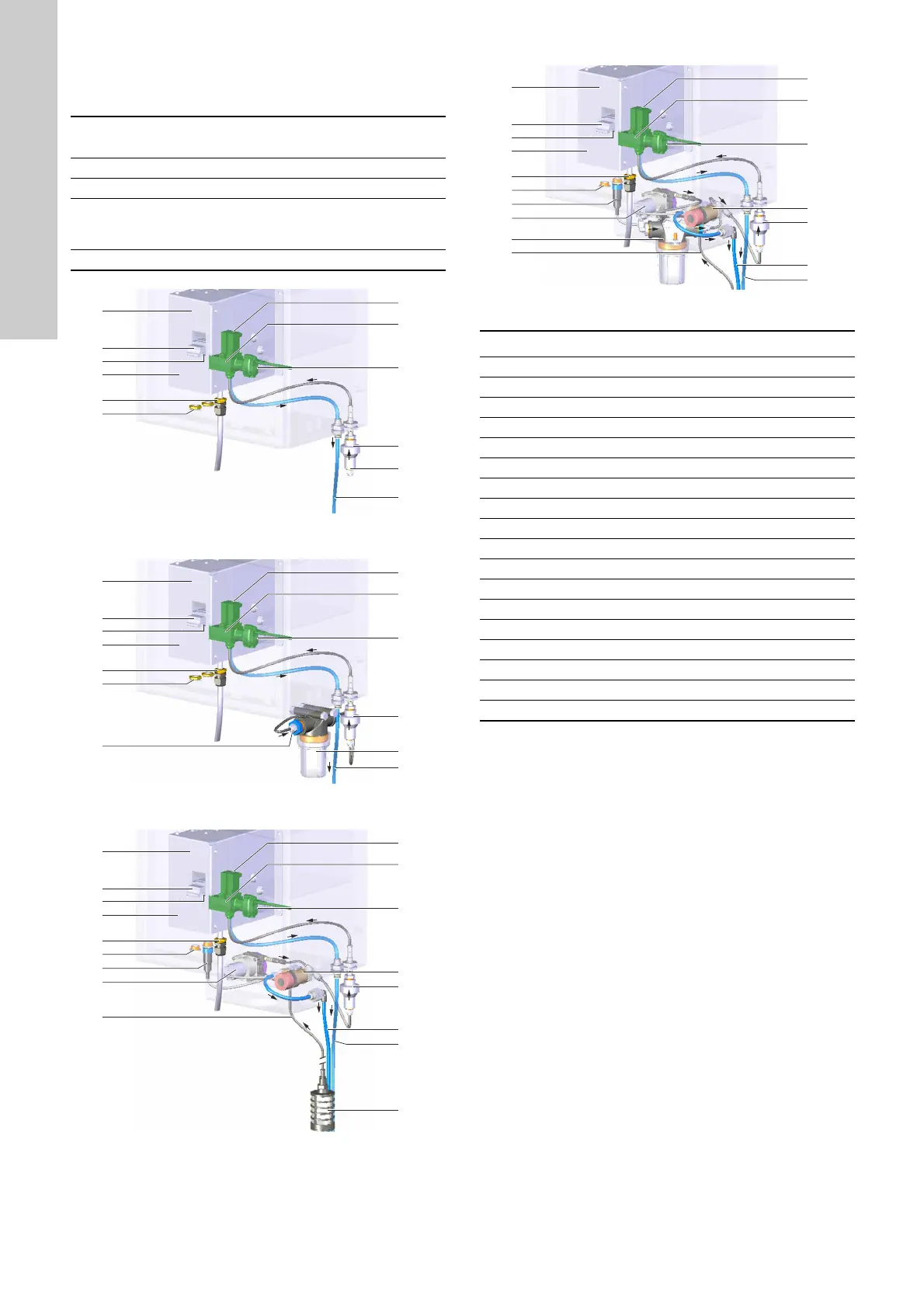

Fig. 5 Components overview, variant A
Fig. 6 Components overview, variant B
Fig. 7 Components overview, variant C
Fig. 8 Components overview, variant D
BACMON
variant
Pump
module
Prefilter
module
Suction
filter
See fig.
A - - -5
B -
■
- 6
C
■
-
Optional.
See pos.
17 in fig. 7.
7
D
■■
- 8
TM06 6391 3516TM06 6680 3516TM06 6681 3516
1
2
4
18
7
8
10
9
5
6
13
3
1
2
4
18
9
5
6
7
8
10
11
13
3
1
2
4
18
13
14
15
9
5
6
7
8
16
10
12
17
3
TM06 6682 3516
Pos. Description
1 Camera unit with flow cell
2 Flow cell lock
3 Flow cell
4 Front cover
5 Solenoid valves
6 Flow cell manifold
7 Pressure and temperature sensor
8 Pressure reducing valve
9 Water inlet
10 Water outlet
11 Prefilter module
12 Overflow line
13 Extension antenna cable gland
14 Electrical connection of pump
15 Pump
16 Pressure relief valve
17 Suction filter
18 Power supply
1
2
3
4
18
13
14
15
9
11
5
6
7
8
16
10
12
