Installation
3.1 Mechanical Installation
Install in an environment that is protected from corrosive fluids.
3.1.1 Controller Dimension Illustrations

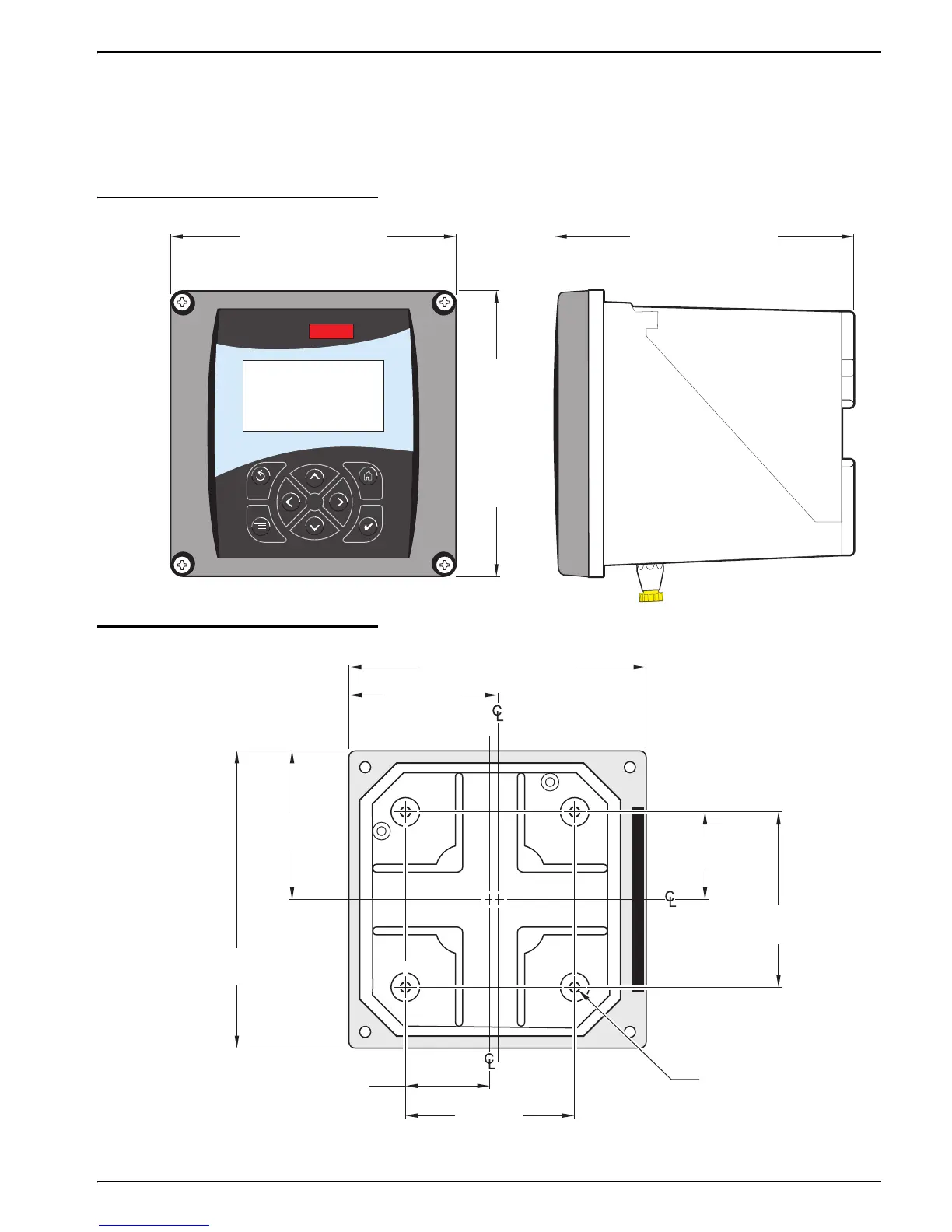

Figure 3 Controller Dimensions
Figure 4 Controller Mounting Dimensions
sc100
144.0 mm (5.67 inches) 150.0 mm (5.91 inches)
144.0 mm (5.67 inches)
80.27 mm
(3.16 inches)
144.02 mm (5.67 inches)
80.27 mm
(3.16 inches)
144.02 mm
(5.67 inches)
72.01 mm
(2.84 inches)
72.01 mm
(2.84 inches)
40.14 mm (1.58 inches)
M6 x 1.0
40.14 mm
(1.58 inches)
