25

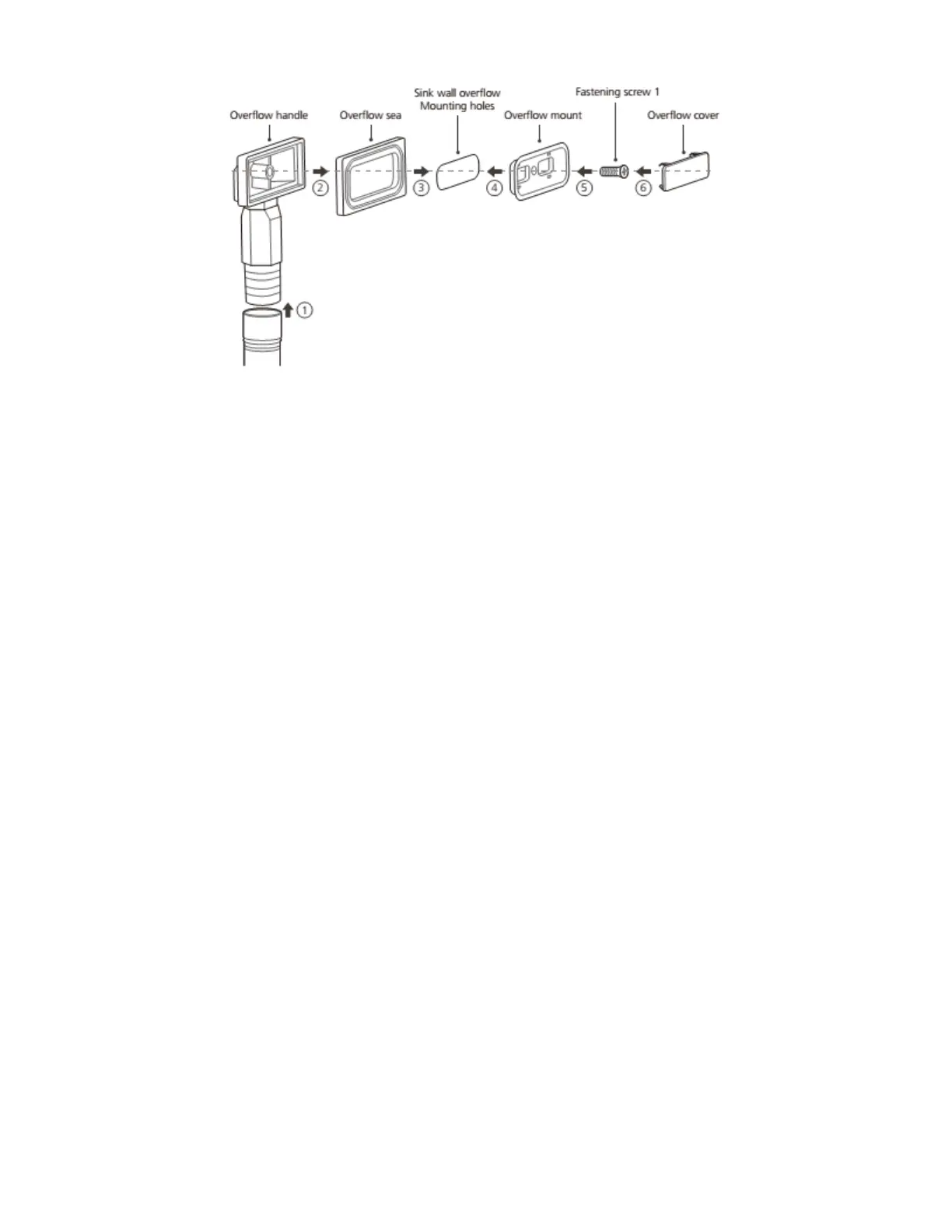

Installation shallow tank overflow
1. Connect the overflow pipe to the overflow pipe joint, and the overflow pipe must be
pressed to the end.
2. Overflowing the sealing ring.
3. Press the overflow device onto the overflow mounting hole on the back of the sink.
4. Pressing the overflow mount to the front of the sink overflow mount.
5. Secure the overflow with the matching fastening screws;
6. Install the overflow cover.
Connect drain/overflow pipe to dishwasher:
1. Install the clamp into the drain/overflow tube first;
2. Then pipe the drain/overflow pipe to the interface;
3. Clamp the clamp with a clamp clamp.
Connect the inlet pipe:
1. Tighten the inlet nut to the machine in the direction of the arrow
2. The inlet pipe connection on the side of the unit.
