4 - System setup
4.81

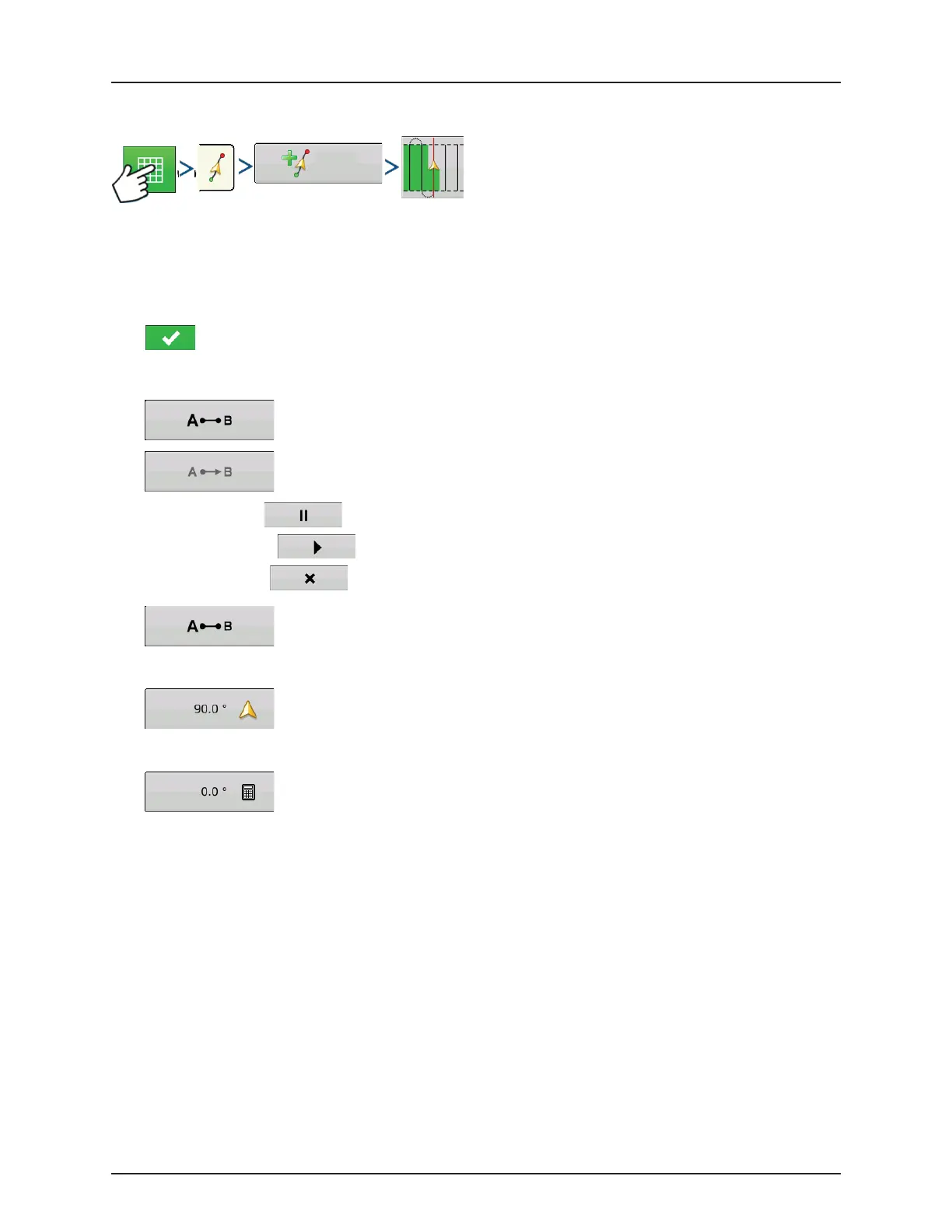

New Pattern - Straight
Select Pattern
System defaults pattern type to last used. Press the pattern icon to select a different pattern.
• Implement Width (from Implement Setup)
• Guidance Width input box
• Enable Tramlines check box
Press . You will automatically return to the Map screen.
Create AB line using 2 points
• Press to mark point A. A green ball appears on the map screen where point was placed.
• Button is greyed out until you drive a minimum of 100 feet (30 meters).
• Pause - Press to pause path during path creation
• Resume - Press to resume path during path creation
• Cancel - Press to cancel path during path creation
• Press to mark point B. The AB line appears on the map screen and point B is marked with a red
ball.
Create AB line using Current Location and Heading
• uses current location and heading, line extends 1 mile (1.6 km) before and after the A point
(recommend vehicle having forward motion to get a good heading).
Create AB line using Current Location and Inputting Heading
• uses current location and input heading, line extends 1 mile (1.6 km) before and after the A
point
Patterns are automatically saved when the vehicle turns for the first time. For more information see “AutoSave” on page 4.89.
÷
NOTE! On straight AB lines, if you complete a swath that is longer than the previous one, the display automatically
extends the guidance path for the following swaths.
