4 - System setup
4.67
Virtual Terminal
Virtual Terminal together with HC 8500/HC 9500
The following has to be set up in both the HC 8500/HC 9500 software and into the VT-software:
• Boom width (VT menu 3.3.1).
• Number of sections (VT menu 3.3.2).
• Number of nozzles per section (VT menu 3.3.3).
General info about Virtual Terminal
The display is compatible with the ISO 11783 (ISOBUS) Virtual Terminal Standard. This enables support of many ISOBUS
compliant implements on the display. Virtual Terminal functionality enables the compliant implement’s user interface to be
viewed and controlled on the display.
Common Terminology
±
WARNING! Before operating an ISOBUS implement with the display, read the operator’s manual provided by the
implement’s manufacturer, e.g. HARDI® and follow all safety information provided in the manual. When this display is
used with an ISOBUS implement, the information and functions on the display are provided by the implement ECU
and are the responsibility of the implement manufacturer.

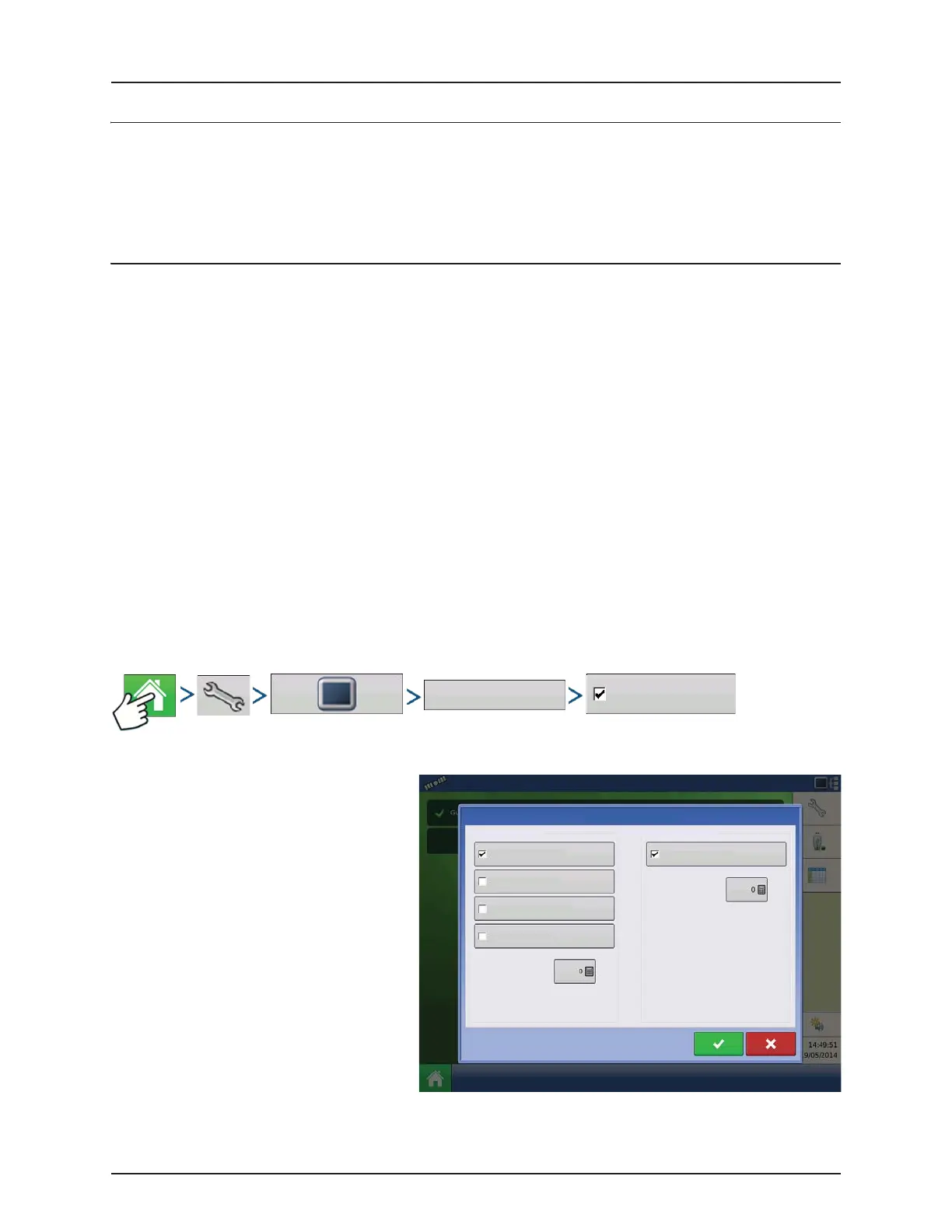

To enable the Virtual Terminal:
ISOBUS Settings
ISOBUS Working Set One or more ISOBUS modules that control an implement’s functionality.
Working Set Master (WSM) Main module responsible for coordinating all communication between the VT and the
Working Set including loading of the Object Pool to the VT screen.
Object Pool Defines graphical components that ISOBUS modules present on a compatible display.
ISOBUS Settings
Enable Virtual Terminal
Enable Virtual Terminal
Broadcast GPS Speed
Auxiliary Module Support
Enable Task Controller
Virtual Terminal Task Controller
Function Instance
Function Instance
ISOBUS Settings
Use 480 Mask Size
To Next Page
