3 - Description
3.2

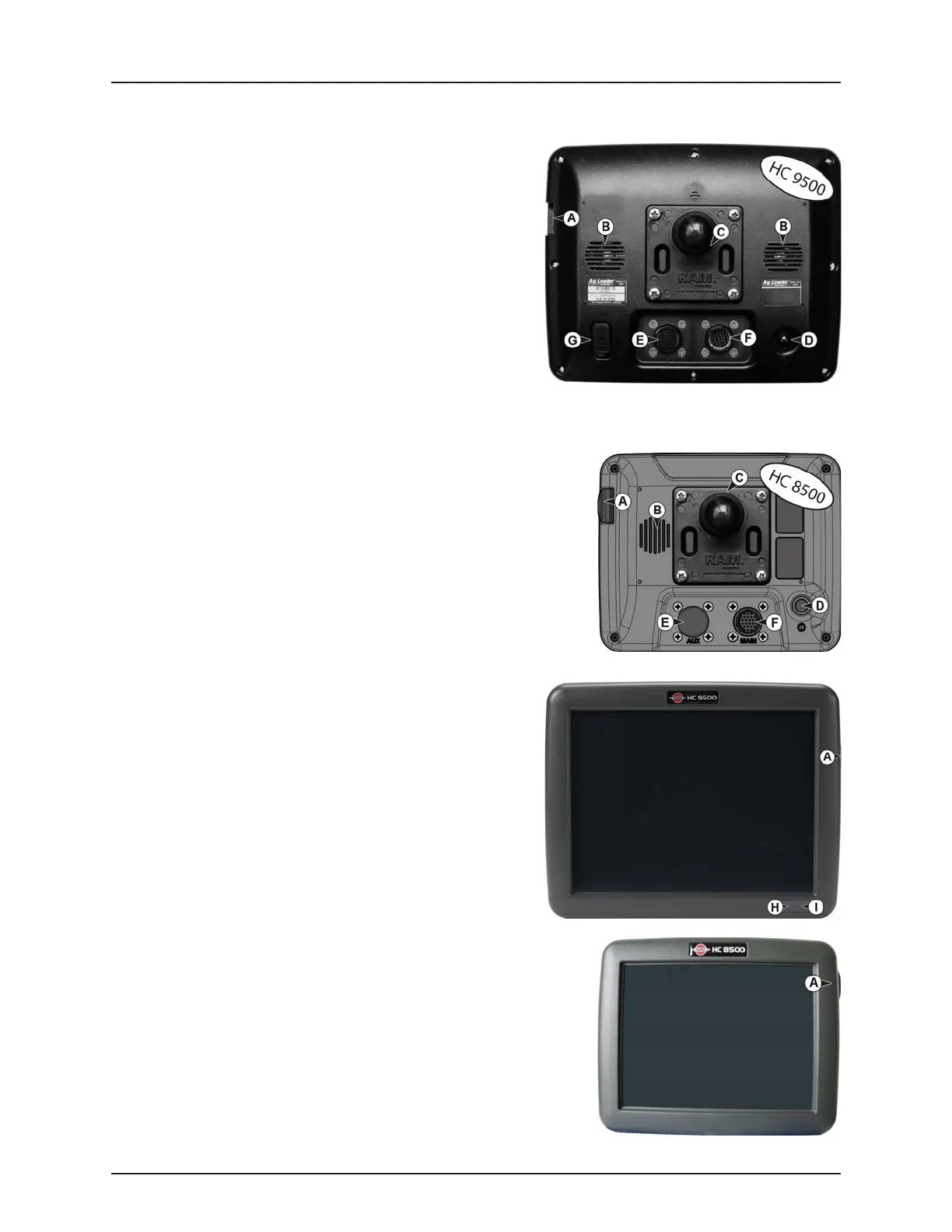

Display Hardware
Rear side
A. USB media slot
Used for data transfer in and out of the display.
B. Speaker
The built-in speaker is used for audible warnings. The volume can
be adjusted through the display setup routine.
C. RAM mount
D. Power/Reset switch
The Power/Reset switch is used for turning the display on and off
in installations where the system is connected to a continuous
power supply.
If the display ever stops responding, the manual power switch may
be held in for five seconds to restart the system. Only do this as a
last resort, data loss could occur during times of improper
shutdown.
E. 28-pin auxiliary connection
Used for camera input.
F. 28-pin plug
The 28-Pin round display connector contains CAN, RS-232 serial, and system
power and ground connections. It is compatible with some certain other
displays. Ethernet for ParaDyme automated steering is included in
connection.
G.
VGA video output (not HC 8500)
Can be used to connect to a video projector for demonstration purposes.
Front side
A. USB media slot
Used for data transfer in and out of the display.
H. Light sensitivity sensor (not HC 8500)
Used to automatically dim the display during nighttime or low-
light situations.
I. Power light (not HC 8500)
The power light displays one of three states:
Green = ON
Pulses amber = Standby Mode
Solid amber = Running on battery power
