Making Connections
Connect IR Equipment

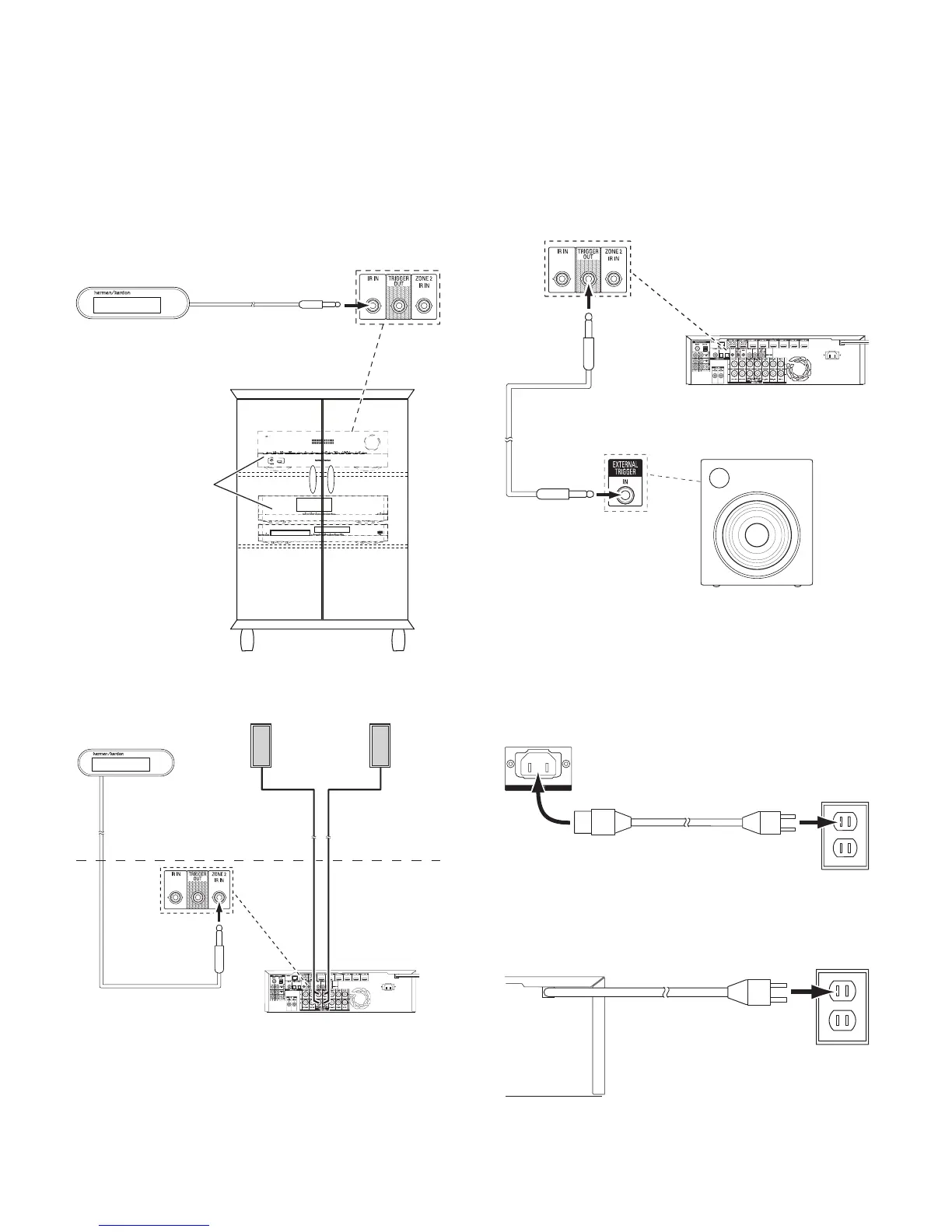

The AVR is equipped with a Remote IR Input connector that lets you remotely control the
AVR in a variety of situations:
When you place the AVR inside a cabinet or facing away from the listener, connect •
an external IR receiver, such as the optional Harman Kardon HE 1000, to the AVR’s
IR In jack.
AVR IR In Jack
External IR
Receiver
AVR and Source Devices
Installed Inside of Cabinet
If you install a multizone system (AVR 1710/AVR 171 only), connect an IR control •
device to the Zone 2 IR In connector for remote-room control of the multizone
system, source devices and volume in the remote zone.
External IR Receiver
Zone 2
Main Room
Zone 2 Speakers
AVR
If a source device is shared with the main listening area, any control commands issued
to that source will also affect the main room.
Connect the Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR’s Trigger Out connector with a mono 1/8-inch (3.5mm) mini-plug interconnect
cable. The AVR will supply a 12V DC (100mA) trigger signal at this connection whenever
it is powered on.
AVR
Device with
Trigger In Connector
Mono 1/8-inch (3.5mm)
Mini-Plug Interconnect
(not supplied)
Connect to AC Power
AVR 171/AVR 161:
Connect the supplied AC power cord to the AVR’s AC Input connector and then to a
working, non-switched AC power outlet.
AC Power
Outlet
AVR
AC Input
Connector
Power Cord (supplied)
AVR 1710/AVR 1610:
Connect the AVR’s power cord to a working, non-switched AC power outlet.
AVR
Power Cord
AC Power
Outlet
