Harman PC45 User Manual

18PC 45 Corn/Pellet Stove
3-90-02686R29_05/14
6
4
5
2
3
1
H
L
L
H
( WARNING ) HIGH VOLTAGE
Disconnect power before opening cover.
MAX.
CORN
TEST
POWER
STATUS
DISTRIBUTION
COMBUSTION
BLOWER
BLOWER
FEED MOTOR
IGNITER
6
2
7
1
3
4
5
75°
90°
85°
80°
70°
65°
60°
55°
50°
OFF
R
O
O
M
T
E
M
P
S
T
O
V
E
T
E
M
P
AUTO
MANUAL
IGNITER
F
E
E
D
A
D
J
U
S
T
E
R
P
E
L
L
E
T
O
N
L
Y
C
O
R
N
-
P
E
L
L
E
T

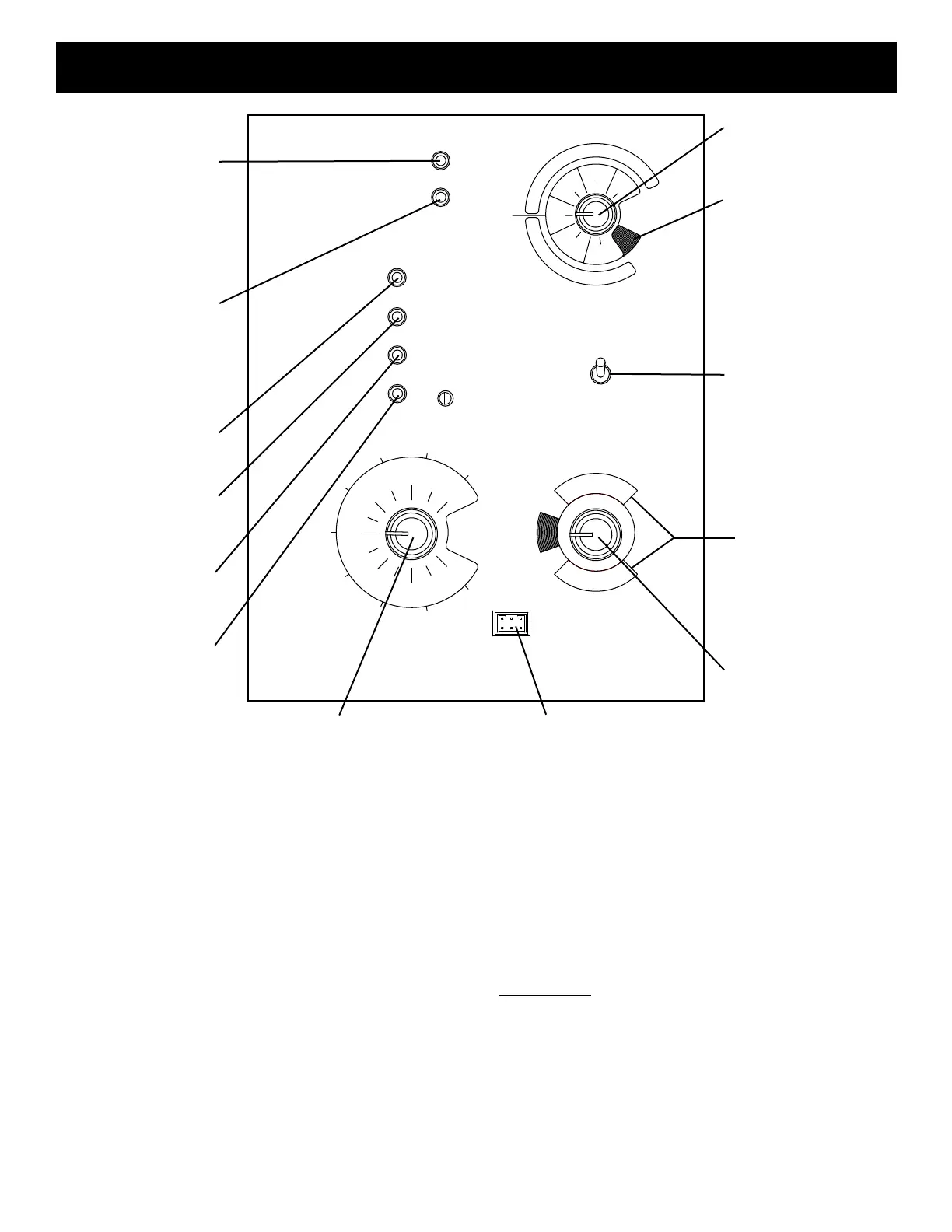

ESP Control
Feed adjuster
Sets the maximum feed
rate.
Test
Runs all motors at full
speed for one minute
to check operation.
Afterward the combustion
blower will go to minimum
and stay there.
Distribution Blower
speed adjustment
range.
L = low
H = high
Variable speed anywhere
between L and H; although
as the stove temp. goes
up, so does the L and H
scale.
Temp dial
Allows you to adjust the room temperature in Room Temp Mode
using the outer scale marked in degrees Fahrenheit. It also allows
you to adjust the stove temperature while in Stove Temp Mode using
the inner scale marked from 1 to 7.
Mode Selector
Allows you to choose
between Room Temp
Mode, Stove Temp Mode,
or OFF. Also allows you
to vary the distribution
blower speed by turning
the knob to the high or low
side of each mode.
Power Light
Indicates power to the
control.
Indicates power to the
Feed Motor.
Indicates Igniter is on.
Indicates power to
Combustion Blower.
Status Light
Will be lit in either stove
or room temp mode when
pointer is not within off
position band except after
normal shut down. Blinks
to indicate errors listed
below.
Indicates power to
Distribution Blower.
6 Blinks :Indicatesthatthecontrolhascalculatedpooror
incompletecombustionoccurringformorethan25minutes.
SeeTroubleshootingsectionformoredetails.
Asixblinkstatusmaybesetifthestoveisallowedtorunout
ofpellets.Toreset,turnmodeselectorto"OFF"thenback
ontothedesiredmode.Iftheunitwasnotoutofpellets,see
Troubleshootingsectionformoredetails.
* Manual reset-Disconnectthepowercordforafewseconds
andreconnect.IferrorstilloccurscallyourHarmanDealer.
Status light error message
3 Blinks:IndicatesthattheESP(ExhaustSensingProbe)
hasgoneoutofrangetoomanytimesinaspeciedtime.
Performamanual reset*,Ifthecode returns immediately,
theESPmaybedamagedordisconnected.Otherwise,the
exhaustsystemmayneedcleaned..
4 Blinks: Can occur only in Room Temp Mode and
indicatesRoomSensingProbefailed or not installed. Ifa
RoomSensingProbeistheninstalled,thestatuslightwill
automaticallyreset.
NOTE:Unitwillnotstartin"AUTO"withthisstatuserror.
5 Blinks (In Igniter Auto. Mode Only):Indicatesthattheunit
hasfailedtolightwithinthe45minutestartcycle.Toreset-
TurnModeSelectorto"OFF",thenturntoeithermodeagain.
Dealer Diagnostic Port
For dealer maintenance use only.
Requires special DDM monitor
supplied to Harman Dealers
exclusively.
Igniter switch
Set to appropriate Start-
Up mode.
