12
Dry Seasoned Wood Only!
TL2.6 Woodburning Stove
Save These Instructions3-90-08570
C. Floor Protection Requirements
DANGER: The appliance pedestal or legs may not be
removed for installation.
Minimum Size oor protection (USA) is 50.6" Deep By 32.5"
Wide.

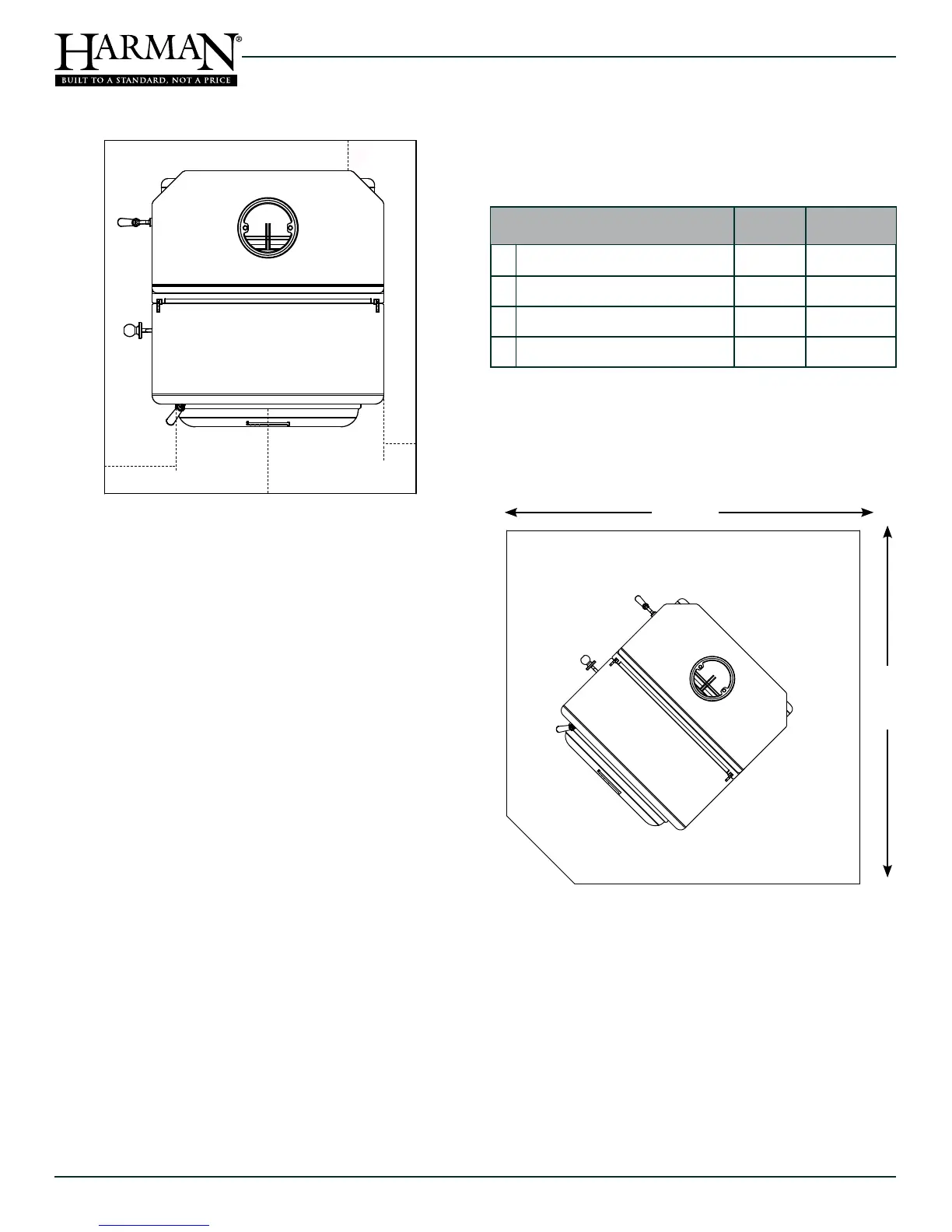

Floor Protection Requirements
If the appliance is being installed on a combustible oor, non-
combustible oor protection must be installed.
When installing the four-legged model (#1-90-858000-1), the
included bottom heat shield must be in place when installing
on a protected combustible oor.
DO NOT BLOCK OR RESTRICT THE AIRFLOW UNDER
THE APPLIANCE.
In all installations, the area under and around the stove must
be protected from falling ash and live coals. The area under a
horizontal run of chimney connector must also be protected,
extending two (2) inches beyond the measurement of the
horizontal connector.
Further guidelines for oor protection are as follows:
In the U.S. the oor protector must be completely under the
stove, and extending 16" in front of the door opening, 8" to
each side of the door opening, and 8" to the back.
In Canada, the oor protection must extend 18" (457mm) in
front of the door opening, and 8" (203mm) to each side of
the appliance, and to the rear.
L
J
Floor Protection
Requirements
Inches Millimeters
Sides- USA /CANADA *
Rear- USA
8 203
8 203
L
Rear- CANADA
Wall Wall
K Front- USA /CANADA *
16 457
* Floor protection dimensions for the front and sides are
measured from the appliance door opening in The United
States. In Canada, the side dimension is measured from the
widest part of the appliance.
Minimum 60" corner oor protection (CANADA).
54"
54"
J
J
K
L
To Next Page
