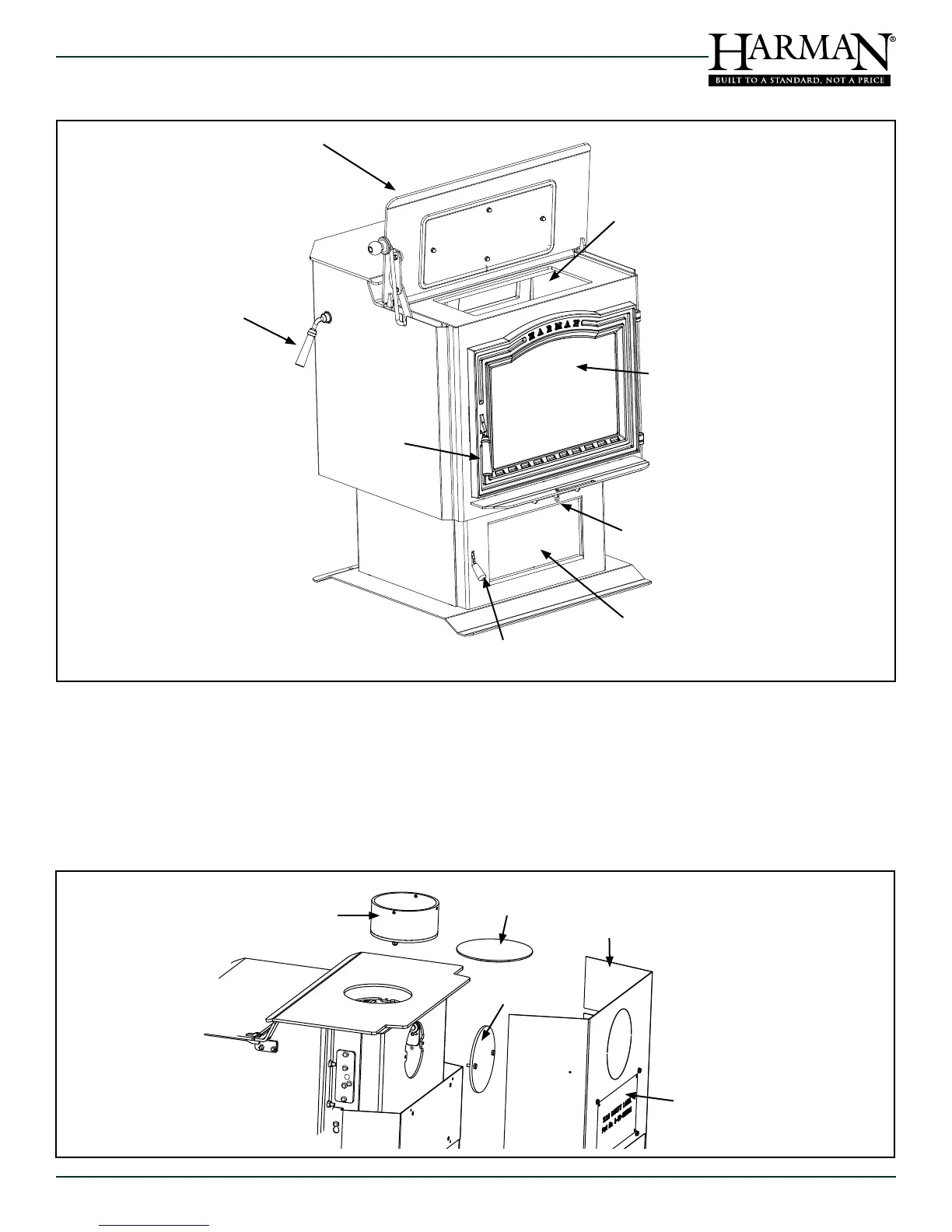

C. Component Locations
Top Load Opening
Air Control
Front Load Door
Top Load Door
Bypass Damper
Control Handle
Ash Door
Ash Door
Latch
Front Load
Door Latch
D. Flue Direction Conversion
The TL2.6 features a convertible ue collar for rear or top vent. Follow these instructions for changing the direction. First,
remove both side shields by removing 2 tek screws each, and loosen 1/4-20 bolts with a 3/8" wrench. Next, take off the
rear shield by removing the four bolts near each corner of the safety label. The ue cover plate and the ue collar have the
same 2-bolt pattern. Switch the two of them by removing the nuts from their bolts. Fill the opening in the outer top by laying
the outer hole cover (1-10-857014) into the opening. The outer hole cover is required if the stove is being changed to a rear
ue. Remove the knockout from the rear shield and re-install it to the body. Install the side shields by rst, hanging them on
the front bolts and then installing two tek screws each, in the rear shield. Remember to tighten the bolts to insure the side
shields do not fall off.
Flue Cover Plate
Rear Shield
Outer Hole Cover
Flue Collar
