USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 15 of 36 MaxFlo VS Pump IS2303VSP2 Rev-B

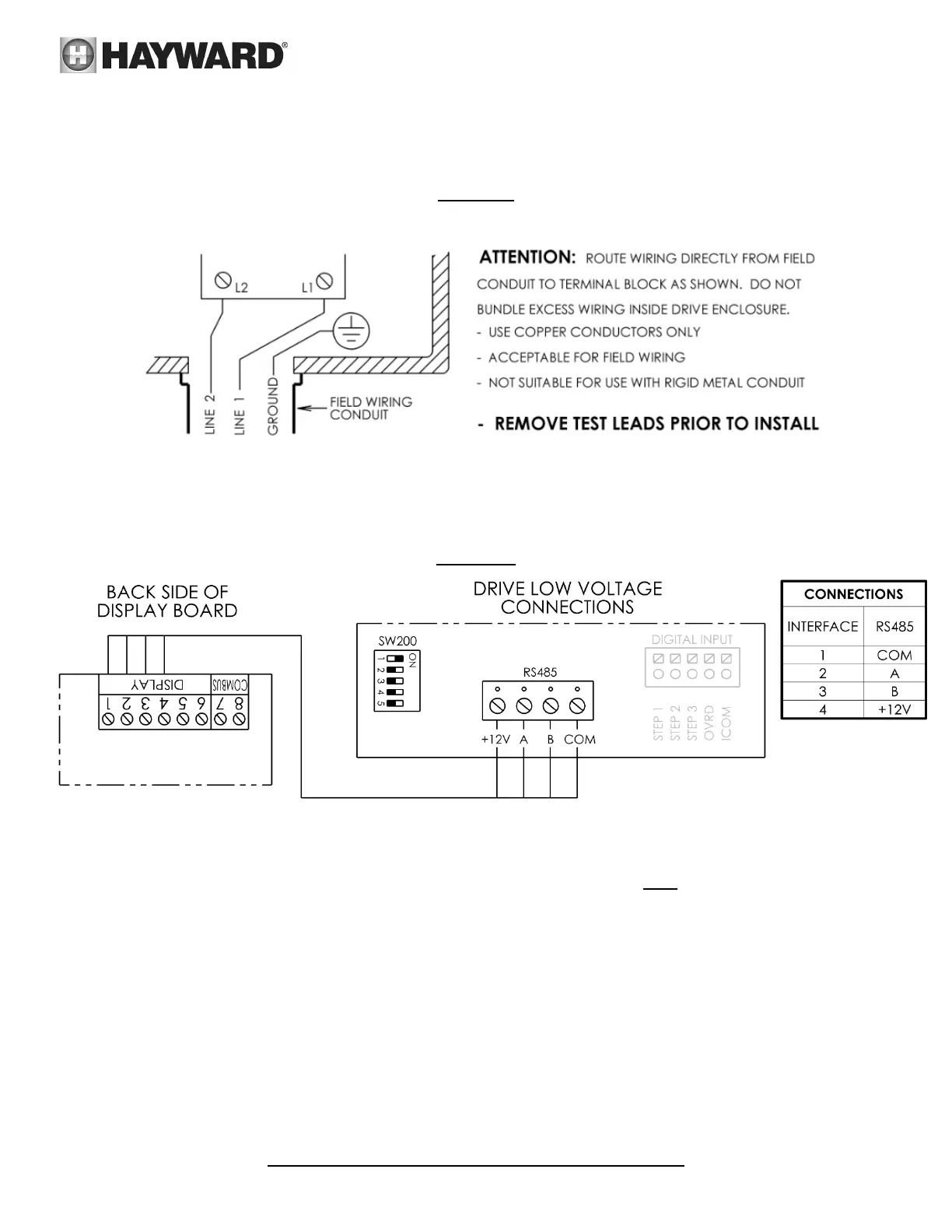

5. Wiring Diagrams
5.1. Input Power Wiring (Required)
Figure 5.1-1
DRIVE HIGH VOLTAGE CONNECTIONS
5.2. Wall Mounted Digital Control Interface Wiring (Optional)
Figure 5.2-1
Connection wire must be rated for a minimum of 300V, and may be up to 500 feet in length. Use removable
4-position terminal block connectors for wiring connection to interface and motor drive PCB’s taking care to note the
wire colors and corresponding numbers next to the connectors. Terminal block must be installed with screws facing
up to ensure proper connection. SW200 DIP switch #1 must be “ON”.
To Next Page
