6.3. User Interface Summary

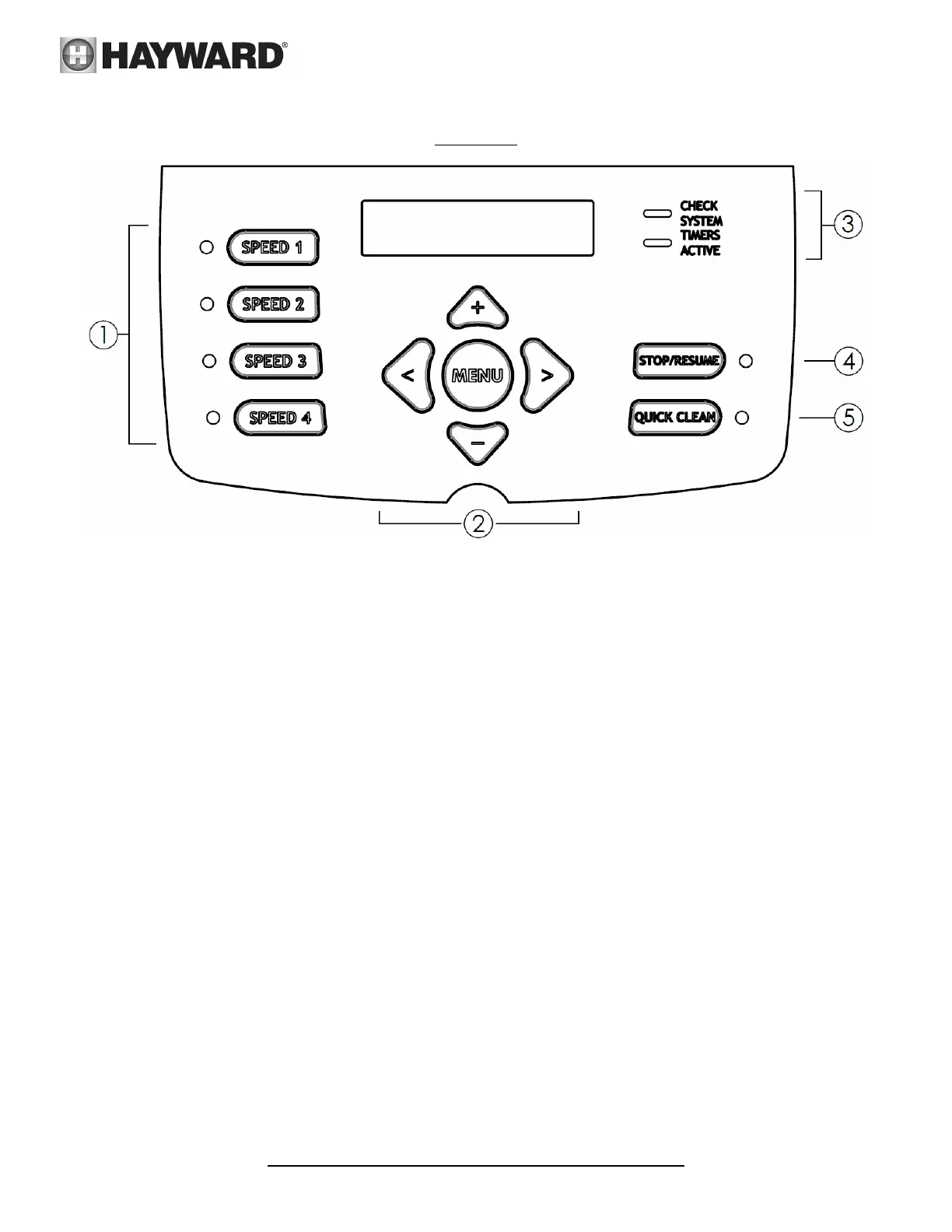

Figure 6.3-1
1. Preset Speeds: Buttons labeled SPEED 1 thru SPEED 4 can be used to run the pump at a predetermined speed
for a certain length of time. Preset Speed settings can be quickly updated using the + and - arrow buttons to
change the speed and then pressing the > button to save the new speed setting. When a speed is selected, the
LED beside the button will illuminate to indicate operation.
a. Default Speeds:
Speed 1: 1000 rpm
Speed 2: 1750 rpm
Speed 3: 2500 rpm
Speed 4: 3250 rpm
2. Menu/navigation buttons: The MENU button will scroll through the setup menus when pressed. The < and >
arrow buttons are used to move between displays and to select parameters to edit, and the + and - arrow
buttons are used to change parameters.
3. Status LEDs: The CHECK SYSTEM LED will illuminate when the pump is experiencing an error condition. The
TIMERS ACTIVE LED will illuminate once timers have been programmed to run the pump, even if the pump is not
presently running.
4. Stop/Resume: This button is used to stop the pump to allow strainer basket cleaning, etc. When this button is
pressed, the pump will remain stopped until the button is pressed a second time to resume normal operation.
When the pump is stopped, the red LED beside the button will illuminate to indicate that the pump has been
stopped.
5. Quick Clean: QUICK CLEAN is a mode intended for use when the pool will be cleaned with a suction side
vacuum.
