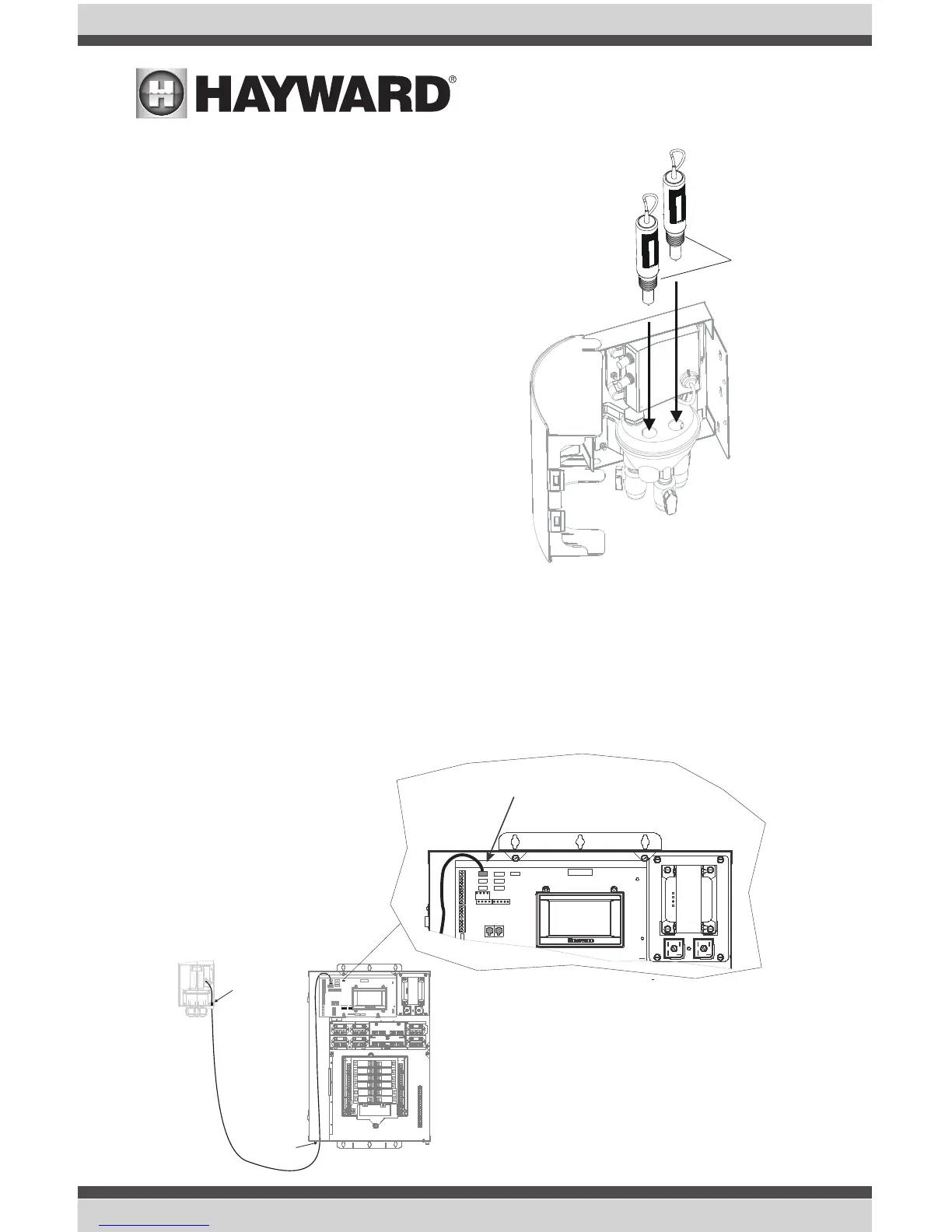

To ensure that the probes continue to remain wet,
fill the Probe Cell with pool water before installing
the probes. Apply a length of plumber's tape to
the probe threads. Hand-tighten the probes only.
At startup, check for leaks. If probe leaks, do not
tighten more—instead remove and re-apply new
Teflon tape.
Wiring the probes to the Probe Cell
Both probes must be wired to the communica-
tion box within the Probe Cell. The probe cables
use typical BNC connectors that attach to the
designated connectors on the communication box.
Refer to the label on the communication box for
the appropriate connections. Push the connectors
in and turn clockwise until locked. After connect-
ing, route the wires in a manner where they will
not interfere with the door of the Probe Cell. Save
BNC connector protective covers for future use.
Connect Probe Cell cable here
Route cable
through
access hole
Route
though
knockout
Wiring the Probe Cell to the OmniLogic
With power off to the OmniLogic, remove the dead front to expose the main board. Route the Probe
Cell cable through an available knockout, along the low voltage channel and make the proper con-
nection to the low speed RS-485 bus (4 pin connector) as shown below. When side mounting the
Probe Cell, route the cable through the access hole at the bottom of the mounting bracket BEFORE
screwing the bracket in place.
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
6
