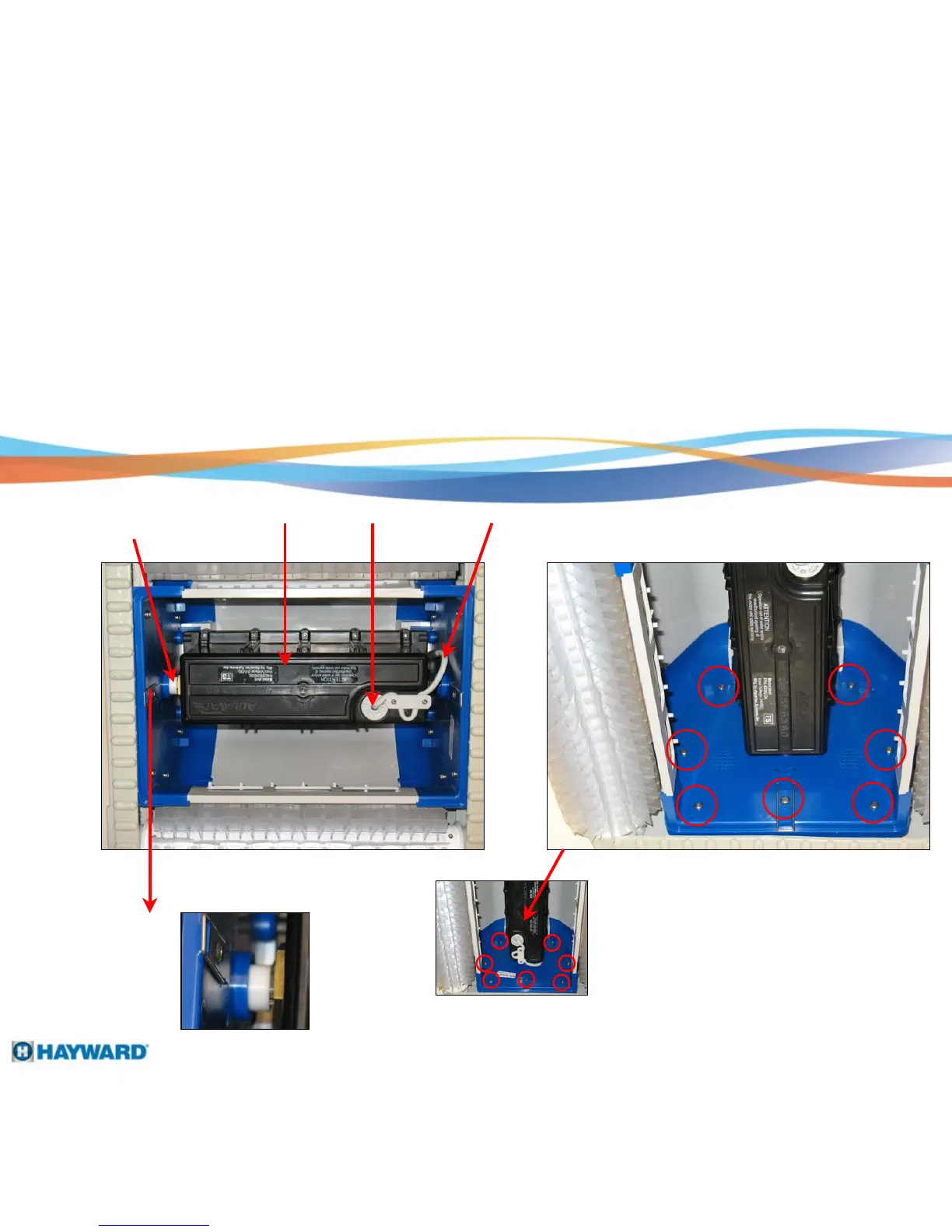

Bottom view with bottom lid

and filter assembly removed.

Motor assembly Power cordMotor output shaft.

Drive end.

7 screws each end to remove

for side plate removal, drive side.

Power cord end, 7 screws.

Note: Use Torx bit and power driver for removal.

Power cord end

Side Cover Removal

Page 11
