Thermal Image Scope User Manual
19
Chapter 6 Aiming Point Settings

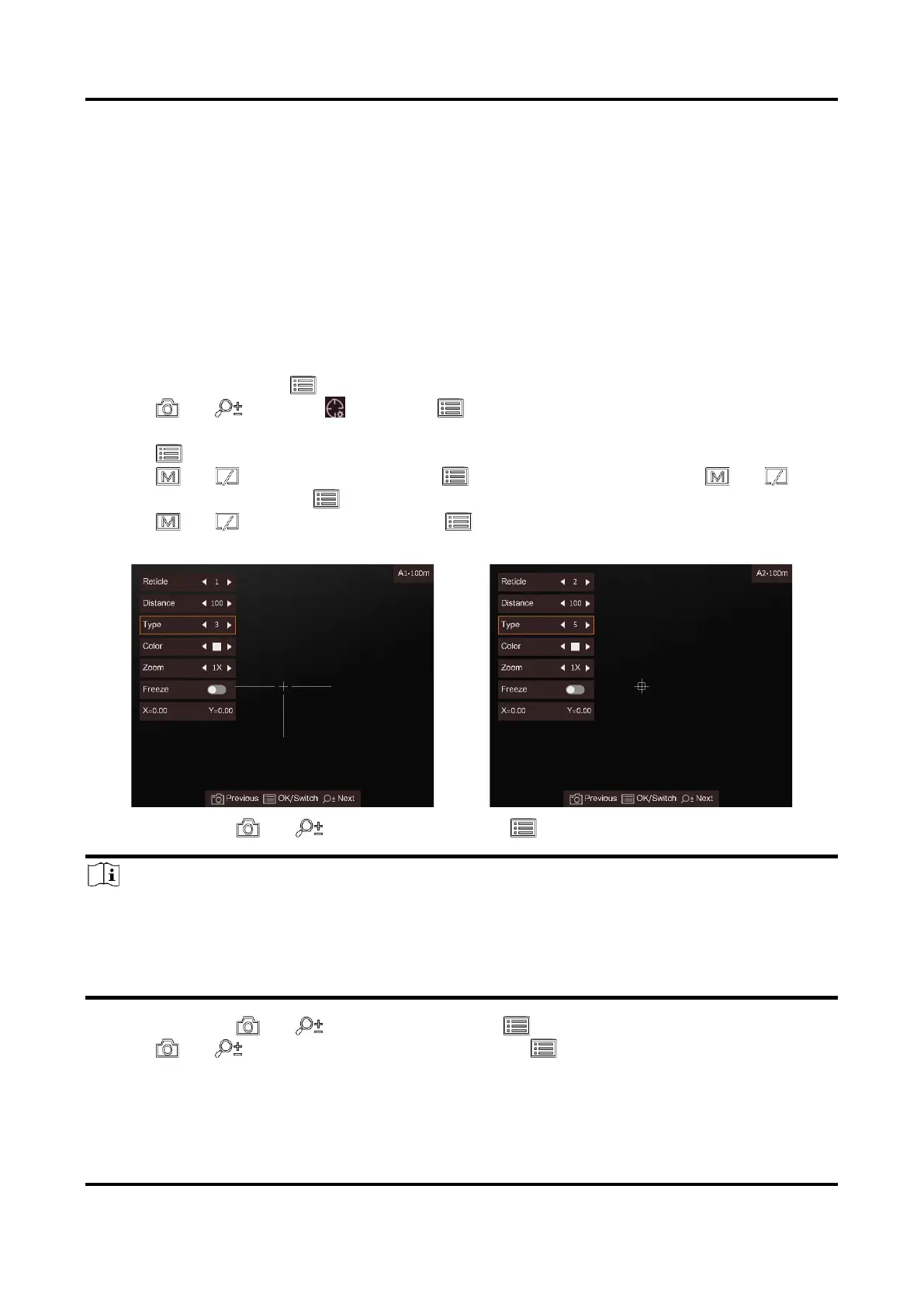

6.1 Correct Reticle
Enable the reticle to view the position of the target. The functions such as freeze and zoom help to
adjust the reticle more accurately.
Steps
1. In the view mode, hold to show the menu.
2. Press or to select , and press to enter the reticle setting interface. A reticle
shows in the center of the view.
3. Press to select a reticle No. You can select OFF to disable the reticle.
4. Press or to select Distance. Press to switch the digit, and press or to
change the number. Press to confirm.
5. Press or to select Type, and press to switch the reticle type. 5 types of reticles
can be selected.
6. (Optional) Press or to select Freeze. Press to enable or disable the function.
Note
When you switch the reticle No., a prompt will appear on the interface. Select OK to save the
parameters for the current reticle.
When enabling the freeze function in reticle, you can adjust the position of the cursor on a
frozen image. This function can prevent image flutter.
7. (Optional) Press or to select Zoom. Press to switch the zoom ratio.
8. Press or to select the coordinates, and press to switch the X and Y axis. If you
select X, the reticle moves left and right; if you select Y, the reticle moves up and down.
To Next Page
