User Manual of IR Network Speed Dome
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

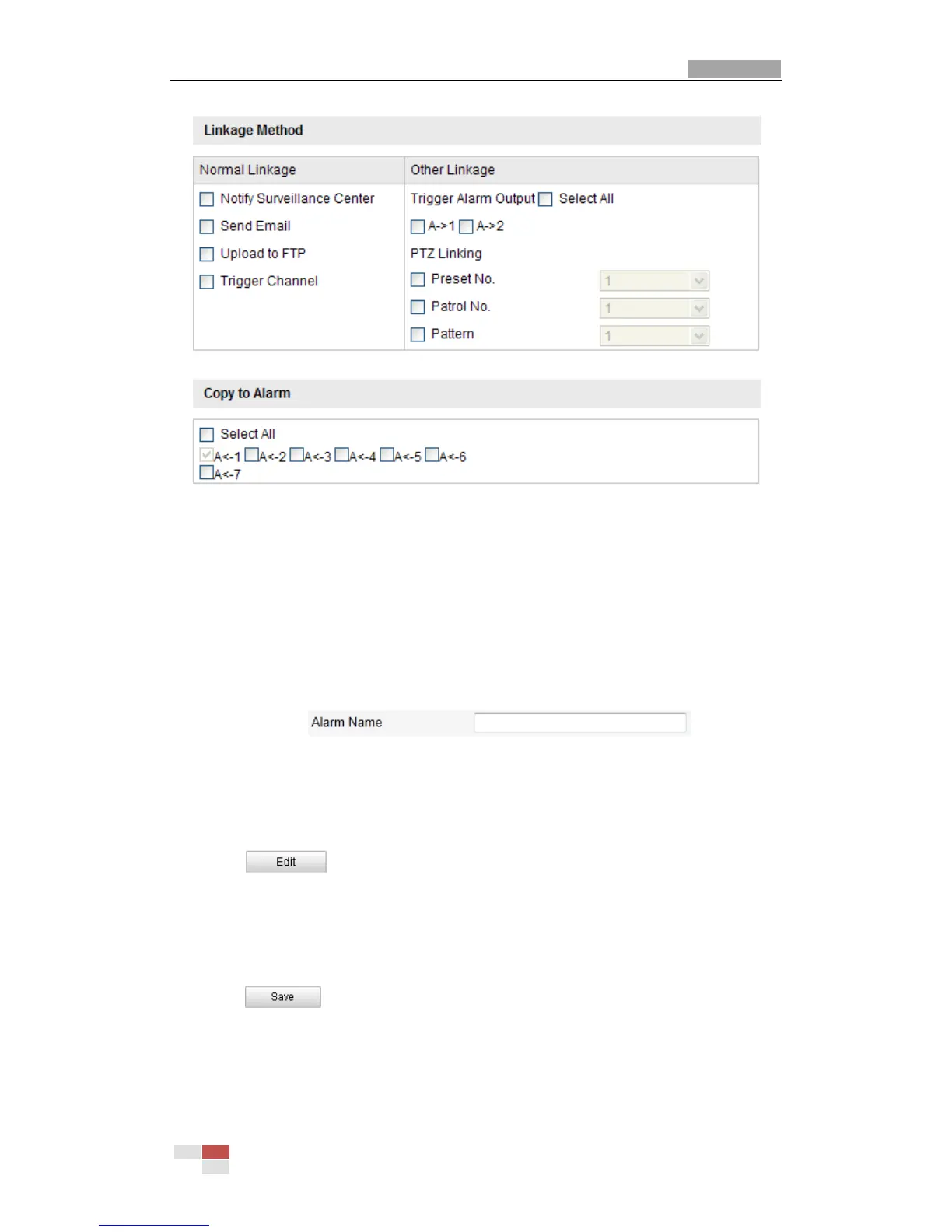

Figure 6-47 Linkage Method
6.6.5 Configuring Alarm Output
Steps:
1. Enter the Alarm Output Settings interface:
Configuration>Advanced Configuration> Events > Alarm Output
2. Select one alarm output channel in the Alarm Output drop-down list.
3. Set a name in for the
alarm output (optional).
4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or
Manual. The delay time refers to the time duration that the alarm output
remains in effect after alarm occurs.
5. Click to enter the Edit Schedule Time interface. The time schedule
configuration is the same as the settings of the arming schedule for motion
detection. Refer to Step 2 Set the Arming Schedule for Motion Detection in
Section 6.6.1 Configuring Motion Detection.
6. You can copy the settings to other alarm outputs.
7. Click to save the settings.
