HIKVISION DS-7108NI-Q1/M User Manual

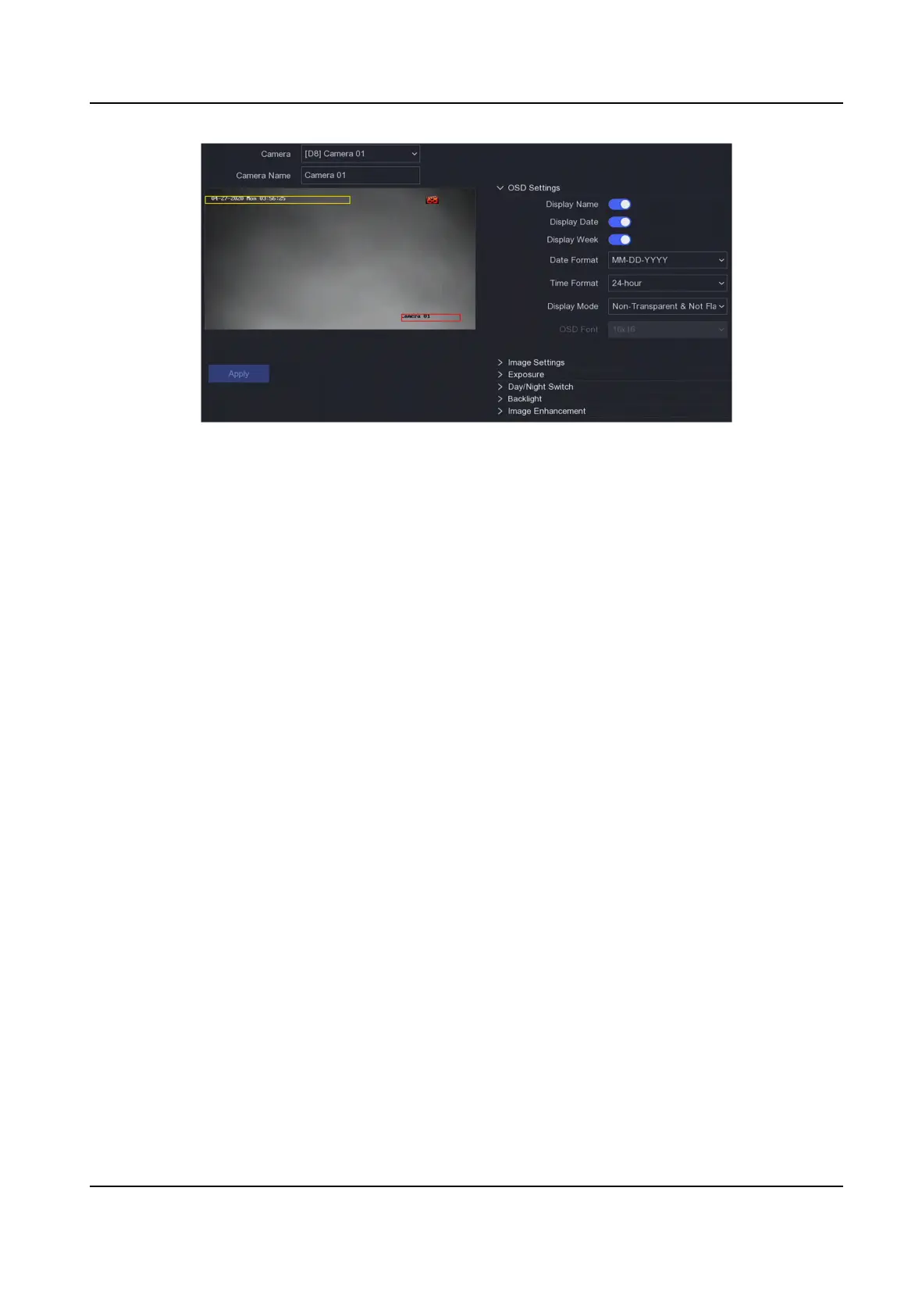

Figure 6-14 OSD
4. Drag the text frames on the preview window to adjust the OSD posion.
5. Click Apply.
6.3.3 Privacy Mask
You are allowed to congure the privacy mask areas that cannot be viewed or recorded.
Steps
1. Go to Conguraon → Camera → Privacy Mask .
2. Select Camera.
3. Turn on Enable.
Network Video Recorder User Manual
53

HIKVISION DS-7108NI-Q1/M Specifications

General

DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Video input channels	8 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Maximum HDD capacity	6000 GB
Video compression formats	H.264, H.265

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
