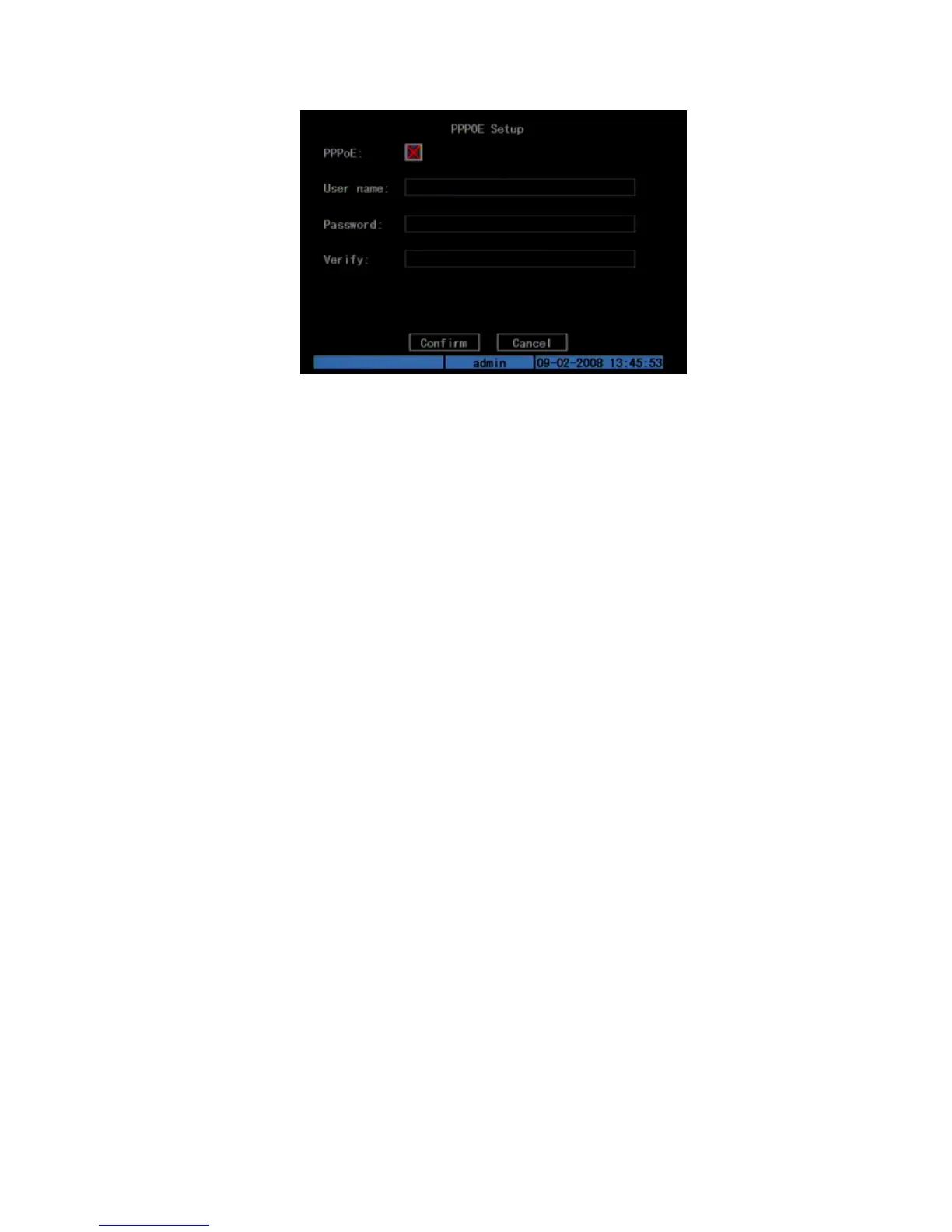

Fig. 5.30 PPPoE setup
Example: Use PPPoE function
Step 1: Enter “Network” “Advanced Settings”.
Step 2: Select NIC type.
Step 3: Input port number. In the port edit box, use numeric keys to input port
number. The port number must be more than 2000.
Step 4: Input IP Server: Input one fixed Internet IP address where the IP analyst
software (IP Server) is run.
Step 5: Enter PPPoE Setup & Input PPPoE parameters. Use [ENTER] or
[EDIT] key to enable PPPoE function (set PPPoE flag as “√”). Input PPPoE username,
password and verify password that ISP provided.
Step 6: Save parameters. In “Network” menu, press “Confirm” to save
parameters. Reboot DVR to make parameters into effect. In reboot process, DVR will
start dialup using PPPoE function. If DVR dialup internet successfully, DVR will
display the dynamic internet IP address in “Network” menu.
5.15 PTZ
There is one RS-485 port at DVR rear panel used for PTZ control. You can setup
RS-485 parameters to match your PTZ protocol. In main menu, you can move
“Active Frame” to PTZ icon and press [ENTER] key, you can enter PTZ menu as
follows: Shown as Fig.5.31 below
