HIKVISION DS-7216HGHI-SH User Manual

User Manual of Digital Video Recorder
135
9.1 Configuring General Settings
Purpose:
Network settings must be properly configured before you operate DVR over network.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
DS-8100HGHI&HQHI-SH
Other Models

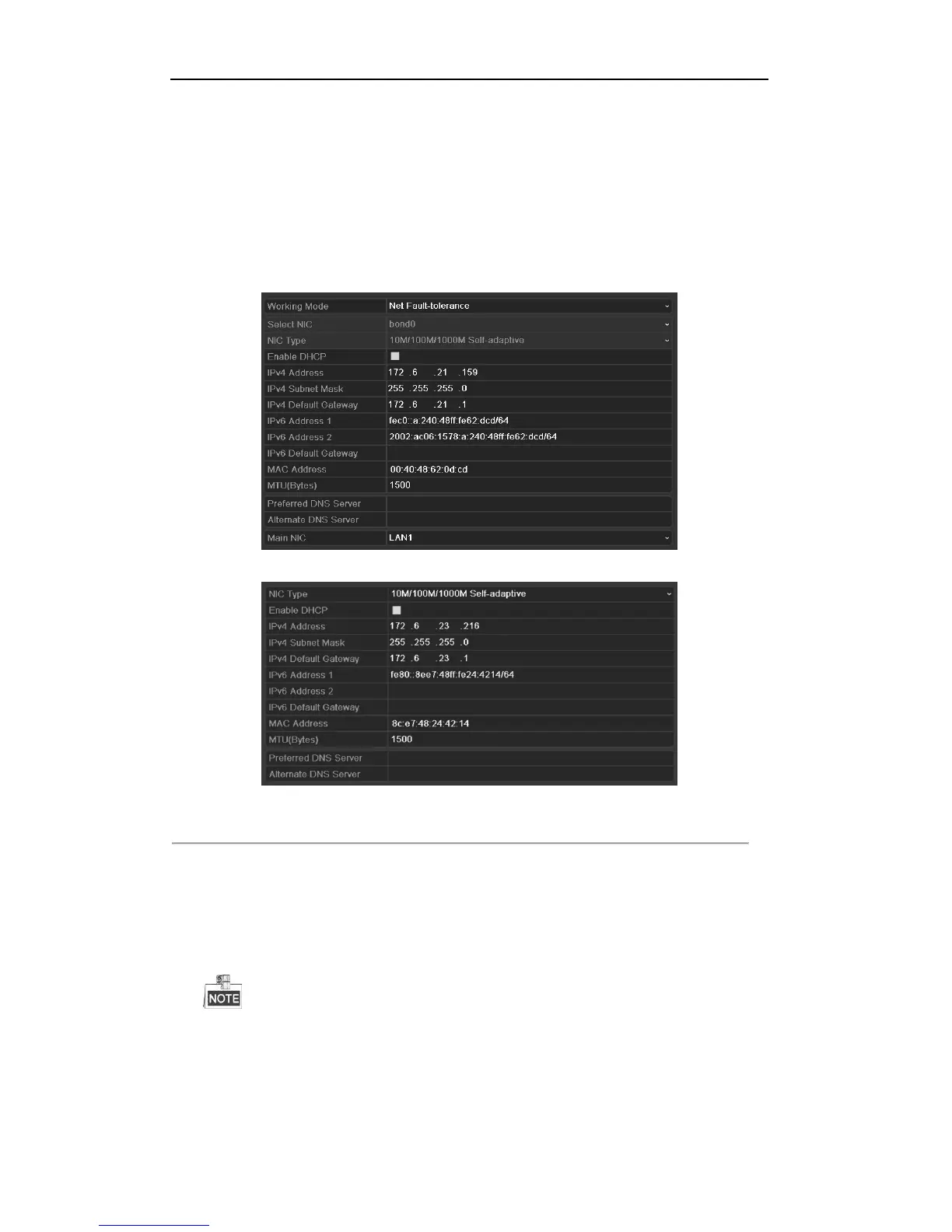

Figure 9. 1 Network Settings Interface
2. Select the General tab.
3. In the General Settings interface, you can configure the following settings: Working mode (applicable for
DS-8100HGHI&HQHI-SH only), NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server.
If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP
address and other network settings from that server.
The valid value of MTU is from 500 to 1500.
4. After having configured the general settings, click the Apply button to save the settings.
Working Mode
There are two 10M/100M/1000M NIC cards provided by the DS-8100HGHI&HQHI-SH series devices, and it

HIKVISION DS-7216HGHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	380 x 290 x 48 mm
