User Manual of Digital Video Recorder
99
6.2 Auxiliary Functions of Playback
6.2.1 Playing Back Frame by Frame
Purpose:
Play video files frame by frame, in order to check image details of the video when abnormal events happen.
Steps:
• Using a Mouse
Go to Playback interface and click button and until the speed changes to Single frame. One click
on the playback screen represents playback or adverse playback of one frame. It is also feasible to use
button in toolbar.
• Using the front panel (Not supported with DS-7100HGHI-SH and DS-7200HGHI-SH)
Press the button to set the speed to Single frame. One click on the playback screen or press button
on the front panel represents playback or adverse playback of one frame.
6.2.2 Smart Search
Purpose:
In order to locate motion detection event easily and accurately in the playback progress bar, you are allowed to
analyze a certain area (scene) dynamically, and to get all of the related motion detection events that occurred in
this area.
Steps:
1. Go to Playback interface and play the video.

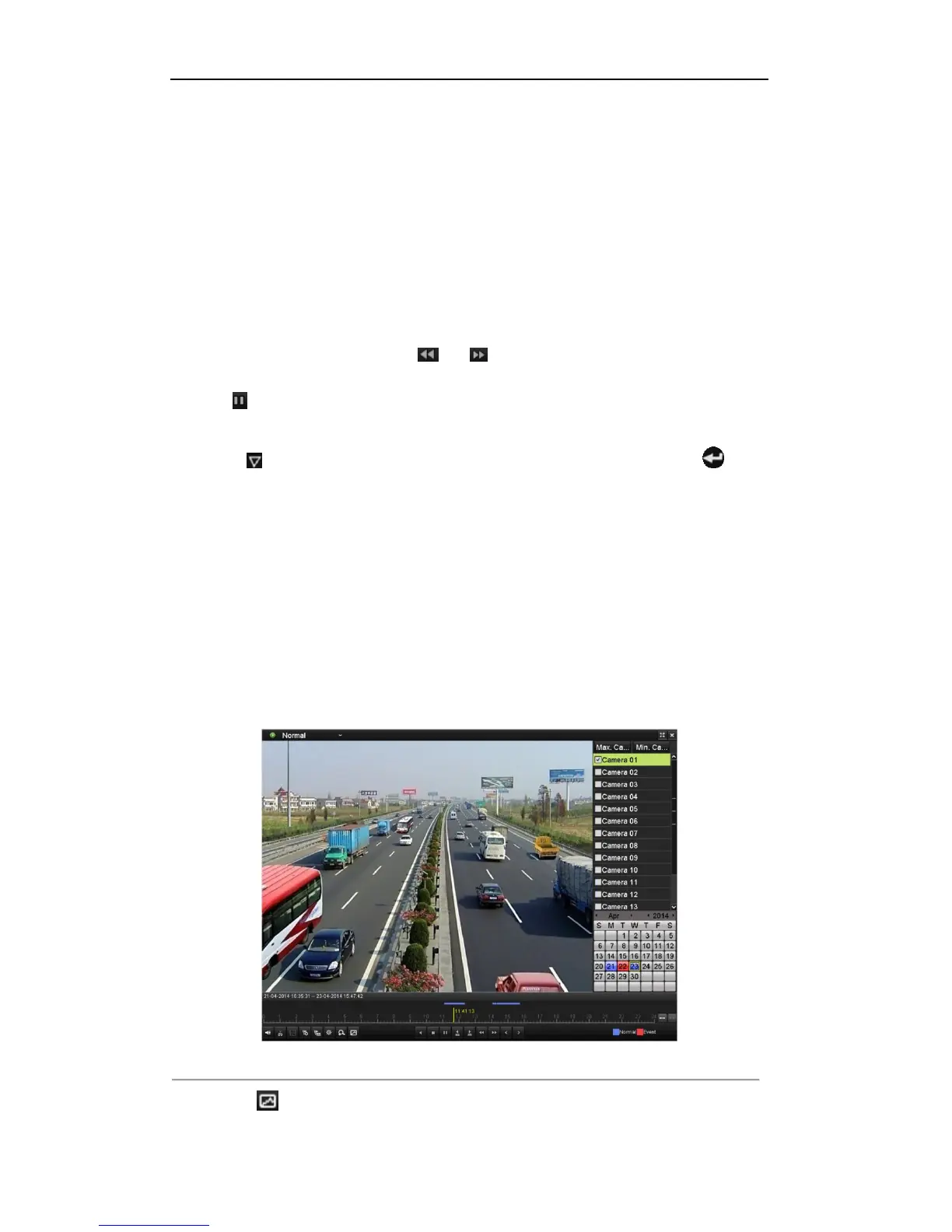

Figure 6. 22 Interface of Playback by Time
2. Click the button to go to analysis area selection interface.

HIKVISION DS-7216HGHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	380 x 290 x 48 mm
