HIKVISION DS-7216HGHI-SH User Manual

User Manual of Digital Video Recorder
177
12.1.3 Viewing Record Information
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Record tab to enter the Record Information menu to view the recording status encoding parameters
of each camera, as shown in Figure 12. 3.

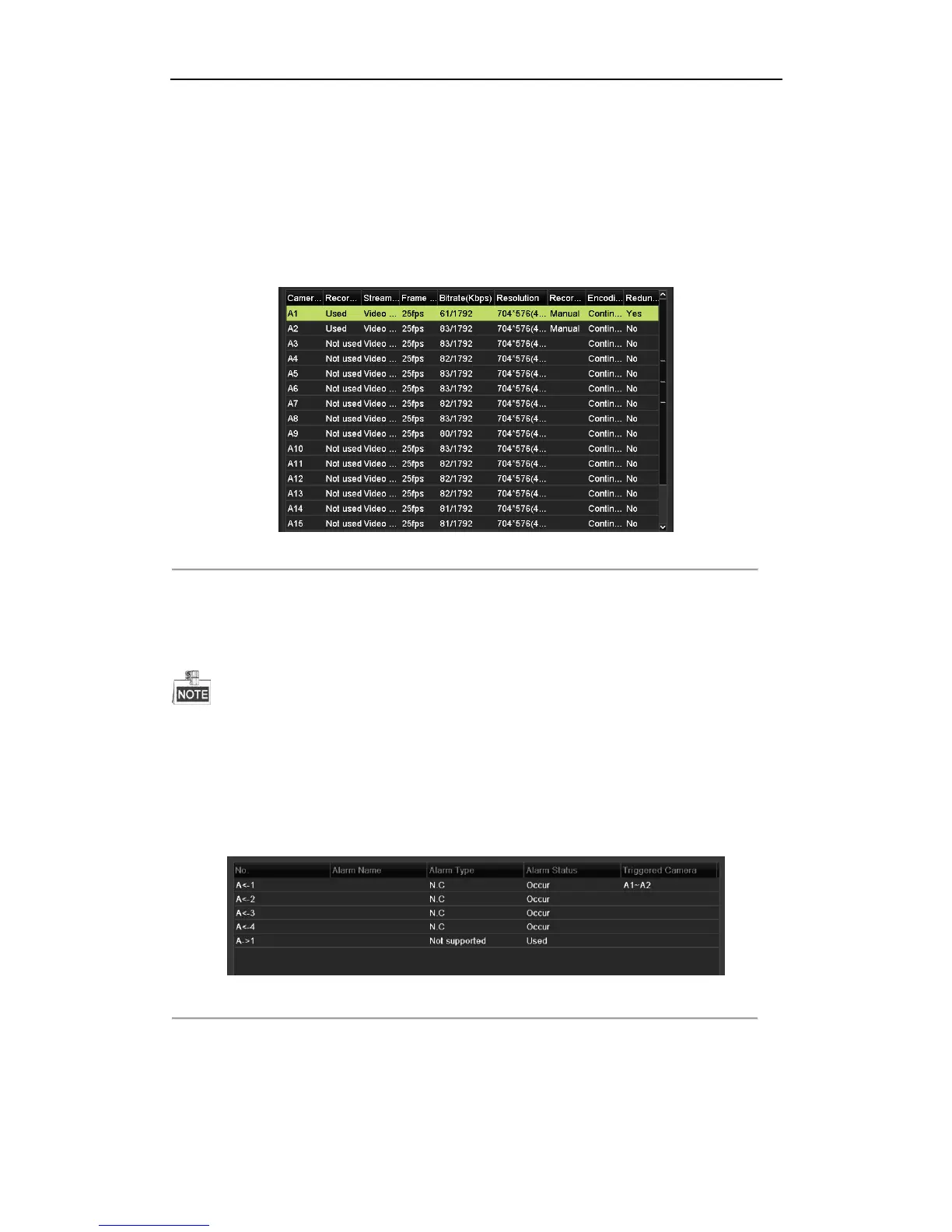

Figure 12. 3 Record Information Interface
12.1.4 Viewing Alarm Information
This function is not supported by DS-7100HGHI-SH and DS-7200HGHI-SH series DVR.
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Alarm tab to enter the Alarm Information menu to view the alarm information, as shown in Figure
12. 4.
Figure 12. 4 Alarm Information Interface

HIKVISION DS-7216HGHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	380 x 290 x 48 mm
