HIKVISION DS-7216HGHI-SH User Manual

User Manual of Digital Video Recorder
189
13.2 Configuring General Settings
Purpose:
You can configure the output resolution, system time, mouse pointer speed, etc.
Steps:
1. Enter the General Settings interface.
Menu > Configuration > General
2. Select the General tab.
DS-7100HGHI-SH and DS-7200HGHI-SH
Other Models

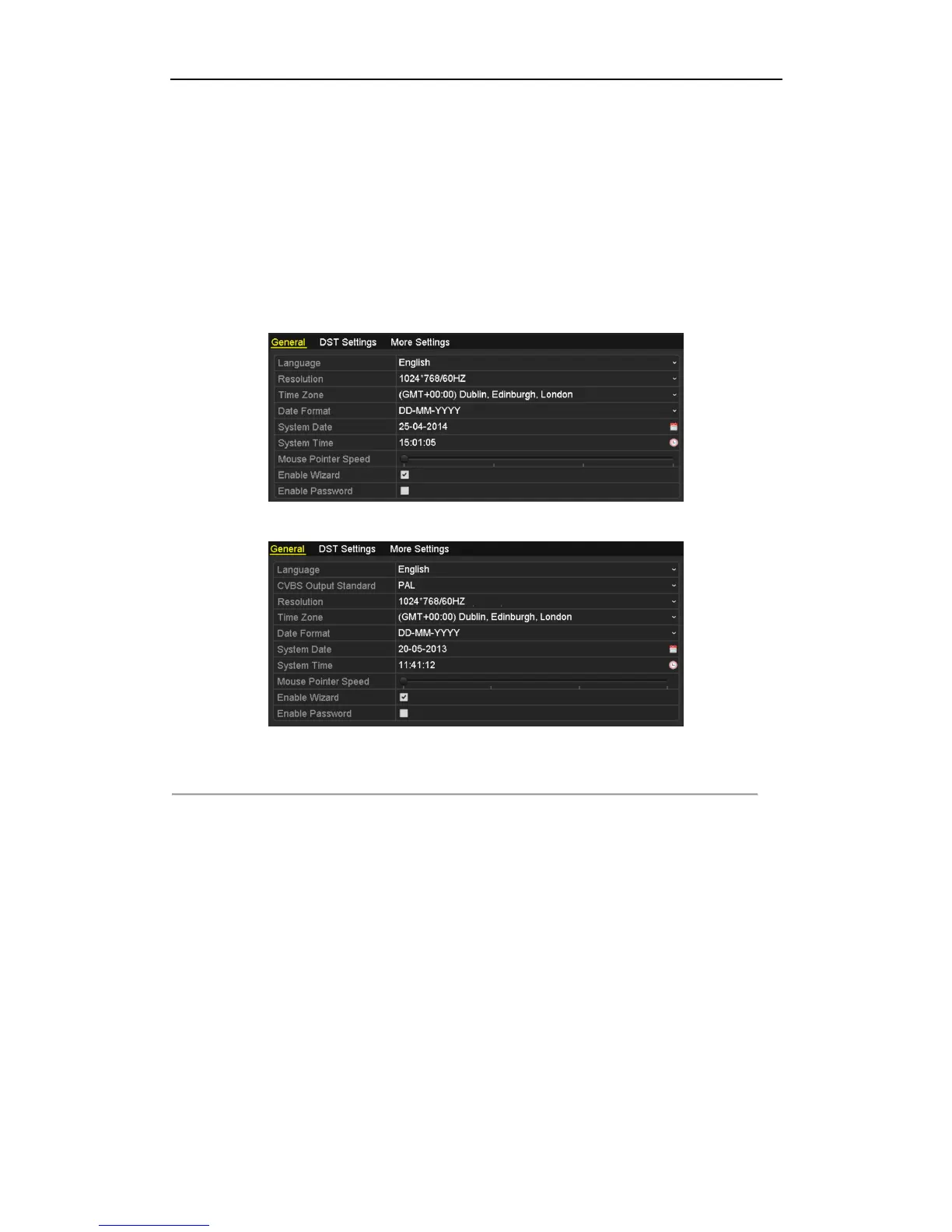

Figure 13. 1 General Settings Interface
3. Configure the following settings:
• Language: The default language used is English.
• CVBS Output Standard: Select the CVBS output standard to NTSC or PAL, which must be the same
with the video input standard (for DS-7300 and DS-8100 series only).
• Resolution: Select the output resolution, which must be the same with the resolution of the VGA/HDMI
display.
• Time Zone: Select the time zone.
• Date Format: Select the date format.
• System Date: Select the system date.
• System Time: Select the system time.
• Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
• Enable Wizard: Enable/disable the Wizard when the device starts up.
• Enable ID Authentication: Enable/disable the use of the login password.
4. Click the Apply button to save the settings.

HIKVISION DS-7216HGHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	380 x 290 x 48 mm
