User Manual of Digital Video Recorder
48

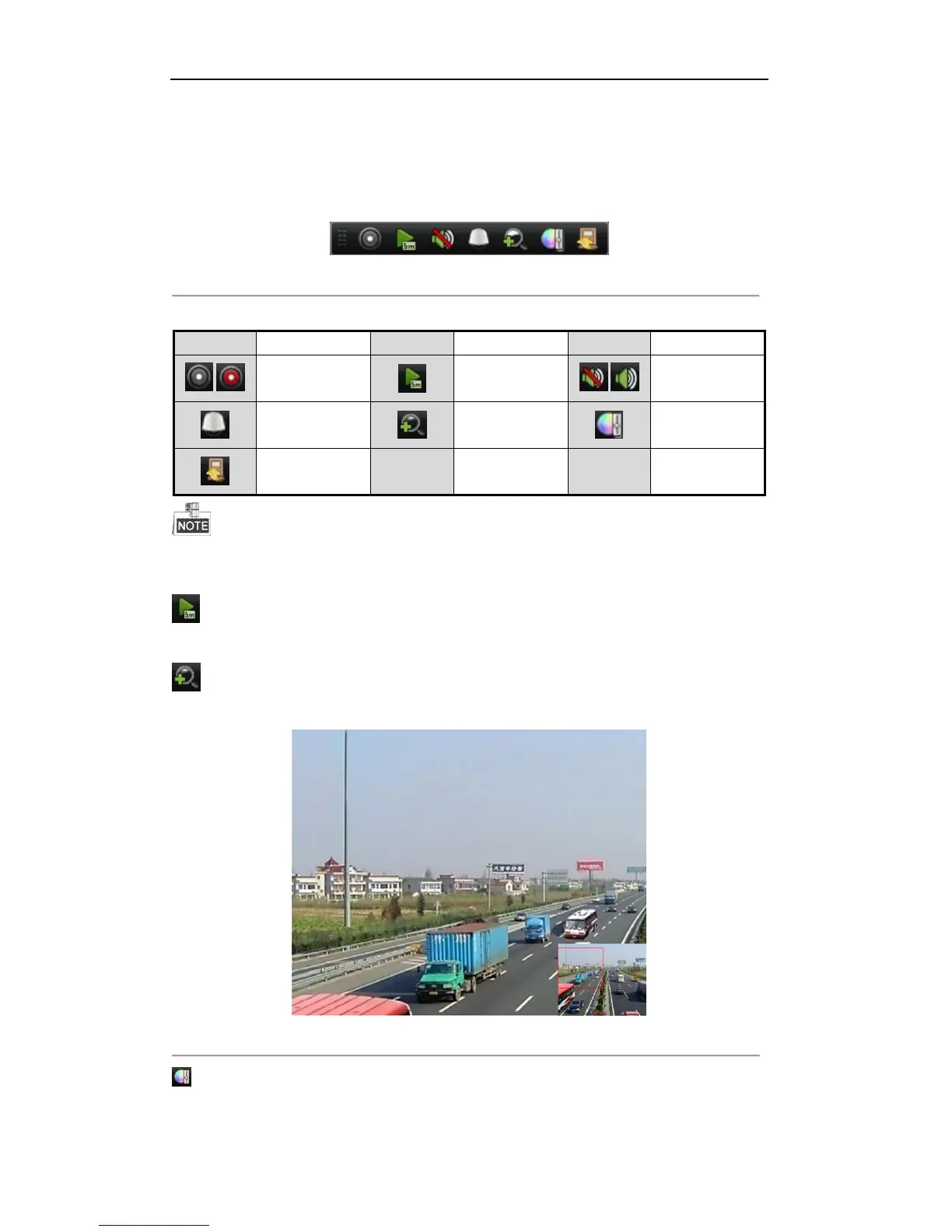

3.2.5 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you point the mouse to the
bottom of the screen.
Figure 3. 3 Quick Setting Toolbar
Table 3. 5 Description of Quick Setting Toolbar Icons
The DS-7100HGHI-SH series DVR does not support the RS-485 interface, thus the PTZ control function
is not applicable to it.
Instant Playback only shows the record in last five minutes. If no record is found, it means there is no
record during the last five minutes.
Digital Zoom can zoom in the selected area to the full screen. Click and draw to select the area to zoom in,
as shown in Figure 3. 4.
Figure 3. 4 Digital Zoom
Image Settings icon can be selected to enter the Image Settings menu.
Four modes are selectable according to the real situation:
