HIKVISION DS-7216HGHI-SH User Manual

User Manual of Digital Video Recorder
89

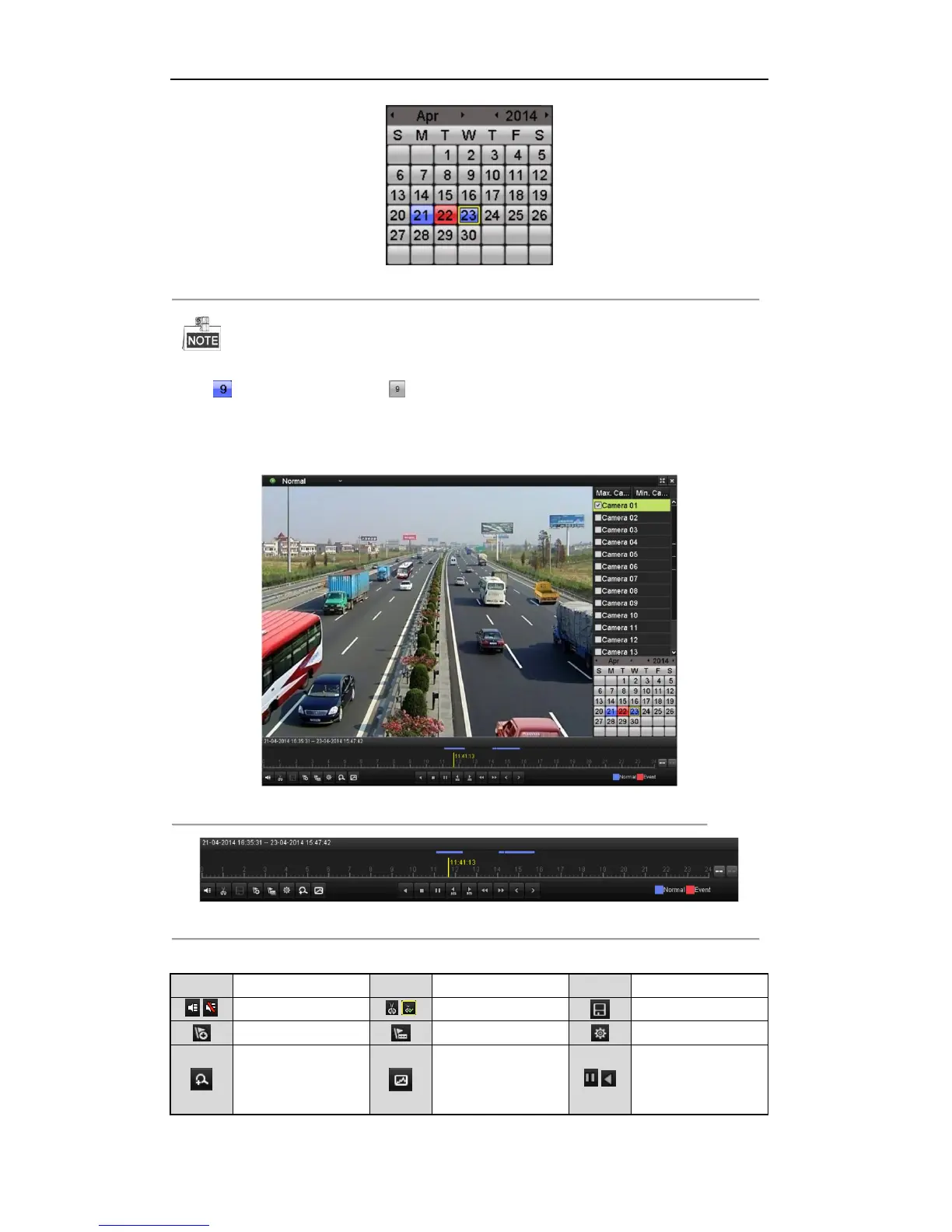

Figure 6. 5 Playback Calendar
If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as
. Otherwise it is displayed as
In the Playback interface:
The toolbar in the bottom part of Playback interface can be used to control playing process, as shown in
Figure 6. 6.
Figure 6. 6 Interface of Playback by Time
Figure 6. 7 Toolbar of Playback by Time
Table 6. 2 Detailed Explanation of Playback Toolbar
Button
Operation
Button
Operation
Button
Operation
/
Audio on/ Mute
/
Start/Stop clipping
Save clip(s)
Add default tag
Add customized tag
Tag management
Digital Zoom
Smart Search
/
Pause / Reverse play/
Single-frame reverse
play

HIKVISION DS-7216HGHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	16
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	380 x 290 x 48 mm
