Network Video Recorder User Manual
164
3. Select the backup device from the dropdown list of Device Name, as shown in Figure 11. 30.
Click Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup
device, please check whether it is compatible with the NVR. You can format the backup device if the format is
incorrect.

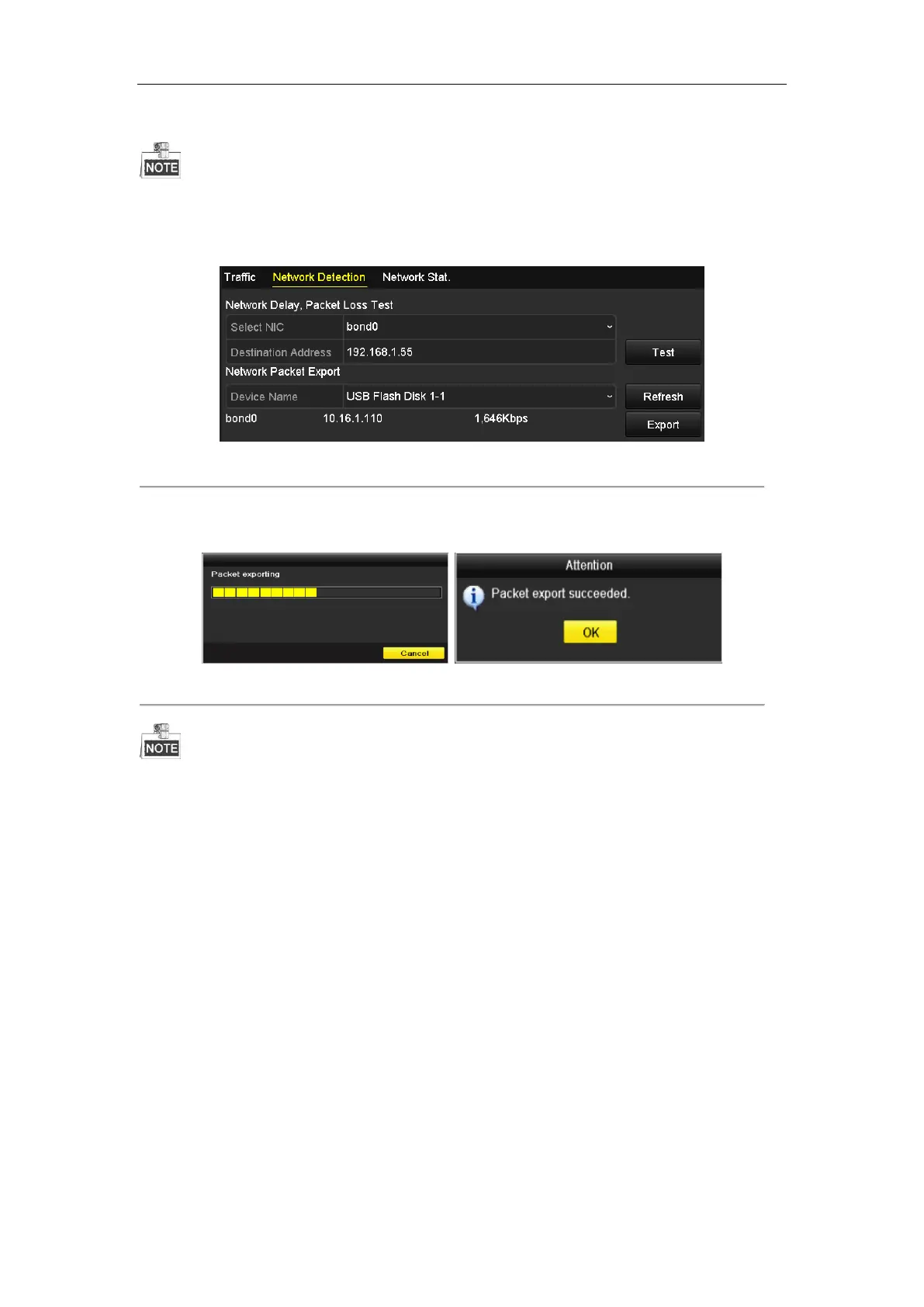

Figure 11. 30 Export Network Packet
4. Click Export button to start exporting.
5. After the exporting is complete, click OK to finish the packet export, as shown in Figure 11. 31.
Figure 11. 31 Packet Export Attention
Up to 1M data can be exported each time.
11.4.3 Checking the Network Status
Purpose:
You can also check the network status and quick set the network parameters in this interface.
Steps:
Click the Status button on the lower- right corner of the page.
