Network Video Recorder User Manual
56
1. Click the button PTZ in the lower-right corner of the PTZ setting interface;
Or click the PTZ Control icon in the quick setting bar, or select the PTZ option in the right-click menu
to show the PTZ control panel.
2. Click the General tab.

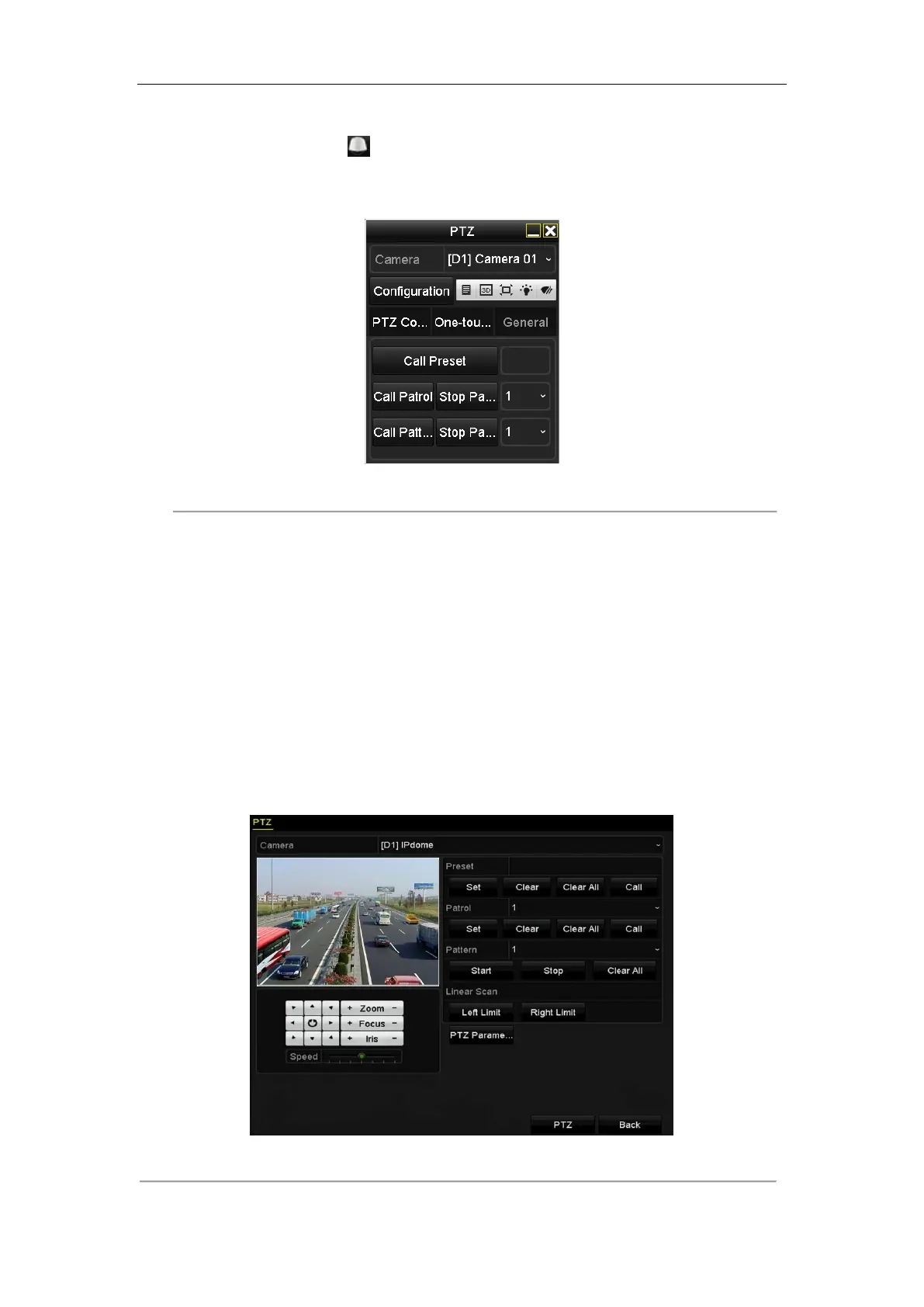

Figure 4. 7 PTZ Panel - General
3. Select a patrol in the dropdown list and click the Call Patrol button to call it.
4. You can click the Stop Patrol button to stop calling it.
4.2.5 Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement
according to the predefined path.
Steps:
1. Enter the PTZ Control interface.
Menu > Camera > PTZ
Figure 4. 8 PTZ Settings
To Next Page
