HIKVISION DS-K1T343EFX User Manual

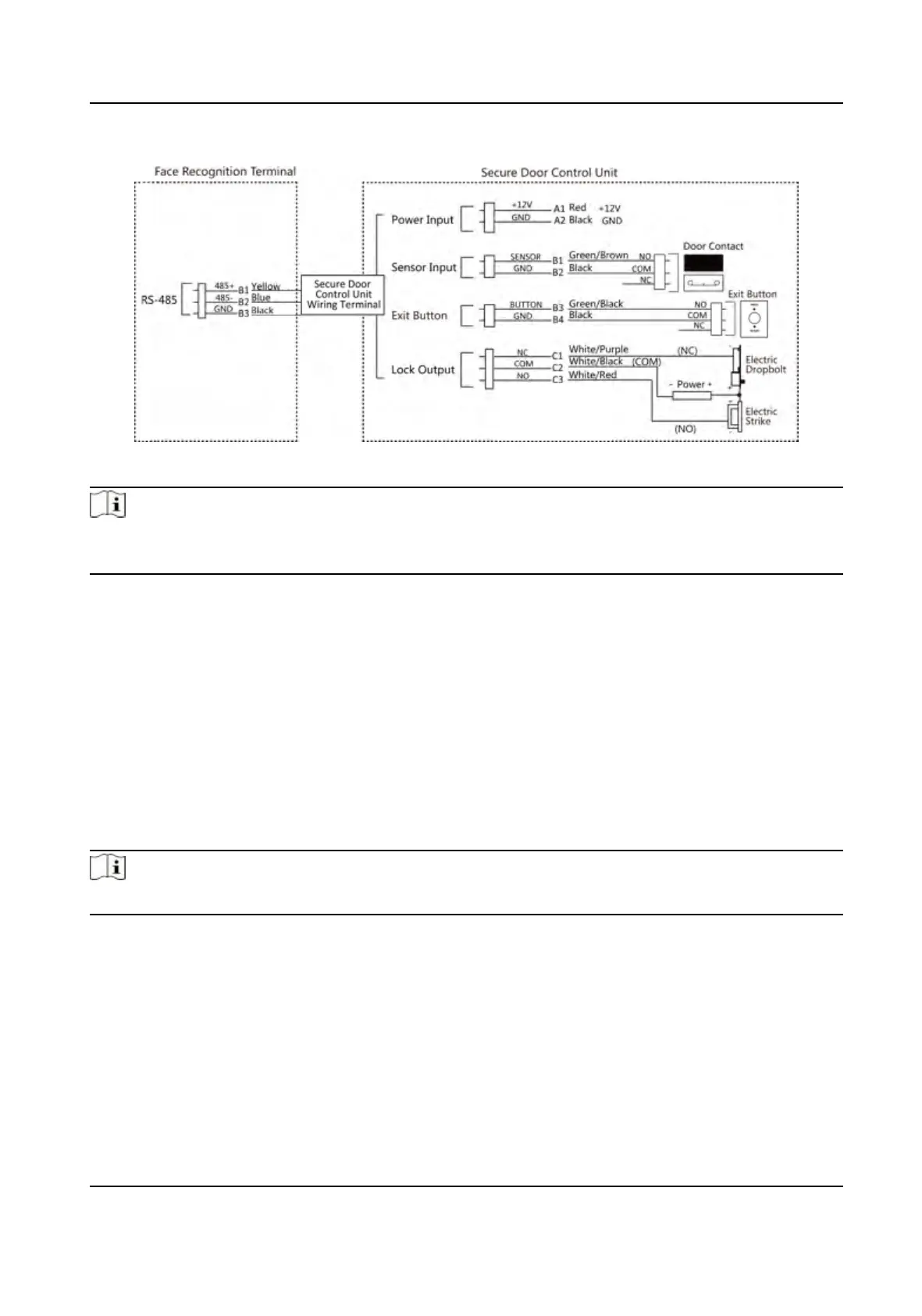

Figure 4-2 Secure Door Control Unit Wiring
Note
The secure door control unit should connect to an external power supply separately. The suggested
external power supply is 12V, 0.5A.
4.4 Wire Fire Module
4.4.1 Wiring Diagram of Door Open When Powering O
Lock Type: Anode Lock, Magnec Lock, and Electric Bolt (NO)
Security Type: Door Open When Powering
O
Scenario: Installed in Fire Engine Access
Type 1
Note
The re system controls the power supply of the access control system.
DS-K1T343 Series Face Recognion Terminal User Manual
11
