User Manual of Network Video Recorder
135
8.2 Setting Sensor Alarms
Purpose:
Set the handling action of an external sensor alarm.
Steps:
1. Enter Alarm Settings of System Configuration and select an alarm input.
Menu> Configuration> Alarm
Select Alarm Input tab to enter Alarm Input Settings interface.

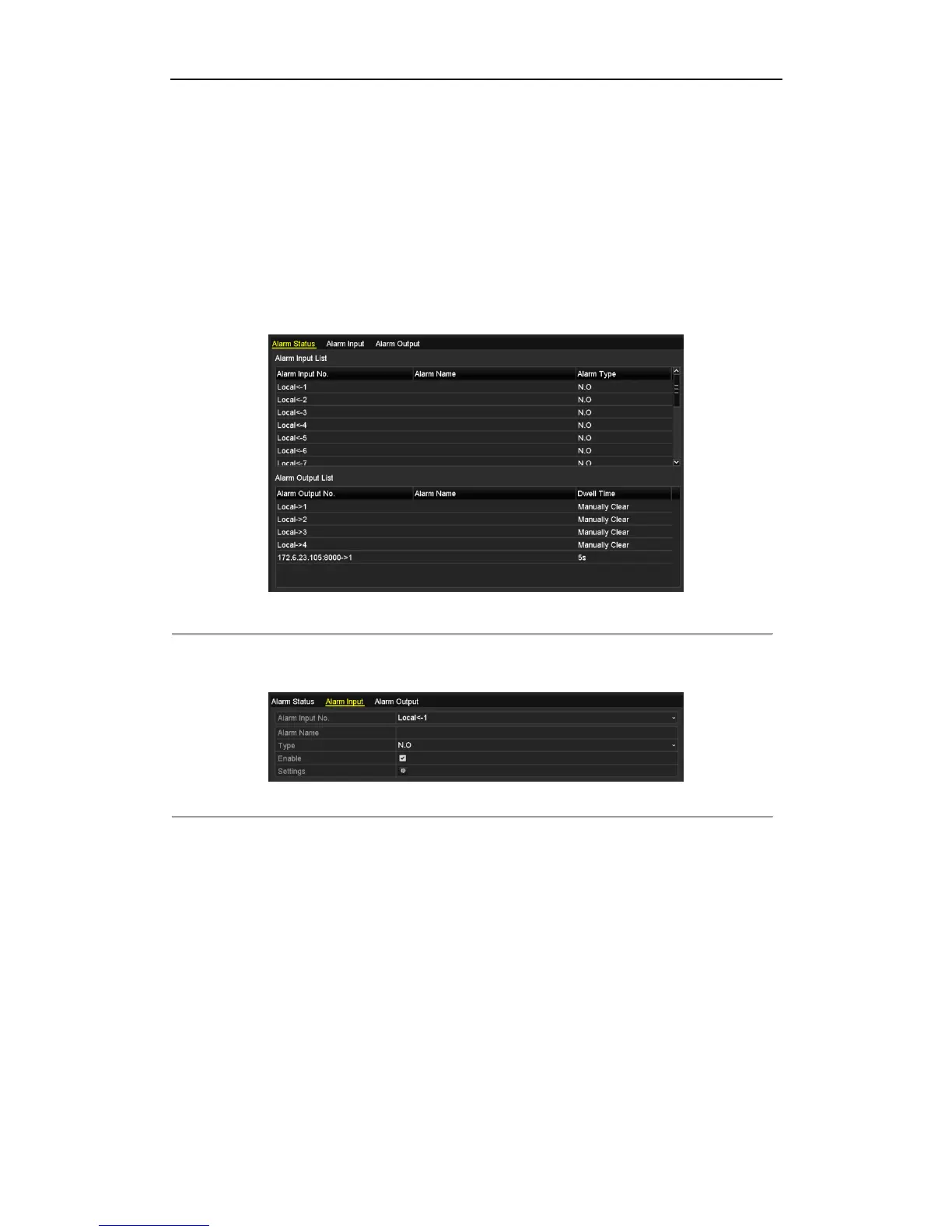

Figure 8. 4 Alarm Status Interface of System Configuration
2. Set up the handling action of the selected alarm input.
Check the Enable checkbox and click Settings button to set up its alarm response actions.
Figure 8. 5 Alarm Input Setup Interface
3. Select Trigger Channel tab and select one or more channels which will start to record/capture or become
full-screen monitoring when an external alarm is input, and click Apply to save the settings.
4. Select Arming Schedule tab to set the arming schedule of handling actions.
