Hirschmann EAGLE20 series User Manual

20
Installation EAGLE20/30
Release 06 04/2014

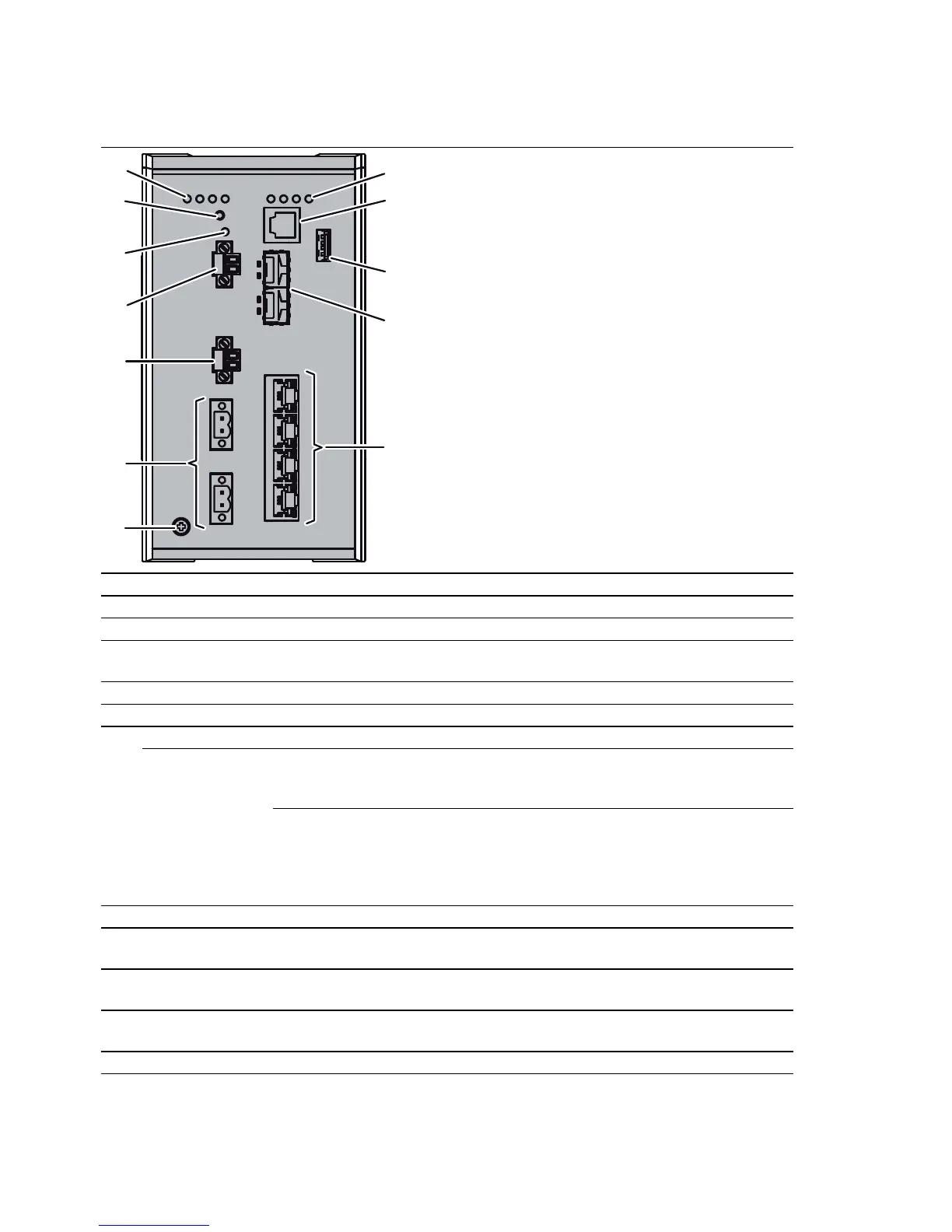

1.4 Device views
1.4.1 Front view
1 LED display elements for device status
2 V.24 interface
3 USB interface
4 Optional:
2× SFP slot
5 4 × 10/100 Mbit/s twisted pair ports
6 Grounding screw
7 Working voltage connection
alternatively,
depending on
device variant
2 × Operating voltage
characteristic value:
C
 Rated voltage range DC
24 V ... 48 V
 2-pin terminal block
1 × Operating voltage
characteristic value:
K
 Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
 Rated voltage range DC
60 V ... 250 V
 3-pin terminal block
8 Connection for the signal contact
9 Connection for input
(no function in the existing device version)
10 LED display element for input
(no function in the existing device version)
11 Save/Load/Reset button
(no function in the existing device version)
12 LED display elements for additional status information
Table 5: Front view (example EAGLE30-04022O6TT999SCC...)
6
7
8
9
10
11
12
1
2
3
4
5
