NOTE:
The above picture is for reference only, please refer to the actual TV to determine their appearance.
8
NO. Connector Description
1 AC INPUT Connect the power cord to this connector.
2 SERVICE jack For service purposes ONLY (will not support consumer products)
Plug headphone into this jack. When headphones are plugged in, no sound
3 Headphone jack
comes from the loudspeakers.
4 Component Video Connect Component video devices, such as a DVD player / PVR / HDDVD
input (2) /BluRay to these jacks. (Recommended for superior picture quality)
5 A/V input (2)/output (1) Connect standard video/audio cables to these jacks.
6 S-Video (1) Connect an S-Video device to this jack, inserting the left and right audio leads
into S-VIDEO/L and S-VIDEO/R
7 Antenna input Connection for the Aerial/Antenna.
8 USB Connector For service purposes ONLY. (Will not support consumer products)
9 HDMI (3) Connect a HDMI device to this jack.
10 VGA Audio input Connect audio from a computer to this jack.
11 VGA video input Connect the video from a computer to this jack.
12 Optical audio output Connect an optical audio device to this jack. (only available in Digital TV or HDMI modes)
13 Rating Label Model number and serial number found here
COMP2
COMP1
L R

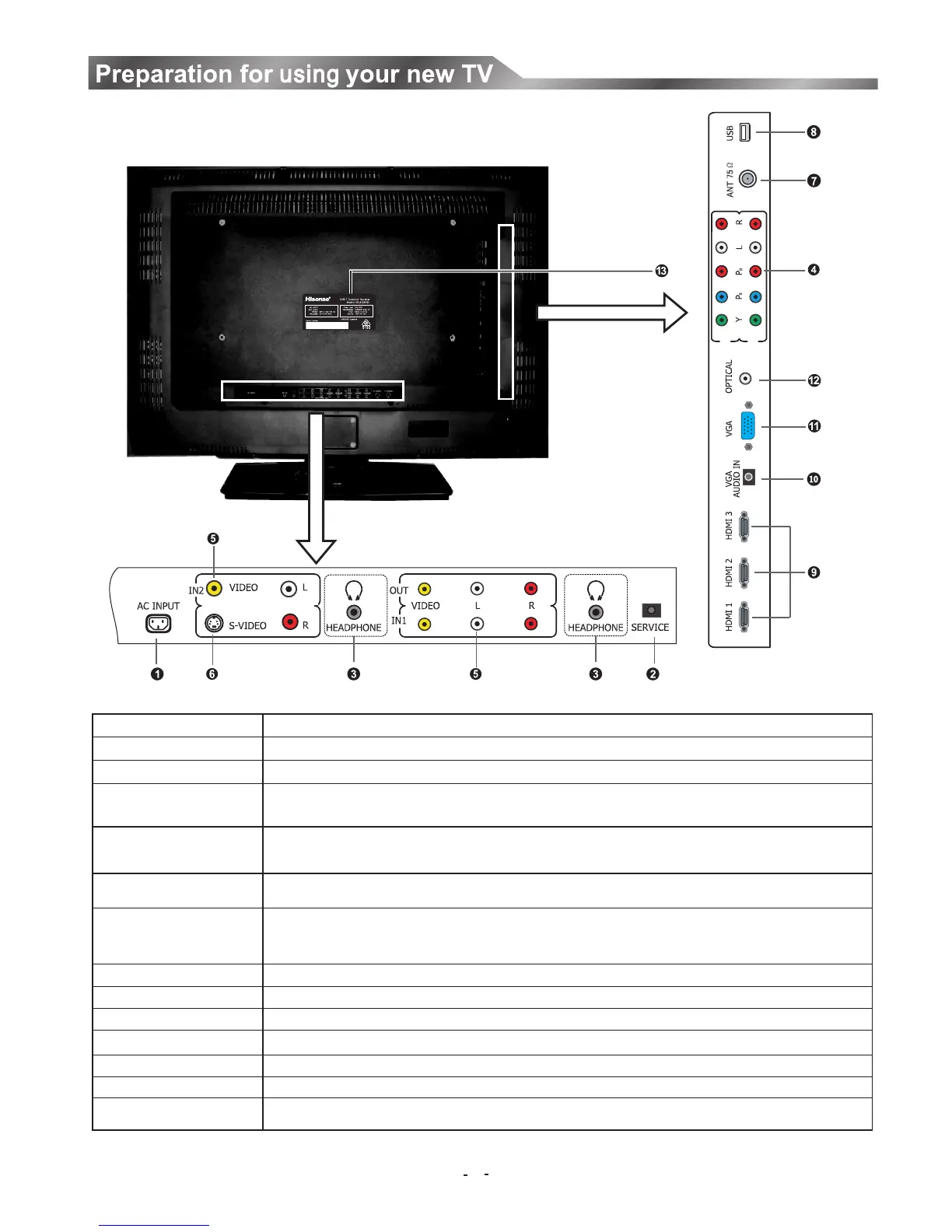

Back Connections
HI7600501-L3205
165Wa tt
(For HSL2629HDI) (For HSL8129HDI)
