Hitachi 42PD3000 User Manual

8

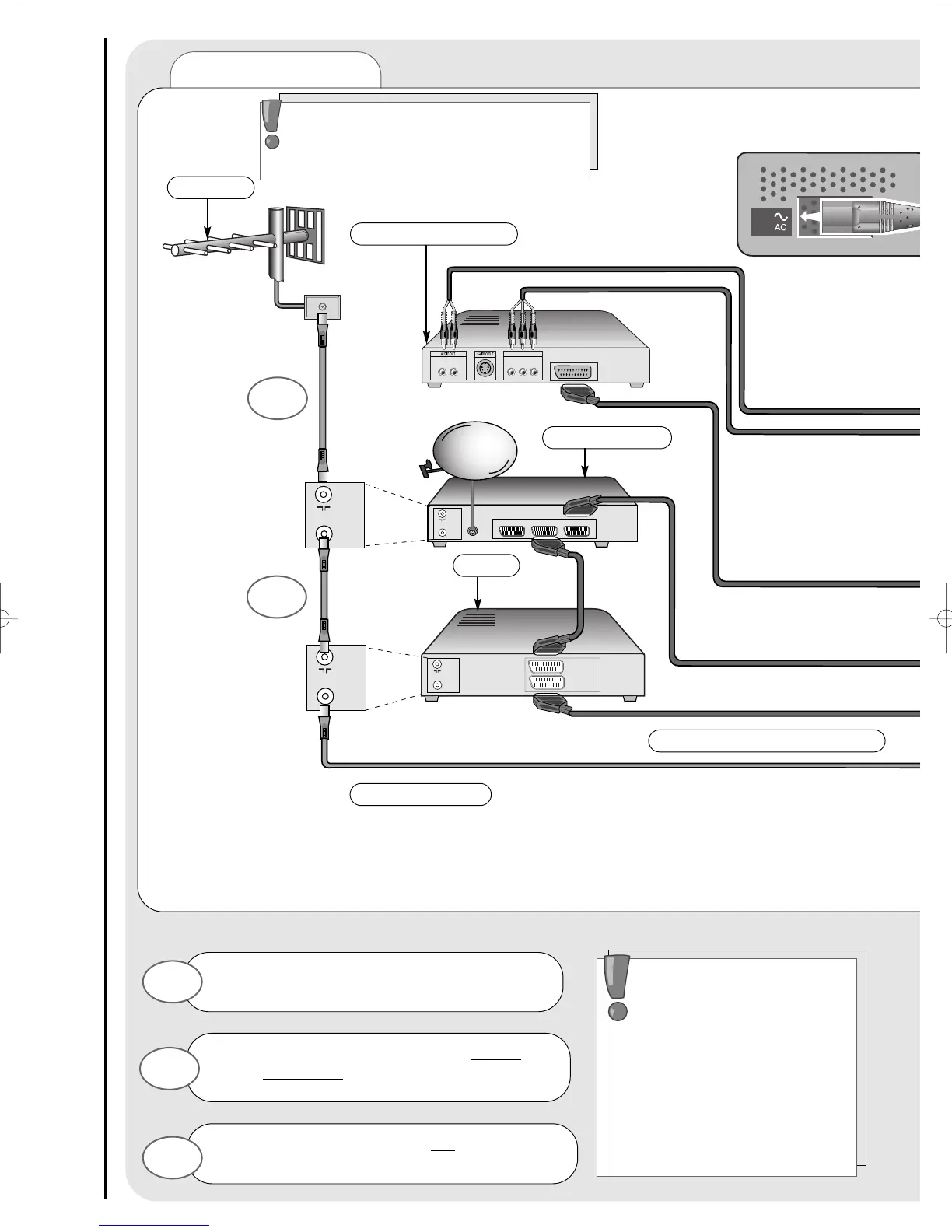

plasma screen, AVC unit and equipment connection
set-up
TV Setup
* Scart leads should be fitted
between your TV and other
equipment to enhance your
picture and sound quality. Scart
leads are essential if you have a
stereo TV and VCR and wish to
obtain stereo sound from your
equipment. These leads can be
purchased from your Hitachi dealer
or any good High Street electrical
retailer.
Connect the LINK LEAD between the Plasma
Screen and AVC Unit.
1
Connect the Mains lead with the WHITE
SLEEVING to the Plasma Screen.
2
Connect the Mains lead with NO Sleeving to
the AVC Unit.
3
AUX
VCR TV
IN
OUT
IN
OUT
IN
OUT
AV1/TV
AV2/
DECODER
IN
OUT
C
B
C
R
Y
COMPONENT VIDEO OUT
LR
AERIAL
4
DVD PLAYER/GAMES
DIGIBOX
VCR
5
SCART LEADS * (optional)
RF LEADS
IMPORTANT! When connecting the mains
lead to your Plasma screen, please ensure
that you always use the Mains Lead with
the WHITE SLEEVING.
X832136-02-02(En) 9/13/02 10:38 AM Page 8
