Hitachi 43FDX10B User Manual
4
of 1
of 1 rating
149 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
13
SRS
l
)
(
h
/
DIGITAL
ARRAY
POWER
INPUT
EXIT
SELECT
Push open door and
pull forward and down
PUSH
POWER
INPUT
EXIT
VOL+
VOL-
CH-
CH+
VOL+
VOL-
CH-
CH+
MENU
SELECT
MENU
Models: 43FDX11B, 43FDX10B
SRS
l
)
(
h
/
MAGIC
FOCUS
POWER
INPUT
EXIT
SELECT
Push open door and
pull forward and down
PUSH
POWER
INPUT
EXIT
VOL+
VOL-
CH-
CH+
VOL+
VOL-
CH-
CH+
MENU
SELECT
MENU
Models: 61UDX10B, 53UDX10B
b
c
e
P
B
P
R
f
d
AUDIO TO HI-FI
a
ANT A
TO
CONVERTER
ANT B
P
B
P
R
MONITOR
OUT
INPUT 1
AUDIO
(MONO)
L
R
AUDIO
L
R
S-VIDEO
S-VIDEO
VIDEO
VIDEO
AUDIO
L
R
(MONO)
S-VIDEO
VIDEO
Y/VIDEO
R
L
AUDIO
L
R
L
R
Y/VIDEO
AUDIO
INPUT 2
INPUT 4
INPUT 5
(MONO)
(MONO)
GENERAL
INFORMA
TION

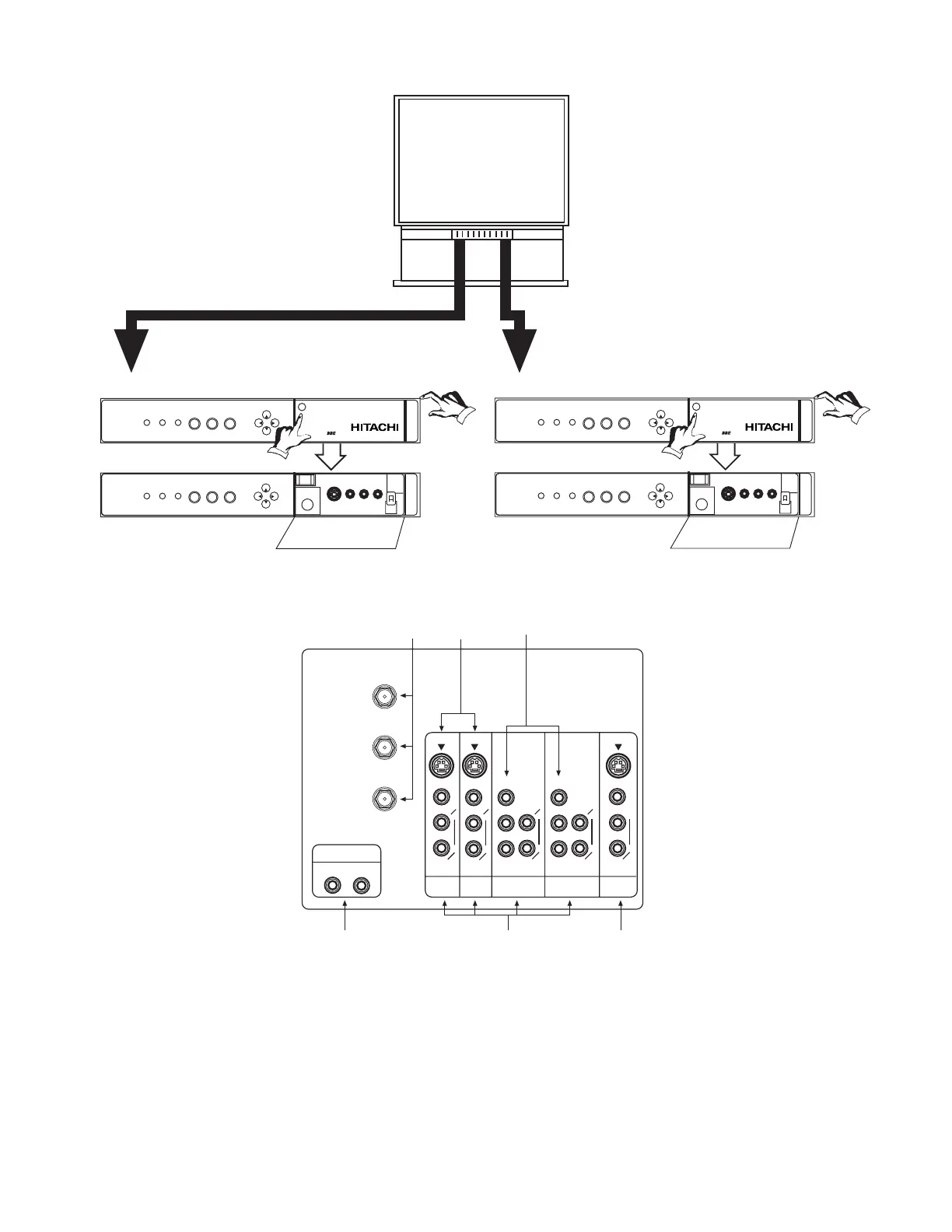

Fig. 3. Front Control Panel
Fig. 4. Rear Panel Jacks
a
Antenna Input/Output
b
Audio/Video Inputs 1, 2, 4, 5
c
Monitor Out
d
Audio to Hi-Fi
e
S-Video Inputs 1 and 2
f
Component Input Y
-P
B
P
R
12
14
Table of Contents
Specifications and Parts Are Subject to Change for Improvement Projection Color Television
1
Table of Contents
1
Important Safety Instructions
2
Servicing Precautions
6
Technical Cautions
10
Specifications
11
Circuit Protection
11
Cautions When Connecting/Disconnecting the Hv Connector
12
General Information
13
Remote Control
14
Customized Picture and Sound Adjustments
15
Rear Panel Connection
17
Display Picture Formats
22
Service Adjustments
30
Assembled P.w.b Adjustment
31
Service Menu Access (NTSC, SDTV and HDTV)
31
Audio Operation Check
39
BBE Surround Operation Check
39
Comb Filter Operation Check
39
Perfect Volume Operation Check
39
SRS Surround Operation Check
39
Tone Control Operation Check
39
Cut off Adjustment
40
DCU Phase Data Setting (Normal and 1080I Throught Mode)
40
FINAL ASSEMBLY ADJUSTMENT (Adjustment Should be According to below Order)
40
High Voltage Adjustment
40
Beam Alignment
41
Horizontal Position Adjustment (Coarse)
41
Raster Tilt (Deflection Yoke)
41
Horizontal Size (Normal Mode Only)
42
Raster Position
42
Vertical Size (Normal Mode Only)
42
Beam Form
43
Lens Focus
43
Digital Convergence (Normal and 1080I Throught Mode)
45
Static Focus
45
Magic Focus Character Set up
46
Magic Focus Pattern Set up
47
Convergence Jig Screen Specification
48
Convergence Point Adjustment
49
Raster Position Adjsutment
49
Blue Defocus
51
White Balance
51
Sub Brightness
52
Sub-Picture Siganl Amplitude Adjustment
54
Horizontal Position (Normal and 1080I Throught Mode)
55
Scanning Area Check (Normal and 1080I Throught Mode)
55
Raster Distortion Check (Normal and 1080I Throught Mode)
56
Adjustment Point
58
CRT (R)(G)(B), Cabinet Locations
58
Main Chassis (Signal Pwb)
59
Main Chassis (Power/Deflection P.W.B.)
60
Power Supply P.W.B
62
CPT (R)(G)(B), Focus Pack, Control P.W.B
63
Troubleshooting
64
Waveforms
67
DC Voltage Tables
71
Protection Circuit Block Diagram
81
Basic Circuit Diagram
83
Printed Circuit Boards
98
Block Diagram
110
Wiring Diagram
111
Chassis Wiring Drawing
112
Exploded View
116
Replacement Parts List
119
Quick Reference Parts List
148
