INSTALLATION WORK

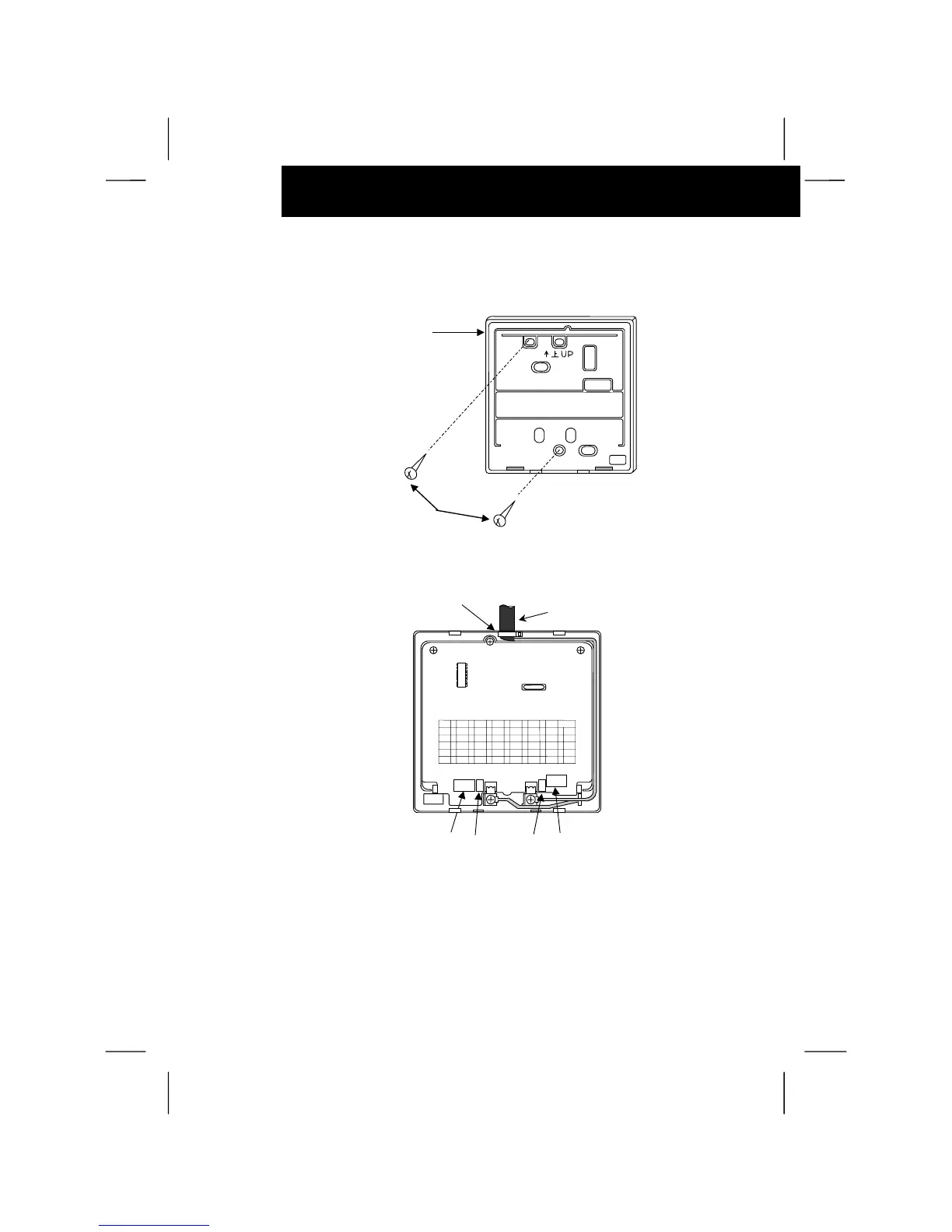

2. Attach the controller to the holding bracket as follows.



In case of exposing Remote Control Cable.

1. Fix the holding bracket onto the wall as shown below

2. Attach the stopper to the cable at the inside of the draw-out hole.

3. Lead the cable with its sheath peeled through the groove

4. Peel the insulation at the end of the cable and clamp the M3 solderless terminals

Cable

Band (Field-

Supplied

)

REMOCON A

B REMOCON

Fix the holding bracket with

the mark "↑UP" u

ward

Screw (Accessory)
