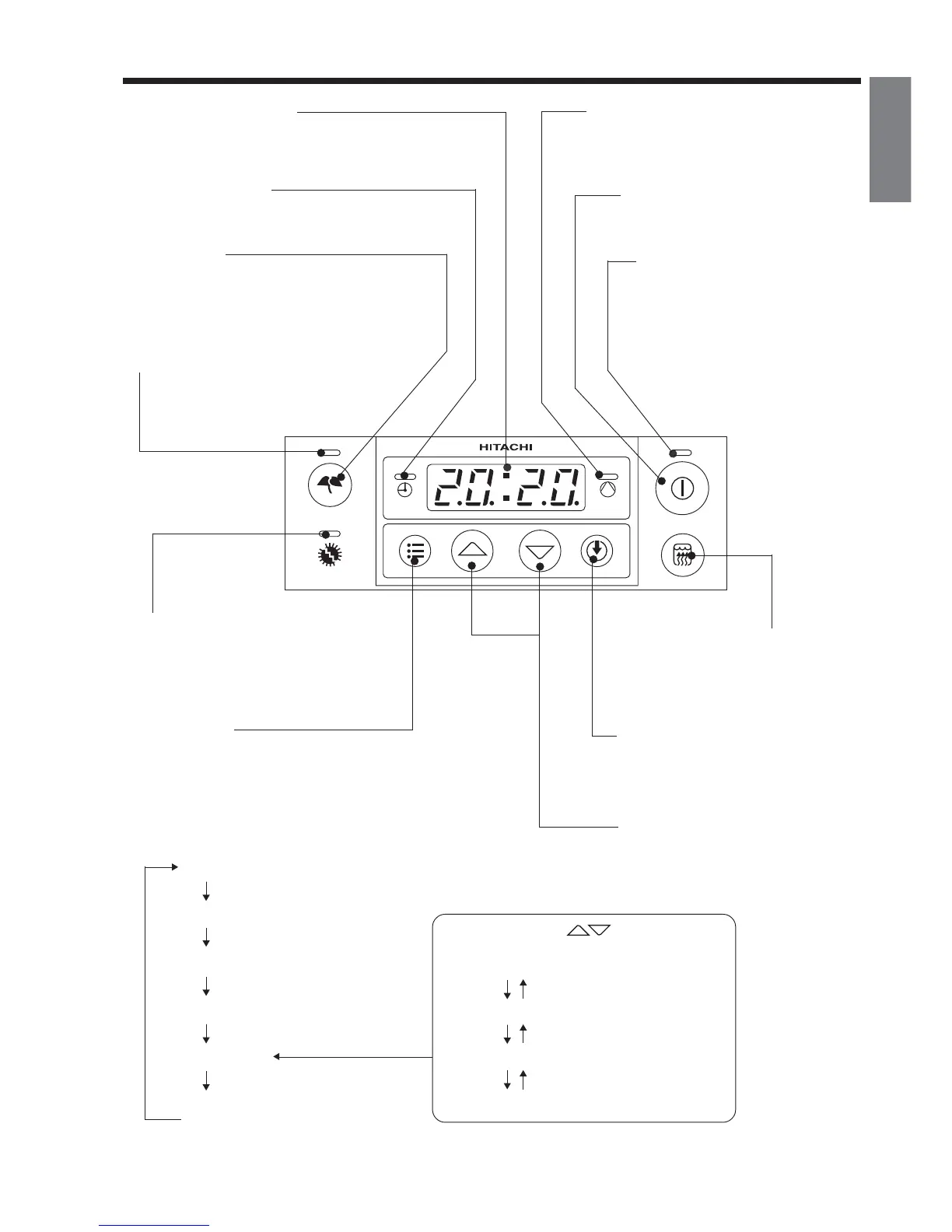

NAME AND FUNCTION OF CONTROL PANEL
7-segment LED indicator:
Indicates water temperature, time and
other information
(Refer to page 9-19)
Timer LED indicator:
Lights while timer is set
(Refer to page 12-15)
ECO button:
Sets/releases ECO mode
(Refer to page 16)
ECO LED indicator:
Lights in ECO mode
(Refer to page 16)
Heating operation LED indicator:
O Lights during heating operation.
O
Blinks during boost operation.
(Refer to page 11, 18)
START/STOP button:
Turns the unit on and off
(Refer to page 11)
Operation LED indicator:
O Lights during operation
(Refer to page 11)
O
Blinks during defrosting
(Refer to page 11)
Function button:
To change function mode when setting
(Refer to page 9-10, 12-17, 19)
Boost button:
Use to quickly reach boiling
temperature by operating the heater
pump at full power
(Refer to page 18)
Set button:
Con rms changes made to water
temperature, time and other settings
(Refer to page 9-10, 12-17)
Up button/Down button:
Changes water temperature, time
and other settings
(Refer to page 9-10, 12-17, 19)
Anti-bacteria LED indicator:
O Lights during Anti-bacteria setting
O Blinks during Anti-bacteria operation
(Refer to page 17)
Each push of the function button changes the
indications as shown below.
Current water temperature
Time
Day of the week
Hot water temperature setting
Timer setting
Anti-bacteria function setting
Each push of the button changes
the indications as shown below.
Timer 1 setting: day/operation mode
Timer 1 setting: start time
Timer 2 setting: day/operation mode
Timer 2 setting: start time
