8 clicks UP (clockwise) and windage 4 clicks LEFT (counter-clockwise).
5） The maximum adjustment range is ±50MOA.
6） After zeroing, adjust the digital reticle to the red dot position, turn off the red dot, and use the digital reticle
for shooting verification or fine-tuning the digital reticle zero.
If you feel the windage or elevation adjustments can no longer be rotated, you may have reached the mechanical
limit of the adjustment turret. Do not try to rotate the knobs further if you feel a bind or you may cause damage.
If you exceed the adjustment range, please contact your gunsmith or Holosun for assistance.
Note: If the night vision camera is removed or replaced, image fusion calibration is required.

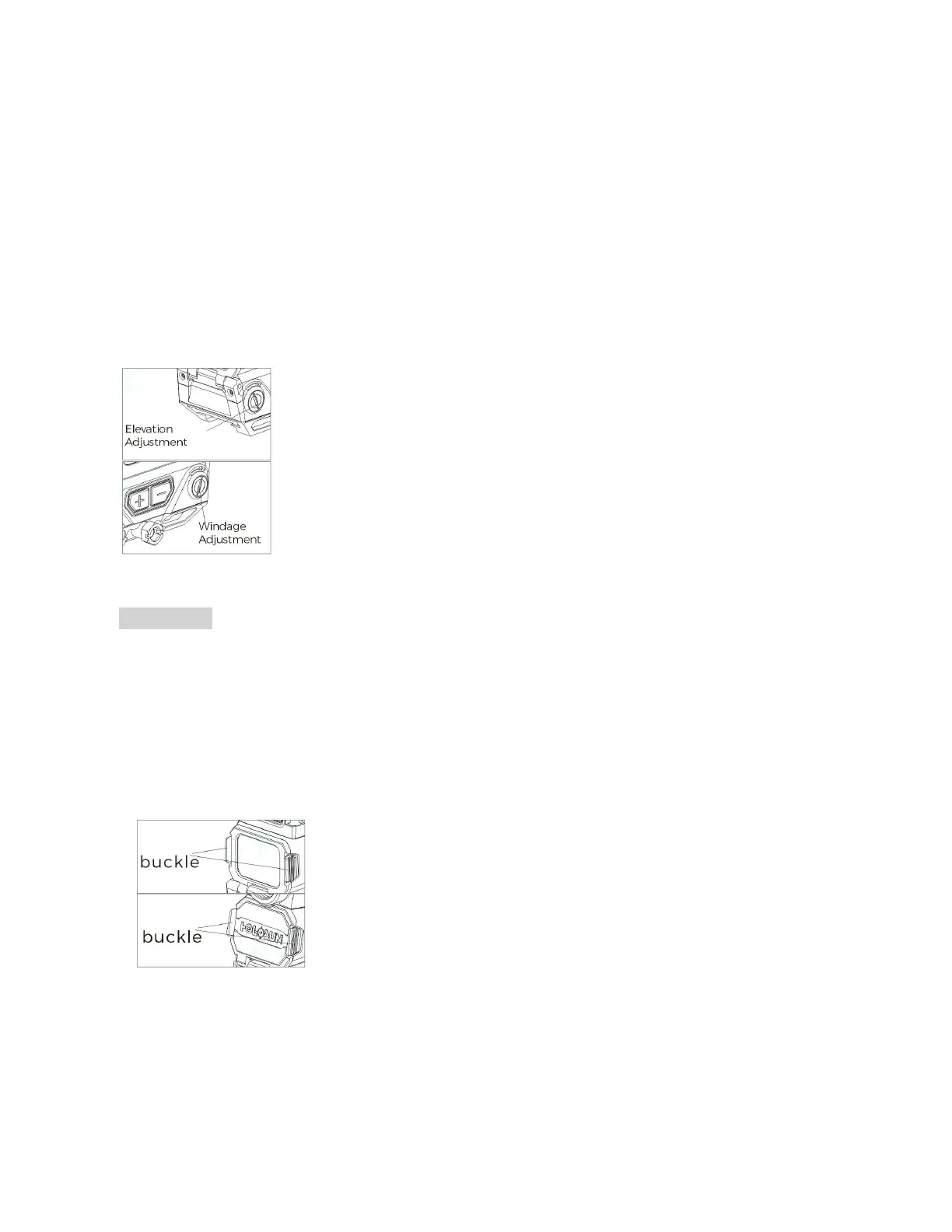

Figure10
Lens Covers
1. The DRS-NV includes lens covers for the red dot sight objective lens (solid), ocular lens (transparent), and digital
night vision camera lens (transparent). When the solid lens cover of the objective lens is closed, the digital camera
function of the DRS-NV will not be affected and may enhance contrast in certain lighting conditions.
2. To open the front and rear lens covers of the red dot sight, press the latches on both sides of the lens covers
inward and the lens covers open. (As shown in Figure 11)
Figure 11
To Next Page
