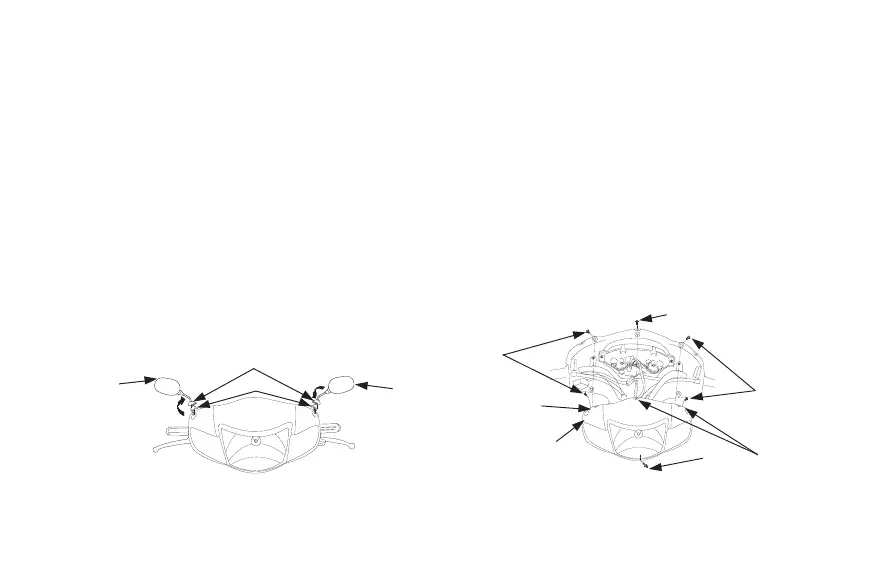

REARVIEW MIRROR
Removal :
1. Pull the dust cover (1).
2. Loosen the lock nut (2) until it will no
longer turn.
3. Loosen the rearview mirror (3), (4) and
remove it.
Installation :
1. Install the rearview mirror (3)
clockwise, mirror (4) anticlockwise until
it will no longer turn.
2. Loosen the rearview mirror
approximately 2 turns.
3. Adjust the rearview mirror.
4. Tighten the lock nut.
(1) Dust cover ¼MLV doj½ (2) Lock nut ¼ykWd uV½
(3) & (4) Rearview mirror ¼fj;j O;w fejj½
(3)
(4)
(2)
(1)
HEADLIGHT CASE
Removal :
1. Remove the rearview mirror (Ref. page 31).
2. Remove the screw A (1) and screws B
5 nos. (2).
3. Pull the headlight case slightly up,
carefully release the tabs- 3 nos. (3).
4. Disconnect the headlight connector, turn
signal indicator connector and remove
the headlight case (4).
Installation:
1. Installation can be done in the reverse
order of removal.
(1) Screw A ¼LØwl A½ (2) Screws B ¼LØwl B½
(3) Tabs ¼VScl½ (4) Headlight case ¼gSMykbZV dsl½
(1)
(2)
(2)
(3)
(4)
(2)
(3)
