ENGINE OIL STRAINER SCREEN
1. To drain the oil, remove the oil filler
cap/ dipstick, oil drain plug and sealing
washer (Ref. page 54).

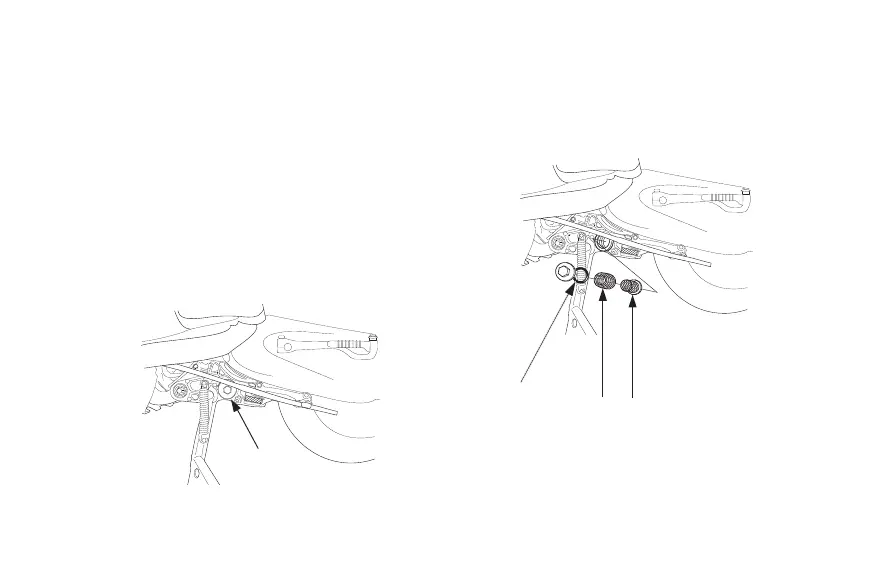

2. Remove the oil strainer screen cap (1),
spring (2) and oil strainer screen (3).
3. Clean the oil strainer screen.
4. Check that the oil strainer screen,
sealing rubber and O-ring (4) are in
good condition.
(1) Oil strainer screen cap ¼vkW;y LVªsauj LØhu dSi½
(2) Spring ¼fLizax½
(3) Oil strainer screen ¼vkW;y LVªsauj LØhu½
(4) O-ring ¼o&fjax½
5. Install the oil strainer screen spring,
O-ring and oil strainer screen cap.
Oil Strainer Screen Cap Torque:
20 N.m (2.0 kgf.m, 14 Ibf.ft)
(3)
(2)
(4)
(1)
