Front Wheel Installation
1. Position the wheel between the fork legs
and insert the front axle from the left
side, through the left fork leg, wheel
hub, collar and right fork leg.
Make sure that the tang (9) on the left
front fork leg is located in the slot (10)
in the brake panel.
2. Tighten the front axle nut to the
specified torque.
59 N.m (6.0 kgf.m, 43 Ib f. ft)

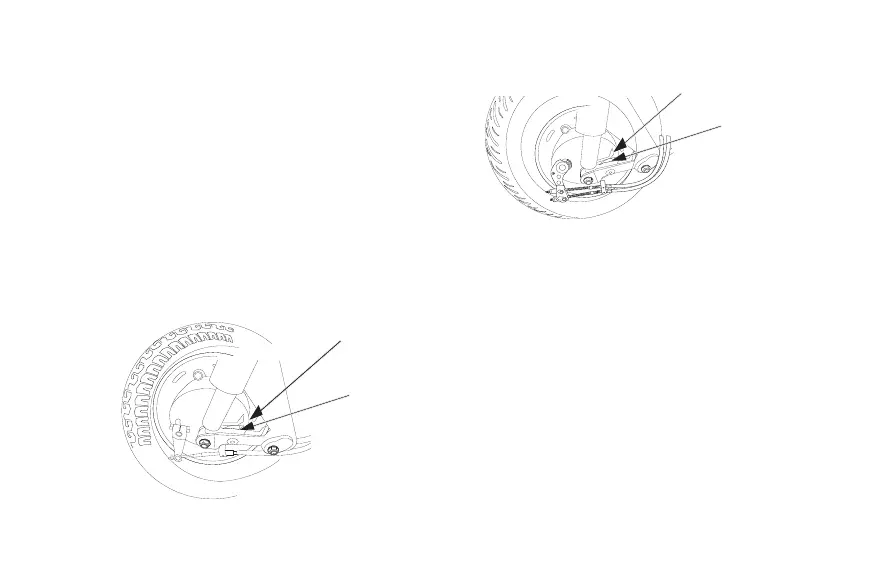

Incase of Activa (Standard)
(10)
(9)
Incase of Activa (Deluxe)
3. Adjust the brake (page 14 - 16).
4. After installing the wheel, apply the
brake several times and then check if
the wheel rotates freely. Recheck the
wheel if the brake drags or if the wheel
does not rotate freely.
If a torque wrench was not used for
installation, see your Honda dealer as
soon as possible to verify proper
assembly. Improper assembly may
lead to loss of braking capacity.
(10)
(9)
(9) Tang ¼VSax½
(10) Slot ¼LykV½
