Adjusting the Clutch and Brake
Levers

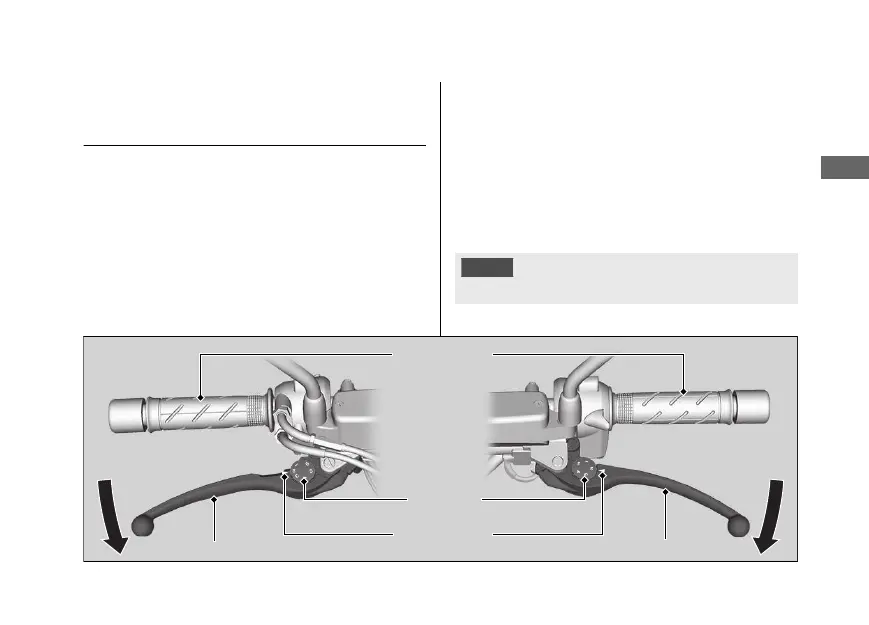

You can adjust the distances between the tip
of the clutch lever and handle grip, and
between the tip of the brake lever and
handle grip.
#
Adjustment method
Turn the adjuster until the numbers align with
the index mark while pushing the lever
forward in the desired position.
After adjustment, check that the levers
operate correctly before riding.
NOTICE
Do not turn the adjuster beyond its natural limit.
20170224170119_32MGC6510_eng_BOOK Page 88 Friday, February 24 2017 17:08:26 JST
Other Adjustments u Adjusting the Clutch and Brake Levers
Maintenance
85
Handle grip
Adjuster
Index mark
Clutch lever
Forward
Forward
Brake lever
