520
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the motor
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

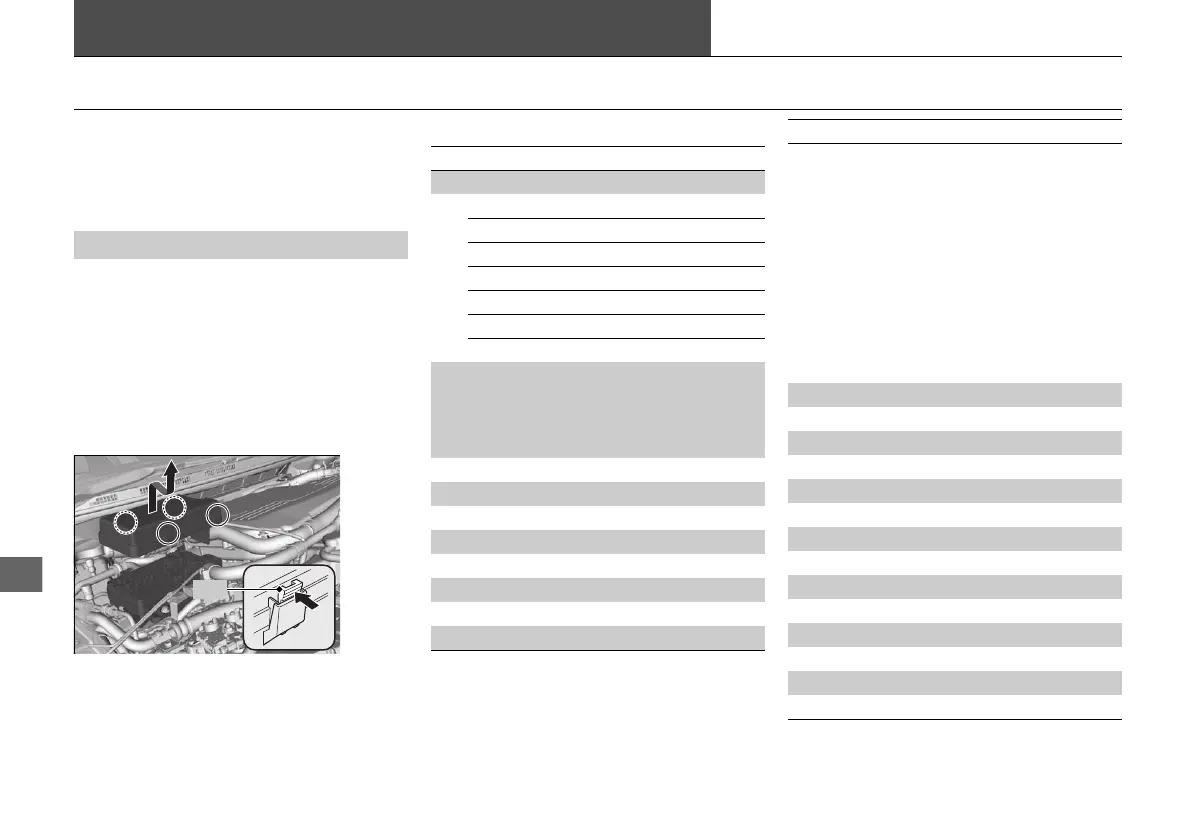

Located near the windshield washer
reservoir. Push the tabs to open the box.
■
Motor Compartment Fuse Box
■
Circuit protected and fuse rating
Circuit Protected Amps
1 BATTERY 200 A
2
EPS 70 A
ESB 40 A
ABS/VSA_FSR 20 A
SUB FUSE BOX 4 40 A
P-ACT 30 A
− −
H/L LO MAIN 30 A
3
WIPER MOTOR 1 30 A
WIPER MOTOR 2 30 A
IG MAIN 1 30 A
IG MAIN 2 30 A
4 HAZARD 10 A
5 IGB 15 A
6 IG CRASH 10 A
7 IGA 7.5 A
8 P-ACT_DRV 7.5 A
9 SHIFTER 7.5 A
10 STOP LIGHT 7.5 A
11 VBU 7.5 A
12
RFC 60 A
FUSE BOX MAIN 3 50 A
FUSE BOX MAIN 1 60 A
H/L HI MAIN 40 A
PREMIUM AUDIO 30 A
FUSE BOX MAIN 2 40 A
ABS/VSA MOTOR 40 A
−−
SMALL MAIN 20 A
SUB FUSE BOX 2-1 40 A
13 HEATER MOTOR 40 A
14 REAR DEFROSTER 40 A
15 BATT FAN 15 A
16 BATT SNSR 7.5 A
17 H2 PMP 30 A
18 A/C MAIN/DRL 10 A
19 EGR PMP 20 A
20 BATT SNSR (IR) 10 A
21 BACK UP 10 A
22 AUDIO 15 A
23 IGB LEAK SNSR 5 A
24 R H/L LO 7.5 A
25 L H/L LO 7.5 A
26 IGB ECU 5 A
Circuit Protected Amps
21 CLARITY FCV CSS-31TRT6400_02.book 520 ページ ２０２０年９月２５日 金曜日 午後３時１５分
To Next Page
