CAUTION

The muffler becomes very hot during operation and

remains hot for a while after stopping the engine.

Be careful not to touch the muffler while it is hot.

Allow it to cool before proceeding.

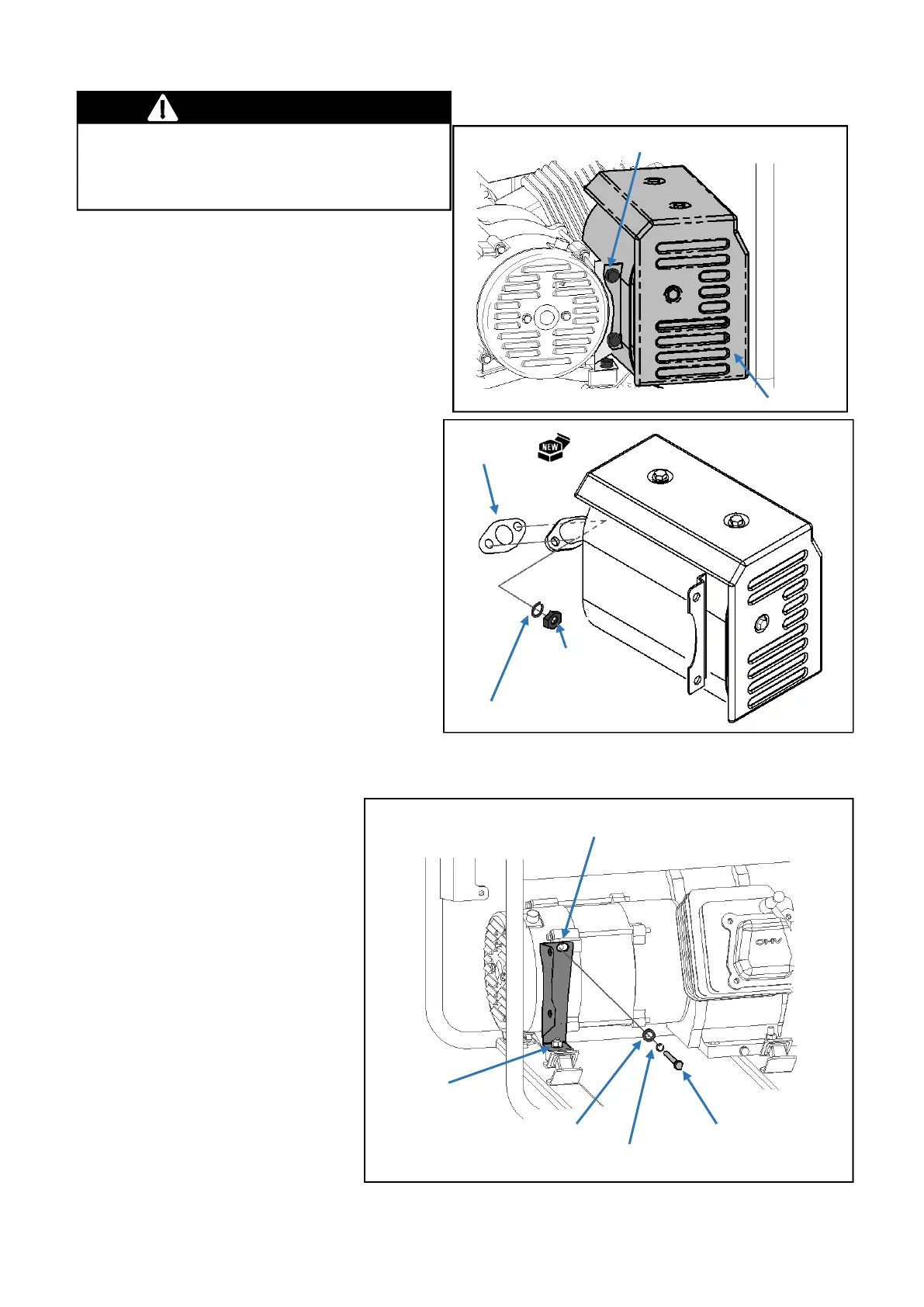

3.2.3 MUFFLER

1) Remove the Muffler.

Bolt (M8-16L) (2)

2) Remove the Muffler.

Exhaust pipe mount nut M8 (2)

Lock washer (M8) ‘(2)

Gasket cannot be reused.

Replace with new.

3) Remove the Muffler bracket.

Muffler bracket mount bolt (M6-16L) (1)

Flat washer (M6) (1)

Lock washer (M6) (1)

Nut (M8) (1)

Bolt

Muffler

Gasket

Lock washer

Exhaust pipe

mount Nut

Nut M8

Lock washer

Muffler bracket

mount bolt

Muffler bracket

Flat washer
