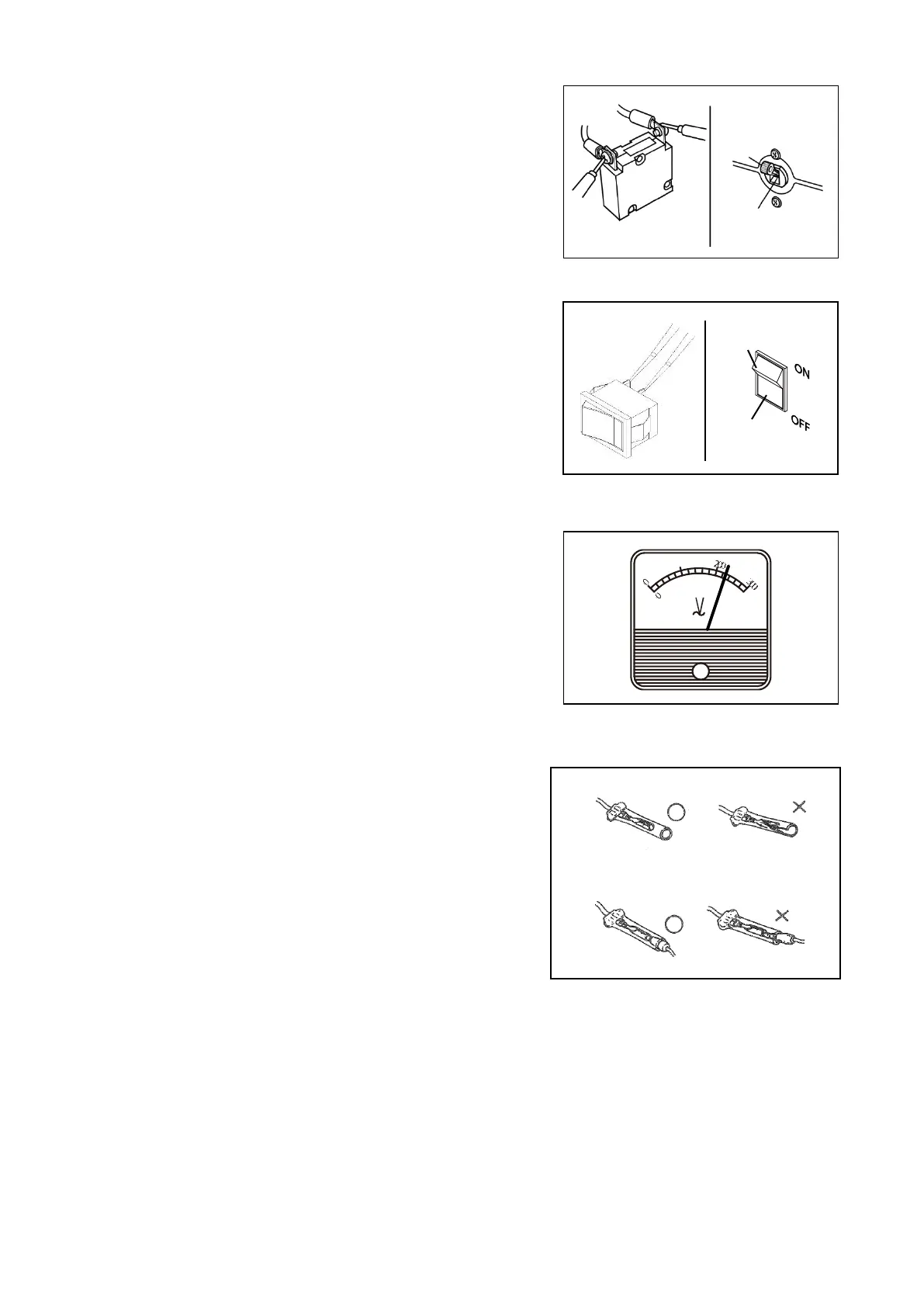

4-9. CHECKING OTHER ELECTRICAL
Circuit breaker inspection
There should be continuity between the terminals
with the circuit breaker in the ON position and no
continuity with the circuit breaker in the OFF
position.
Switch inspection
There should be continuity between the terminals
with the switch in the ON position and no continuity
with the circuit switch in the OFF position.
Voltmeter inspection
Check the position to the pointer of Voltmeter.
Pointer position
120V ： 110V to 130V.
220V ： 210V to 230V.
230V ： 220V to 240V.
Terminal
Make sure that the connector does not break the
cover.
Check that the female terminal does not open too
much.
If rusting occurs on the terminals, correct with sand
paper before connecting.
