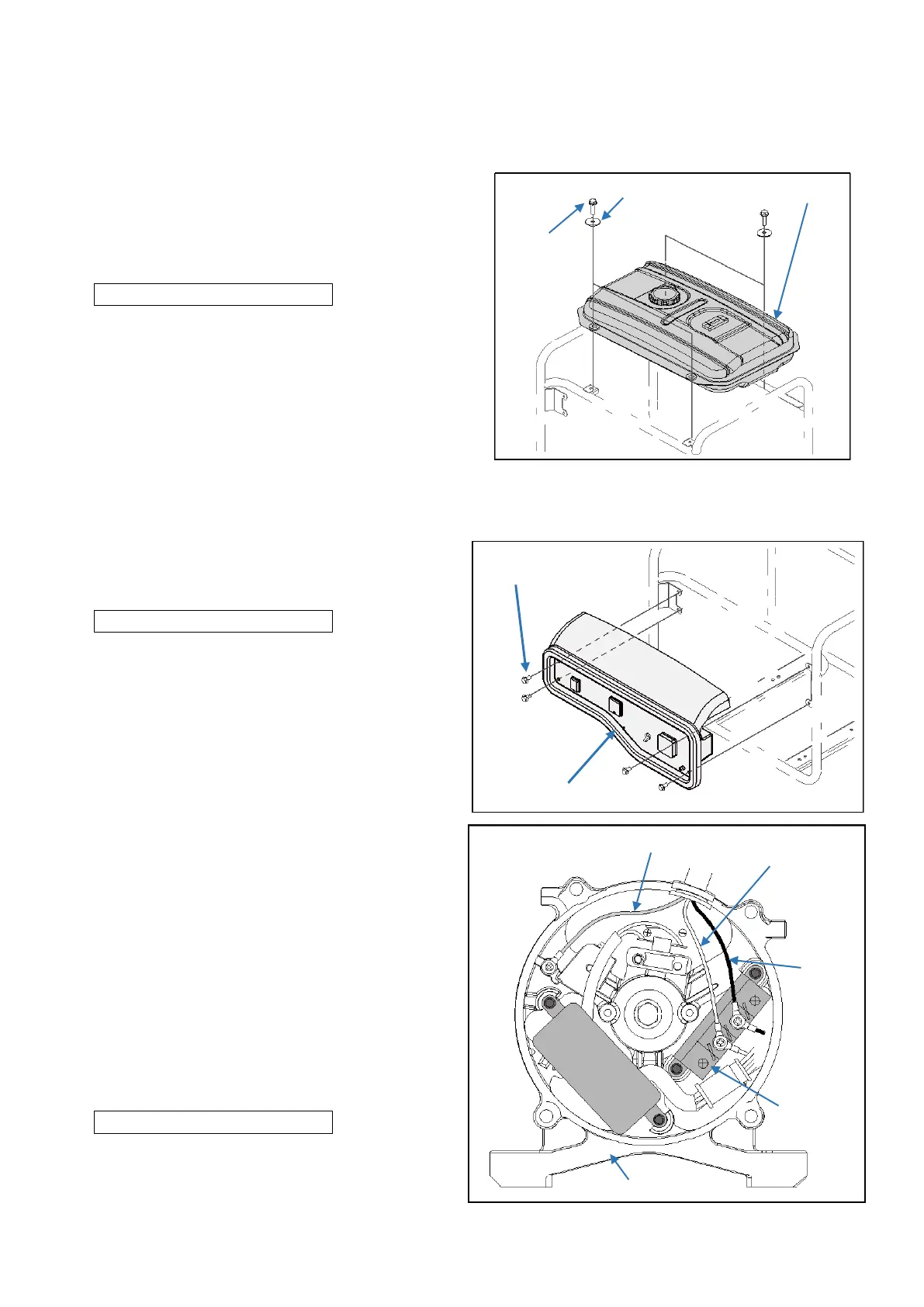

3.3.6 FUEL TANK
1) Shut the fuel valve and discharge fuel from carburetor.
2) Install the fuel tank.
3) Connect rubber pipe from the fuel valve.
Bolt (M6-25L) (4)
Washer (M6) (4)
Tightening torque: 7.0 N•m
3.3.7 CONTROL PANEL AND CONTROL BOX
1) Install the control panel.
Bolt (M6-20L) (4)
Tightening torque: 7.0 N•m
2) Install the wiring from the control panel to
the alternator.
3) Install the Black wire and White wire
from terminal block.
4) Install the Green/Yellow wire from
bracket (2).
Bolt (M5-12L) (1)
Tightening torque: 4.0 N•m
